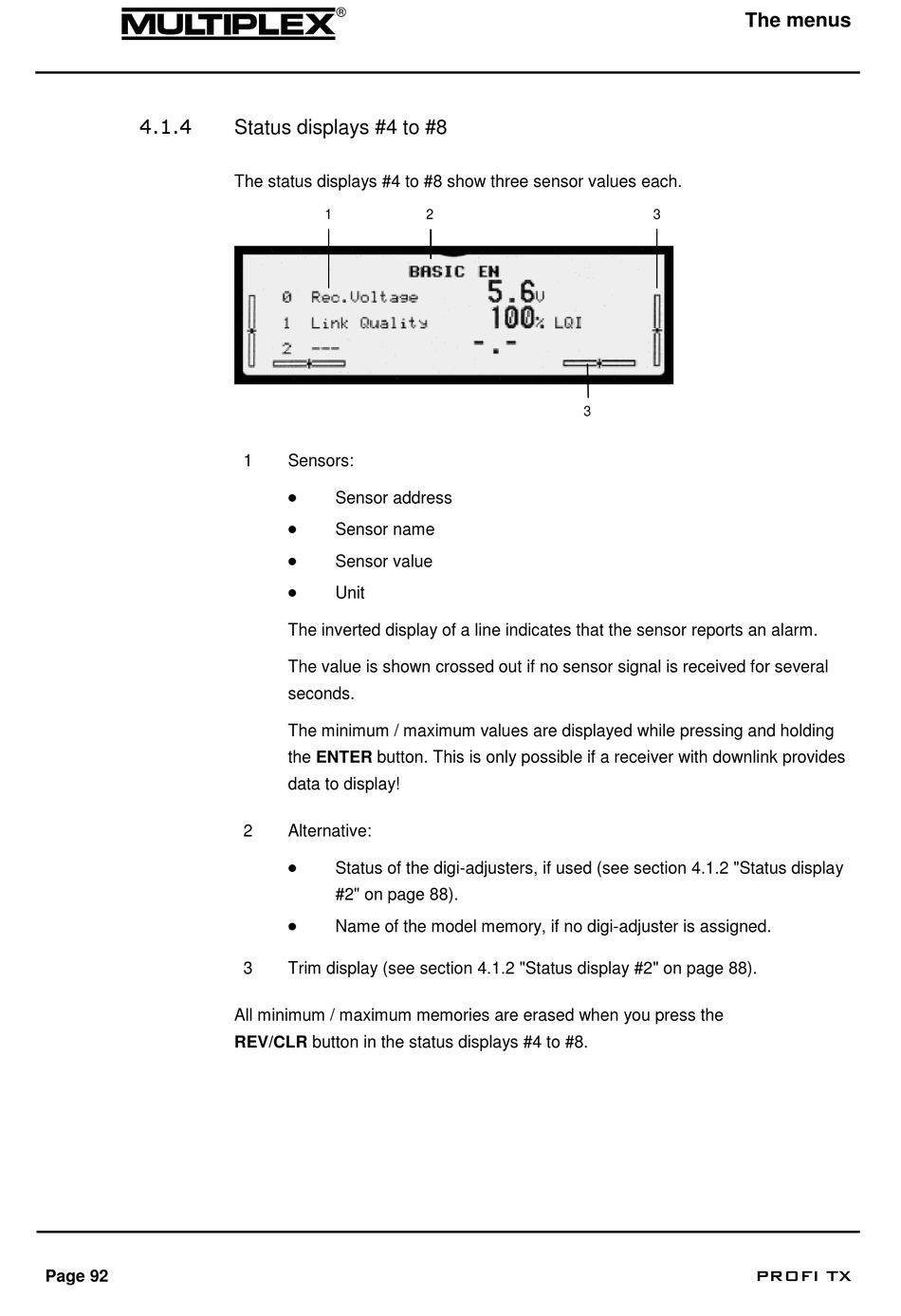

Status displays #4 to #8

The status displays #4 to #8 show three sensor values each.
1
4
2
1 Sensors:

Sensor address

Sensor name

Sensor value

Unit
The inverted display of a line indicates that the sensor reports an alarm.
The value is shown crossed out if no sensor signal is received for several
seconds.
The minimum / maximum values are displayed while pressing and holding
the ENTER button. This is only possible if a receiver with downlink provides
data to display!
2 Alternative:

Status of the digi-adjusters, if used (see section 4.1.2 "Status display
#2" on page 88).

Name of the model memory, if no digi-adjuster is assigned.
3 Trim display (see section 4.1.2 "Status display #2" on page 88).
All minimum / maximum memories are erased when you press the
REV/CLR button in the status displays #4 to #8.
