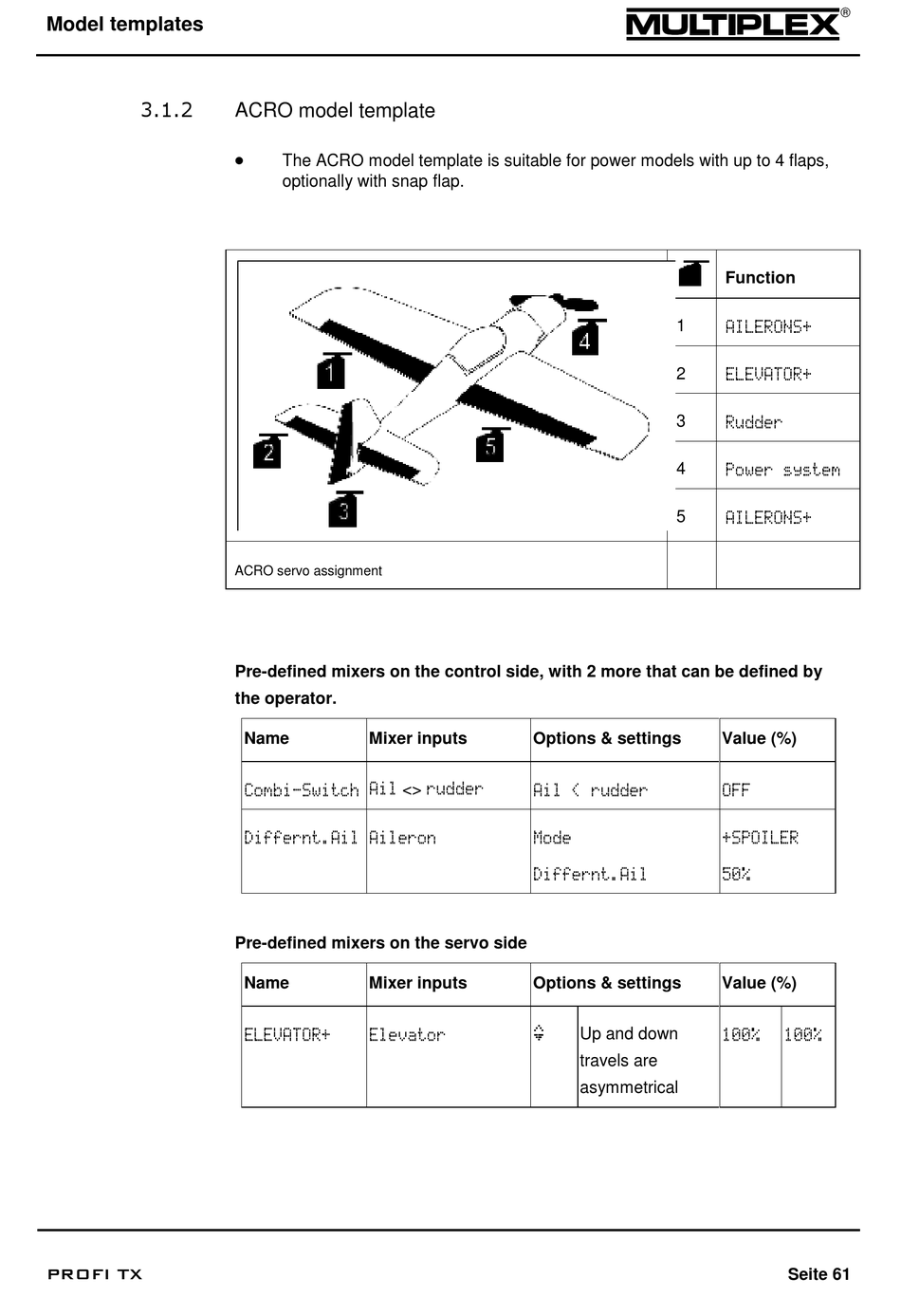

Acro Model Template - Multiplex Profi TX Operating Instructions Manual

Model templates
3.1.2
Figure 9:
PROFI TX

ACRO model template


The ACRO model template is suitable for power models with up to 4 flaps,
optionally with snap flap.
ACRO servo assignment
Pre-defined mixers on the control side, with 2 more that can be defined by
the operator.
Name Mixer inputs
Combi-Switch Ail <> rudder
Differnt.Ail Aileron
Pre-defined mixers on the servo side
Name Mixer inputs
ELEVATOR+ Elevator
1
2
3
4
5
Options & settings
Ail < rudder
Mode
Differnt.Ail
Options & settings
š
Up and down
travels are
asymmetrical
Function
AILERONS+
ELEVATOR+
Rudder
Power system
AILERONS+
Value (%)
OFF
+SPOILER
50%
Value (%)
100% 100%
