DANGER
Because gasoline is highly flammable, use cau-
tion when storing or handling it. Do not smoke
while filling the fuel tank. Do not fill fuel tank
while engine is running, hot or when machine is
in an enclosed area. Always fill fuel tank outside
and wipe up any spilled fuel before starting the
engine. Store fuel in a clean, safety- -approved
container and keep cap in place. Use gasoline
for the engine only; not for any other purpose.
Check Fuel Lines and Connections
Check fuel lines and connections periodically as recom-
mended in the Operator's Manual. Check lines for dete-
rioration, damage, leaks or loose connections. Replace
hoses, clamps and connections as necessary.
Drain and Clean Fuel Tank
Drain and clean the fuel tank if the fuel system becomes
contaminated or if the machine is to be stored for an ex-
tended period.
To clean fuel tank, flush tank out with clean solvent.
Make sure tank is free of contaminates and debris.
Fuel Tank Removal
1. Park machine on a level surface, stop engine, en-
gage parking brake and remove key from the ignition
switch.
2. Use a fuel transfer pump to remove fuel from the fuel
tank and into a suitable container.
3. Note routing of fuel hoses for installation purposes.
Disconnect fuel hoses from fuel standpipe and rollover
valve. Plug fuel hoses to prevent leakage or contami-
nant entry.
4. Remove fuel tank from machine using Figure 5 as a
guide.
5. Remove components from fuel tank as needed us-
ing Figure 6 as a guide.
Multi Pro 1200/1250
Fuel Tank Installation
1. Install all removed components to fuel tank using
Figure 6 as a guide.
2. Install fuel tank to machine using Figure 5 as a guide.
3. Remove plugs placed in fuel hoses during fuel tank
removal. Connect fuel hoses to fuel standpipe and rol-
lover valve. Secure fuel hoses with hose clamps.
4. Fill fuel tank.
6
7
8
1. Fuel tank
2. Fuel tank cap
3. Grommet
4. Fuel gauge
Page 3 - - 7
4
5
3

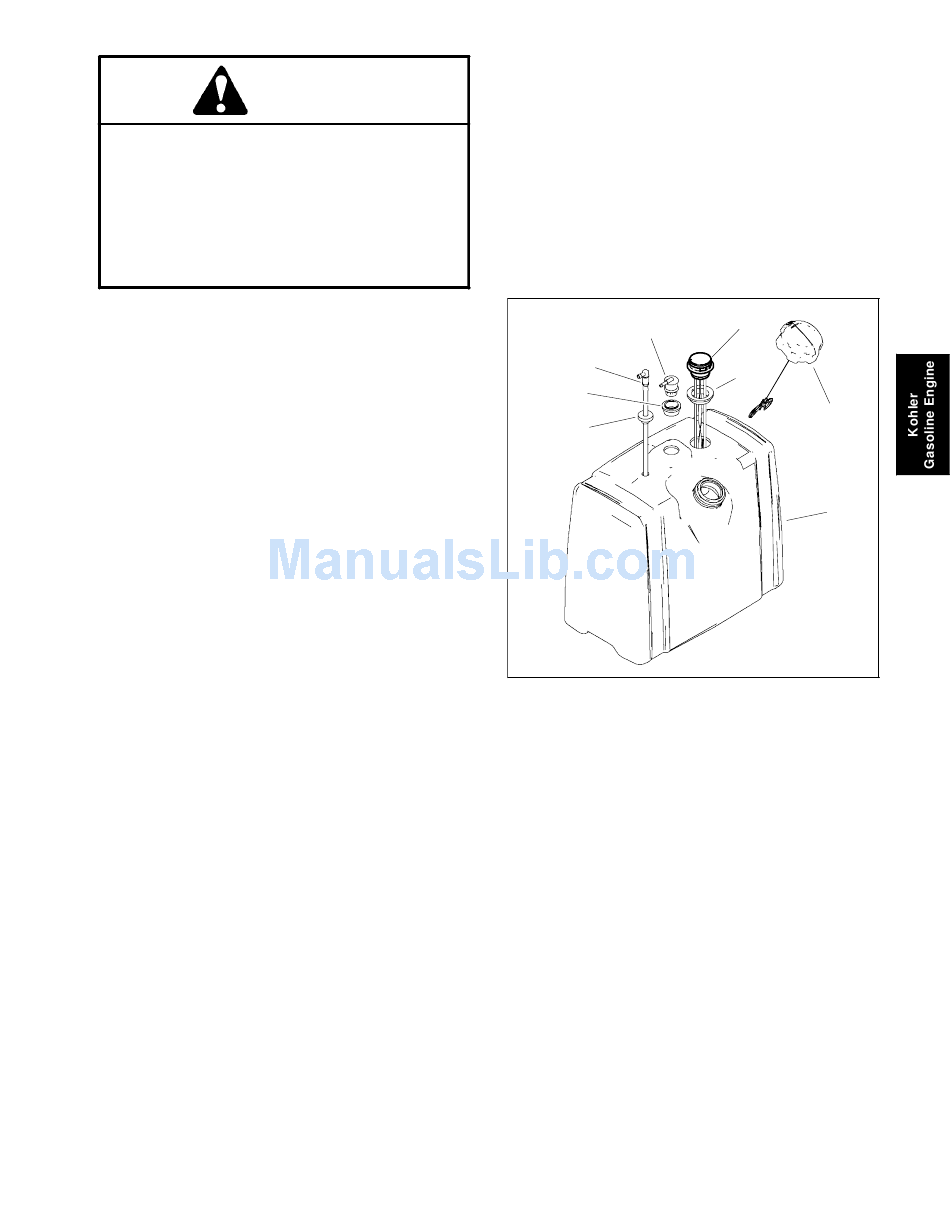

Figure 6
5. Rollover valve
6. Standpipe
7. Grommet
8. Bushing
Kohler Gasoline Engine
2
1
