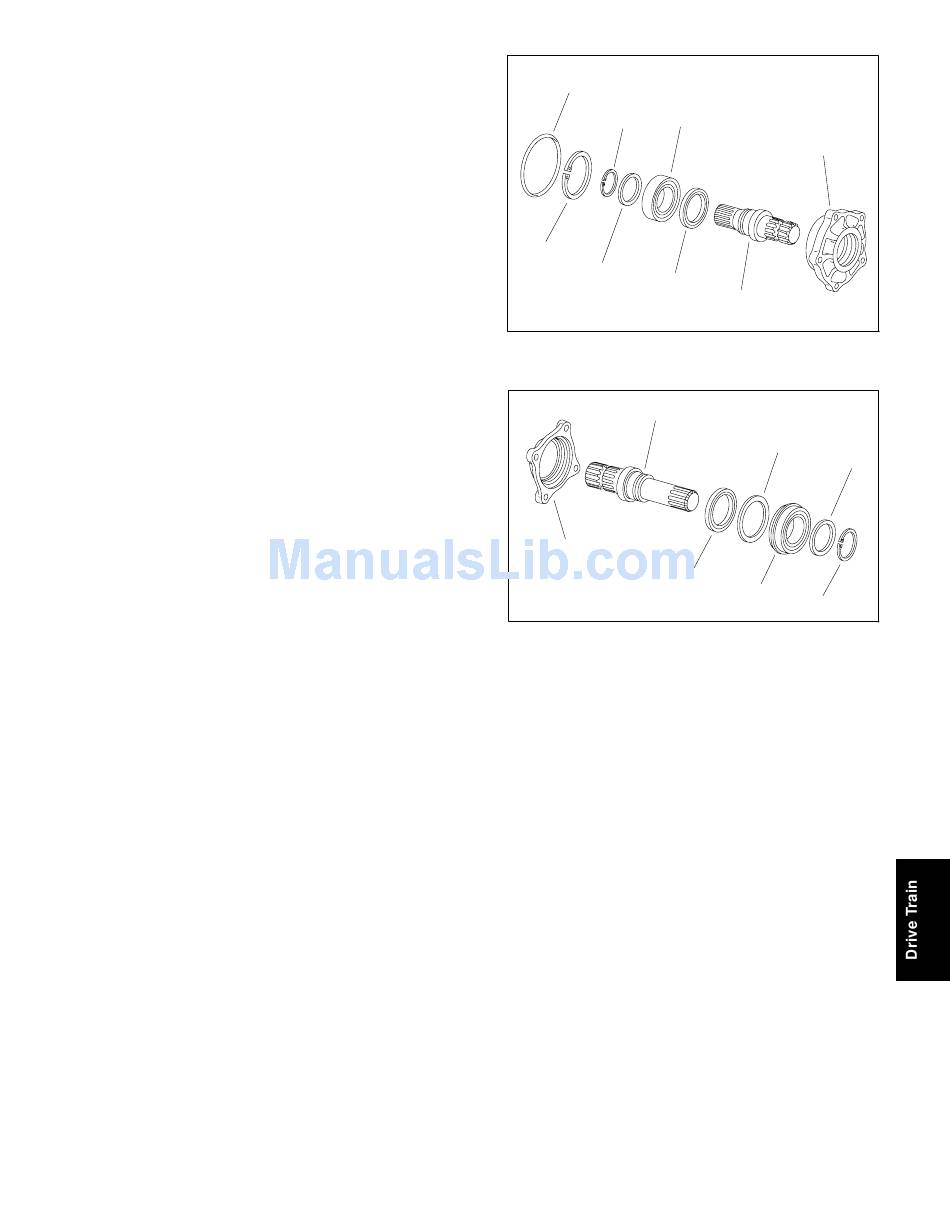

27.Disassemble differential carrier (L.H. axle shaft) as-
sembly:
A. Remove O--ring (item 1) from differential carrier
(item 8).
B. Remove retaining ring (item 2) from carrier.
C. Remove L.H. axle shaft assembly (item 3) from
carrier.
D. Remove retaining ring (item 4) and washer (item
5) from axle shaft.
E. Use a bearing puller to remove bearing (item 6)
from axle shaft.
F. Remove oil seal (item 7) from carrier (item 8).
28.Disassemble R.H. axle shaft assembly:
A. Remove R.H. axle shaft assembly (item 1) from
seal cover (item 7).
B. Remove retaining ring (item 2) and washer (item
3) from axle shaft.
C. Use a bearing puller to remove bearing (item 4)
from axle shaft. Locate and remove washer (item 6).
D. Remove oil seal (item 5) from seal cover.
