Toro Multi Pro 1200 Service Manual page 151

Disassembly (Fig. 55)
IMPORTANT: Make sure to remove and neutralize
chemicals from tank and spray components before
disassembly. Wear protective clothing, chemical re-
sistant gloves and eye protection during repair.
1. Park machine on a level surface, stop engine, en-
gage parking brake and remove key from the ignition
switch.
2. Drain spray tank (see Operator's Manual and Fig.
56).
3. Label hoses to allow proper installation after repairs
are completed. Loosen hose clamps and remove hoses
from hosebarbs that are to be disassembled.
4. Disassemble drain assembly using Figure 55 as a
guide. Discard all removed O--rings and gaskets.
Assembly (Fig. 55)
NOTE: Coat all O--rings with vegetable oil before instal-
lation to reduce the chance of damage during assembly.
1. Assemble drain assembly using Figure 55 as a
guide. Replace all removed O--rings and gaskets.
2. Using labels placed during disassembly, install
hoses to hosebarbs and secure with hose clamps.
3. Make sure that drain valve is closed and secured to
sprayer with lynch pin.
4. Check spray tank for leaks. Repair all leaks before
returning the sprayer to service.
Multi Pro 1200/1250
2
2
2

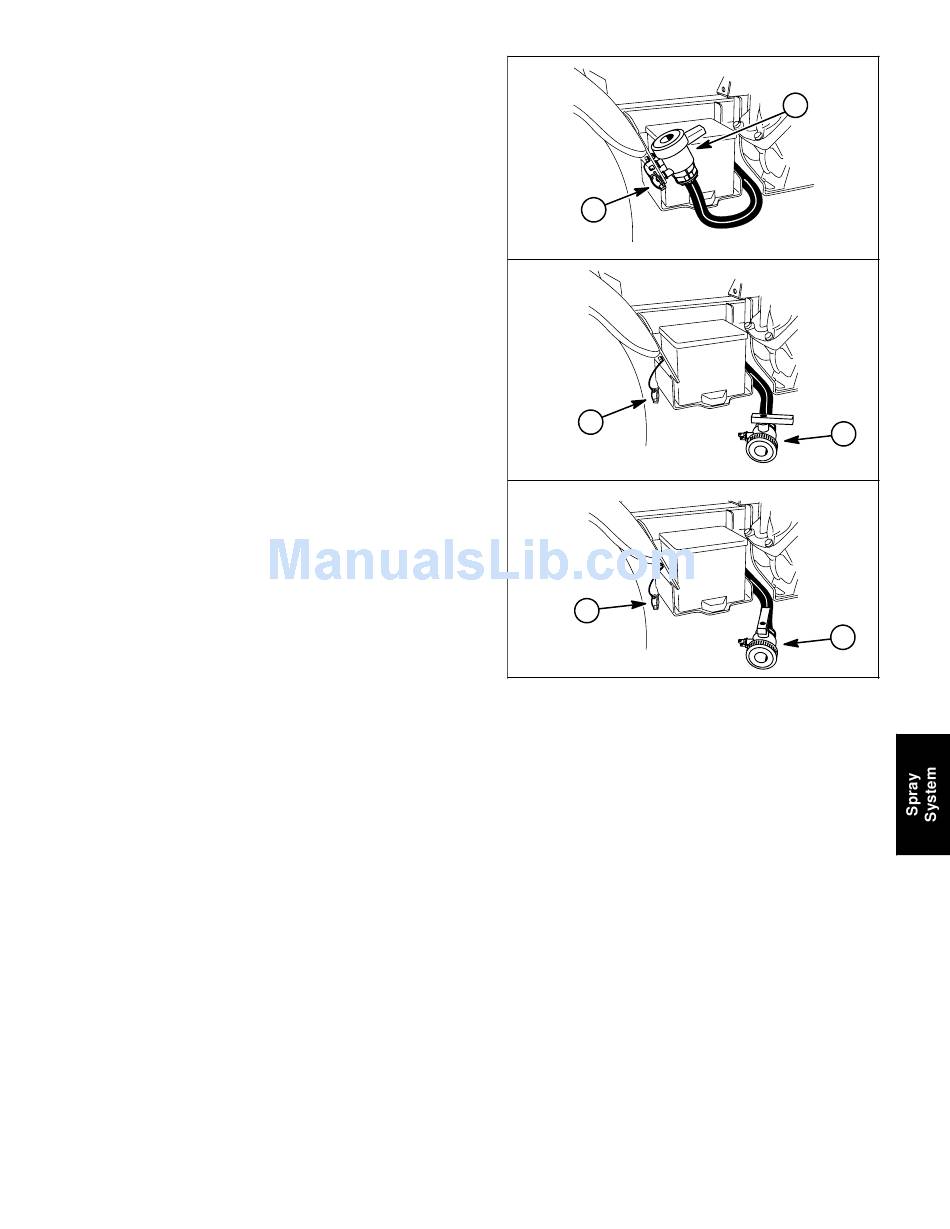

1. Drain valve (closed)
2. Lynch pin
Page 6 - - 51
1
Figure 56
3. Drain valve (open)
Spray System
1
3
