Driveshaft Universal Joint Service

1. Remove driveshaft from machine:
A. For transaxle driveshaft (Fig. 26) removal, see
Pump Drive Gearbox Removal in this section.
B. For rear axle driveshaft (Fig. 27) removal, see
Stub Axle and Driveshaft Removal in this section.
2. Remove snap rings that secure bearings.
IMPORTANT: Yokes must be supported when re-
moving and installing bearings to prevent damage.
3. Use a press to remove cross and bearings from
yokes.
4. To install new cross and bearings:
A. Apply a coating of grease to all bearing bores.
B. Press one bearing partially into yoke.
C. Insert cross into yoke and bearing.
D. Hold cross in alignment and press bearing in until
it hits the yoke.
E. Install snap ring into yoke groove to secure instal-
led bearing.
F. Place second bearing into yoke bore and onto
cross shaft. Press bearing into yoke and secure with
snap ring.
G. Repeat procedure for other yoke.
H. Grease cross until grease comes out of all four (4)
cups.
5. Install driveshaft to machine:
A. For transaxle driveshaft installation, see Pump
Drive Gearbox Installation in this section.
B. For rear axle driveshaft installation, see Stub
Axle and Driveshaft Installation in this section.
Multi Pro 1200/1250

TRANSAXLE

DRIVESHAFT
7
8
3
9
1. Cap screw (2 per yoke)
2. Splined yoke
3. Lock nut (2 per yoke)
4. Grease fitting
5. Grease fitting
10
9
8
7
4
6
1. Grease fitting
2. Seal
3. Snap ring
4. Cross and bearing kit
5. Yoke and hub
Page 7 - - 27
3
4
5
6
10
4
1

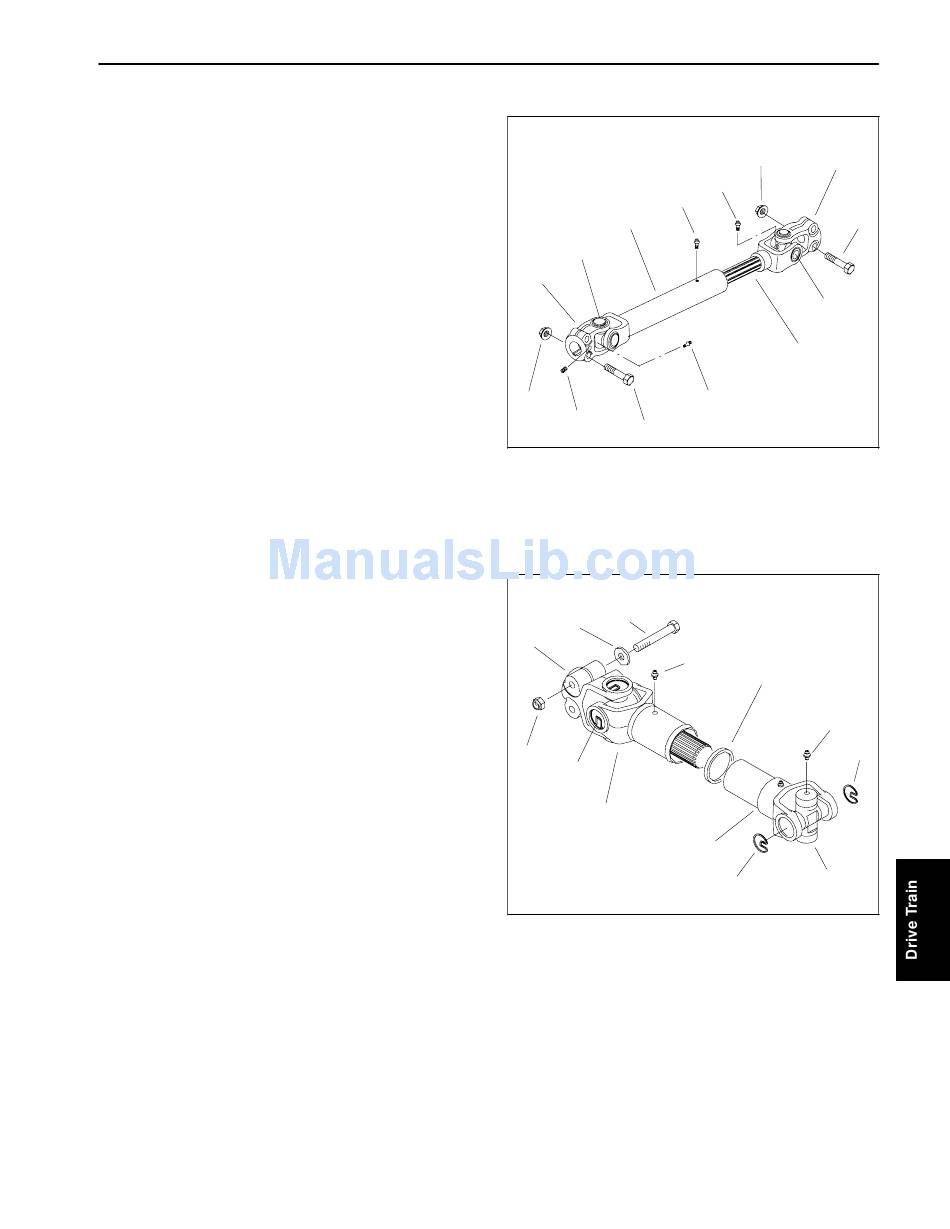

Figure 26
6. Yoke and tube
7. Cross and bearing kit
8. Keyed yoke
9. Set screw
10. Yoke and shaft
REAR AXLE
DRIVESHAFT
11
2
5
3
Figure 27
6. Shaft and tube yoke
7. Lock nut (2 per yoke)
8. Clamp yoke
9. Hardened washer
10. Cap screw (2 per yoke)
Drive Train
2
1
7
1
3
4
