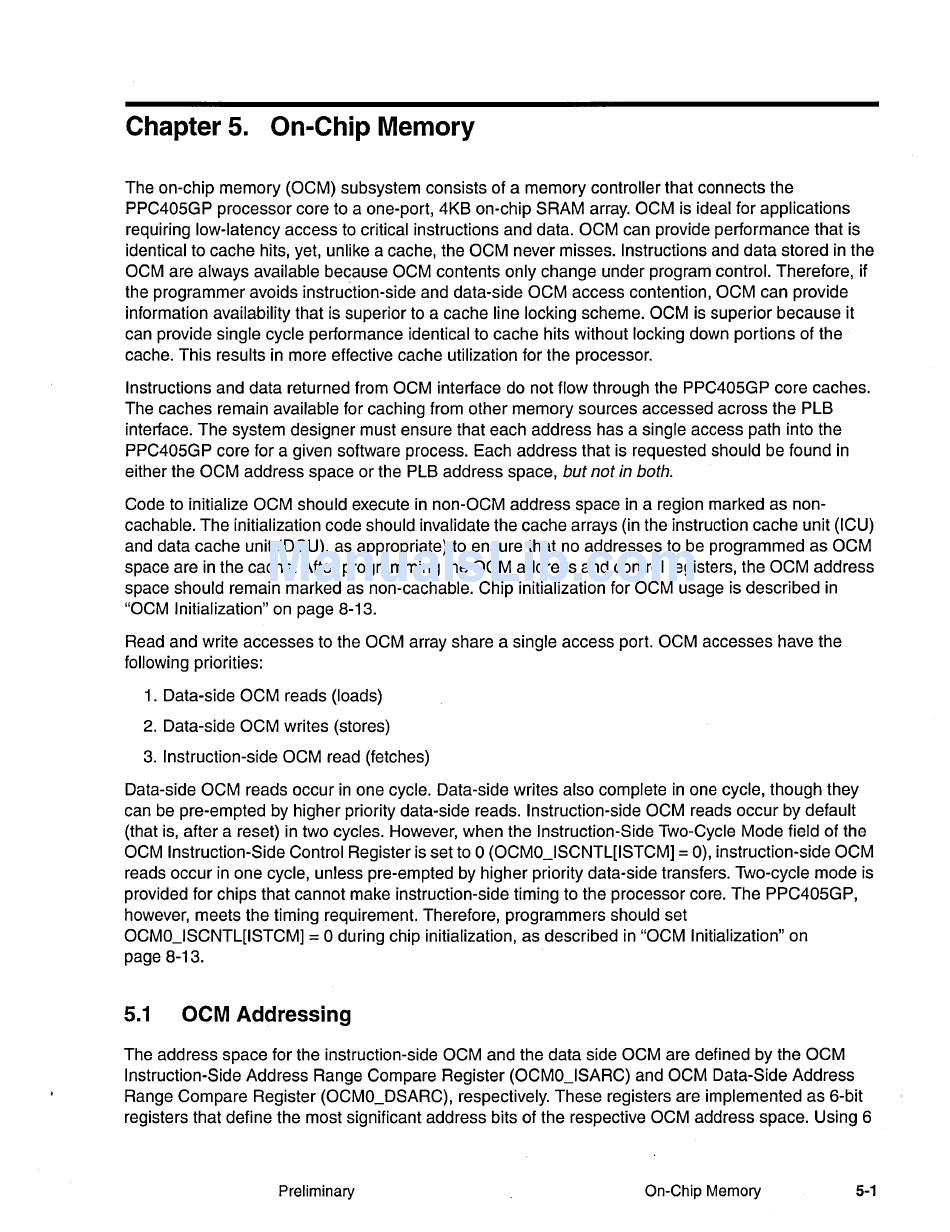

Chapter 5. On-Chip Memory
The on-chip memory (OCM) subsystem consists of a memory controller that connects the
PPC405GP processor core to a one-port, 4KB on-chip SRAM array. OCM is ideal for applications
requiring low-latency access to critical instructions and data. OCM can provide performance that is
identical to cache hits, yet, unlike a cache, the OCM never misses. Instructions and data stored in the
OCM are always available because OCM contents only change under program control. Therefore, if
the programmer avoids instruction-side and data-side OCM access contention, OCM can provide
information availability that is superior to a cache line locking scheme. OCM is superior because it
can provide single cycle performance identical to cache hits without locking down portions of the
cache. This results in more effective cache utilization for the processor.
Instructions and data returned from OCM interface do not flow through the PPC405GP core caches.
The caches remain available for caching from other memory sources accessed across the PLB
interface. The system designer must ensure that each address has a single access path into the
PPC405GP core for a given software process. Each address that is requested should be found in
either the OCM address space or the PLB address space, but not in both.
Code to initialize OCM should execute in non-OCM address space in a region marked as non-
cachable. The initialization code should invalidate the cache arrays (in the instruction cache unit (ICU)
and data cache unit (DCU), as appropriate) to ensure that no addresses to be programmed as OCM
space are in the cache. After programming the OCM address and control registers, the OCM address
space should remain marked as non-cachable. Chip initialization for OCM usage is described in
"OCM Initialization" on page 8-13.
Read and write accesses to the OCM array share a single access port. OCM accesses have the
following priorities:
1. Data-side OCM reads (loads)
2. Data-side OCM writes (stores)
3. Instruction-side OCM read (fetches)
Data-side OCM reads occur in one cycle. Data-side writes also complete in one cycle, though they
can be pre-empted by higher priority data-side reads. Instruction-side OCM reads occur by default
(that is, after a reset) in two cycles. However, when the Instruction-Side Two-Cycle Mode field of the
OCM Instruction-Side Control Register is set to 0 (OCMO_ISCNTL[ISTCM] = 0), instruction-side OCM
reads occur in one cycle, unless pre-empted by higher priority data-side transfers. Two-cycle mode is
provided for chips that cannot make instruction-side timing to the processor core. The PPC405GP,
however, meets the timing requirement. Therefore, programmers should set
OCMO_ISCNTL[ISTCM]
=
0 during chip initialization, as described in "OCM Initialization" on
page 8-13.
5.1 OeM Addressing
The address space for the instruction-side OCM and the data side OCM are defined by the OCM
Instruction-Side Address Range Compare Register (OCMO_ISARC) and OCM Data-Side Address
Range Compare Register (OCMO_DSARC), respectively. These registers are implemented as 6-bit
registers that define the most significant address bits of the respective OCM address space. Using 6
Preliminary On-Chip
Memory
5-1
