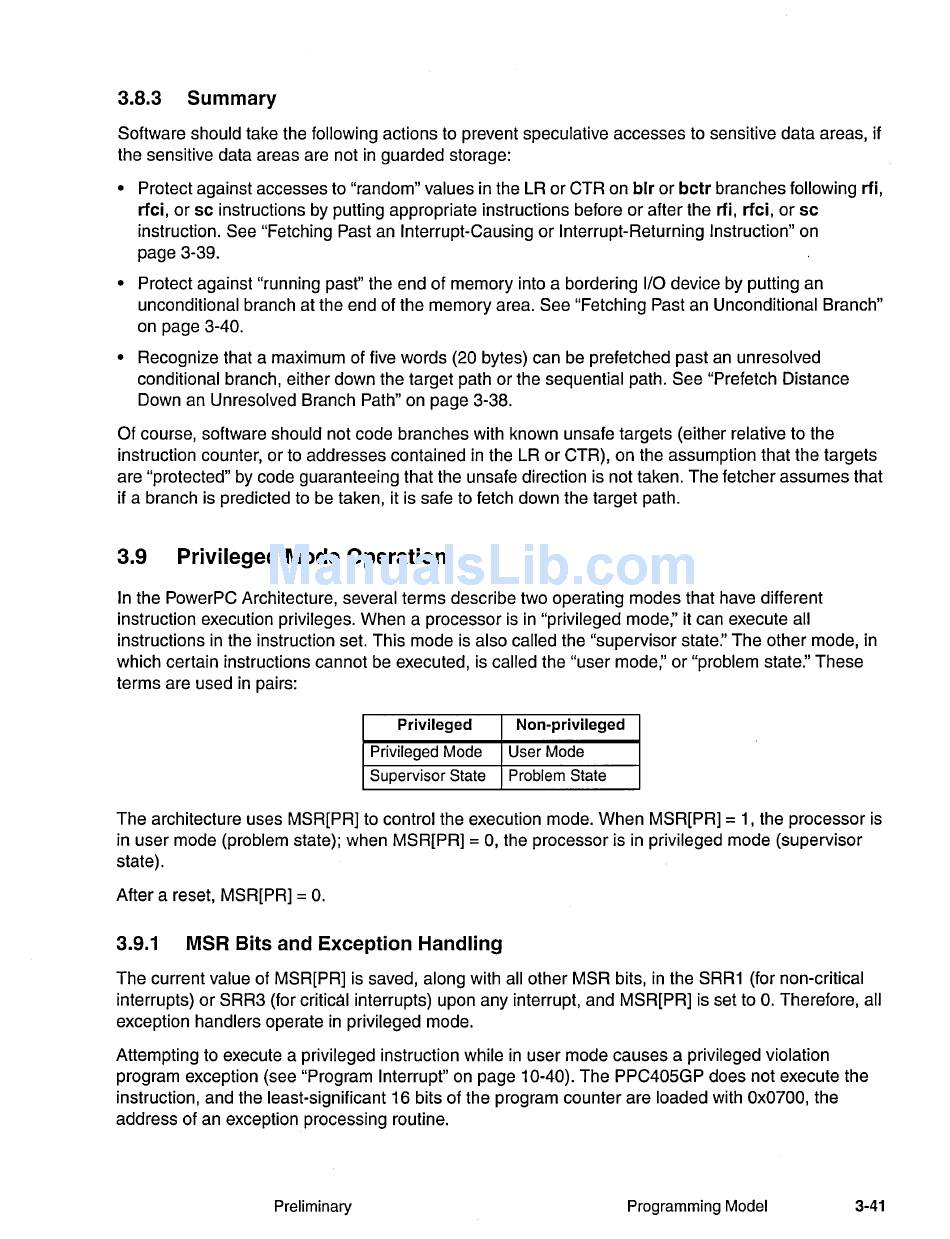

3.8.3
Summary
Software should take the following actions to prevent speculative accesses to sensitive data areas, if
the sensitive data areas are not in guarded storage:
• Protect against accesses to "random" values in the LR or CTR on blr or betr branches following rfi,
rfei, or se instructions by putting appropriate instructions before or after the rfi, rfei, or se
instruction. See "Fetching Past an Interrupt-Causing or Interrupt-Returning Instruction" on
page 3-39.
• Protect against "running past" the end of memory into a bordering liD device by putting an
unconditional branch at the end of the memory area. See "Fetching Past an Unconditional Branch"
on page 3-40.
• Recognize that a maximum of five words (20 bytes) can be prefetched past an unresolved
conditional branch, either down the target path or the sequential path. See "Prefetch Distance
Down an Unresolved Branch Path" on page 3-38.
Of course, software should not code branches with known unsafe targets (either relative to the
instruction counter, or to addresses contained in the LR or CTR), on the assumption that the targets
are "protected" by code guaranteeing that the unsafe direction is not taken. The fetcher assumes that
if a branch is predicted to be taken, it is safe to fetch down the target path.
3.9
Privileged Mode Operation
In the PowerPC Architecture, several terms describe two operating modes that have different
instruction execution privileges. When a processor is in "privileged mode," it can execute all
instructions in the instruction set. This mode is also called the "supervisor state:' The other mode, in
which certain instructions cannot be executed, is called the "user mode:' or "problem state." These
terms are used in pairs:
Privileged
Non-privileged
Privileged Mode
User Mode
Supervisor State
Problem State
The architecture uses MSR[PR] to control the execution mode. When MSR[PR]
=
1, the processor is
in user mode (problem state); when MSR[PR] = 0, the processor is in privileged mode (supervisor
state).
After a reset, MSR[PR] =
o.
3.9.1
MSR Bits and Exception Handling
The current value of MSR[PR] is saved, along with all other MSR bits, in the SRR1 (for non-critical
interrupts) or SRR3 (for critical interrupts) upon any interrupt, and MSR[PR] is set to O. Therefore, all
exception handlers operate in privileged mode.
Attempting to execute a privileged instruction while in user mode causes a privileged violation
program exception (see "Program Interrupt" on page 10-40). The PPC405GP does not execute the
instruction, and the least-significant 16 bits of the program counter are loaded with Ox0700, the
address of an exception processing routine.
Preliminary
Programming Model
3-41
