When the message arrives at Device B, Device B inserts its own timestamp 11:00:01 am (T
the packet.
When the NTP message leaves Device B, Device B inserts its own timestamp 11:00:02 am (T
into the packet.
When receiving a response packet, the local time of Device A is 10:00:03 am (T4).
At this time, Device A has enough information to calculate the following two parameters:
Delay for an NTP message to make a round trip between Device A and Device B:
Time offset of Device A relative to Device B:
Device A can then set its own clock according to the above information to synchronize its clock to that of
Device B.
For detailed information, refer to RFC 1305.

NTP Implementation Modes

According to the network structure and the position of the local Ethernet switch in the network, the local
Ethernet switch can work in multiple NTP modes to synchronize the clock.
Server/client mode

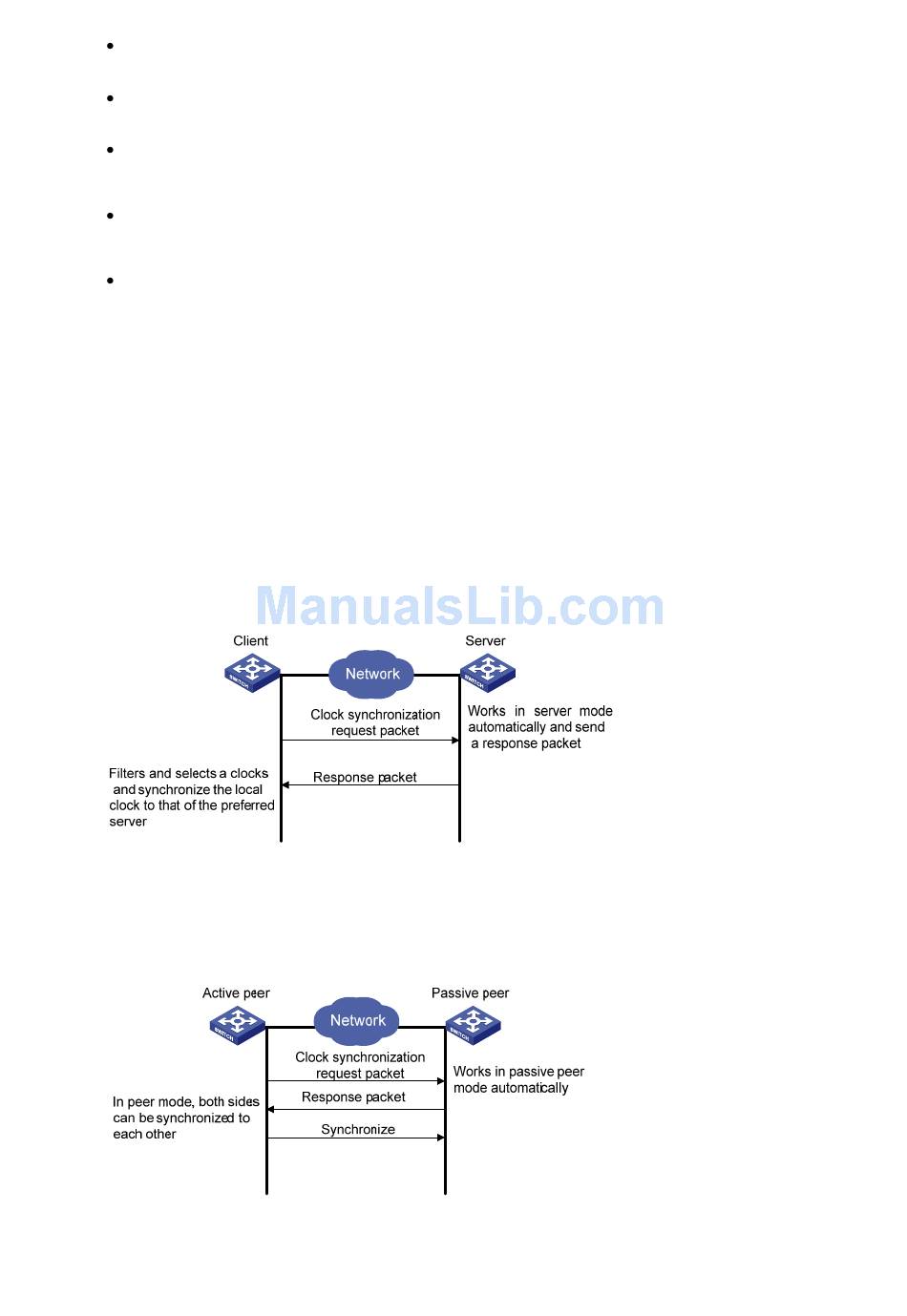

Figure 1-2 Server/client mode
Symmetric peer mode
Figure 1-3 Symmetric peer mode
Delay = (T -T )-(T -T
4 1 3
Offset = ((T -T ) + (T -T
2 1 3
1-3
).
2
))/2.
4
) into
2
)
3
