[DeviceA-Ethernet1/0/1] voice vlan mode auto
# Configure Ethernet 1/0/1 as a hybrid port.
[DeviceA-Ethernet1/0/1] port link-type hybrid
# Configure VLAN 6 as the default VLAN of Ethernet 1/0/1, and configure Ethernet 1/0/1 to permit
packets with the tag of VLAN 6.
[DeviceA-Ethernet1/0/1] port hybrid pvid vlan 6
[DeviceA-Ethernet1/0/1] port hybrid vlan 6 tagged
# Enable the voice VLAN function on Ethernet 1/0/1.
[DeviceA-Ethernet1/0/1] voice vlan enable

Voice VLAN Configuration Example (Manual Voice VLAN Assignment Mode)

Network requirements
Create a voice VLAN and configure it to operate in manual voice VLAN assignment mode. Add the port
to which an IP phone is connected to the voice VLAN to enable voice traffic to be transmitted within the
voice VLAN.
Create VLAN 2 and configure it as a voice VLAN. Set the voice VLAN to operate in security mode
The IP phone sends untagged packets. It is connected to Ethernet 1/0/1, a hybrid port. Set this port
to operate in manual voice VLAN assignment mode.
You need to add a user-defined OUI address 0011-2200-000, with the mask being ffff-ff00-0000
and the description string being "test".
Network diagram

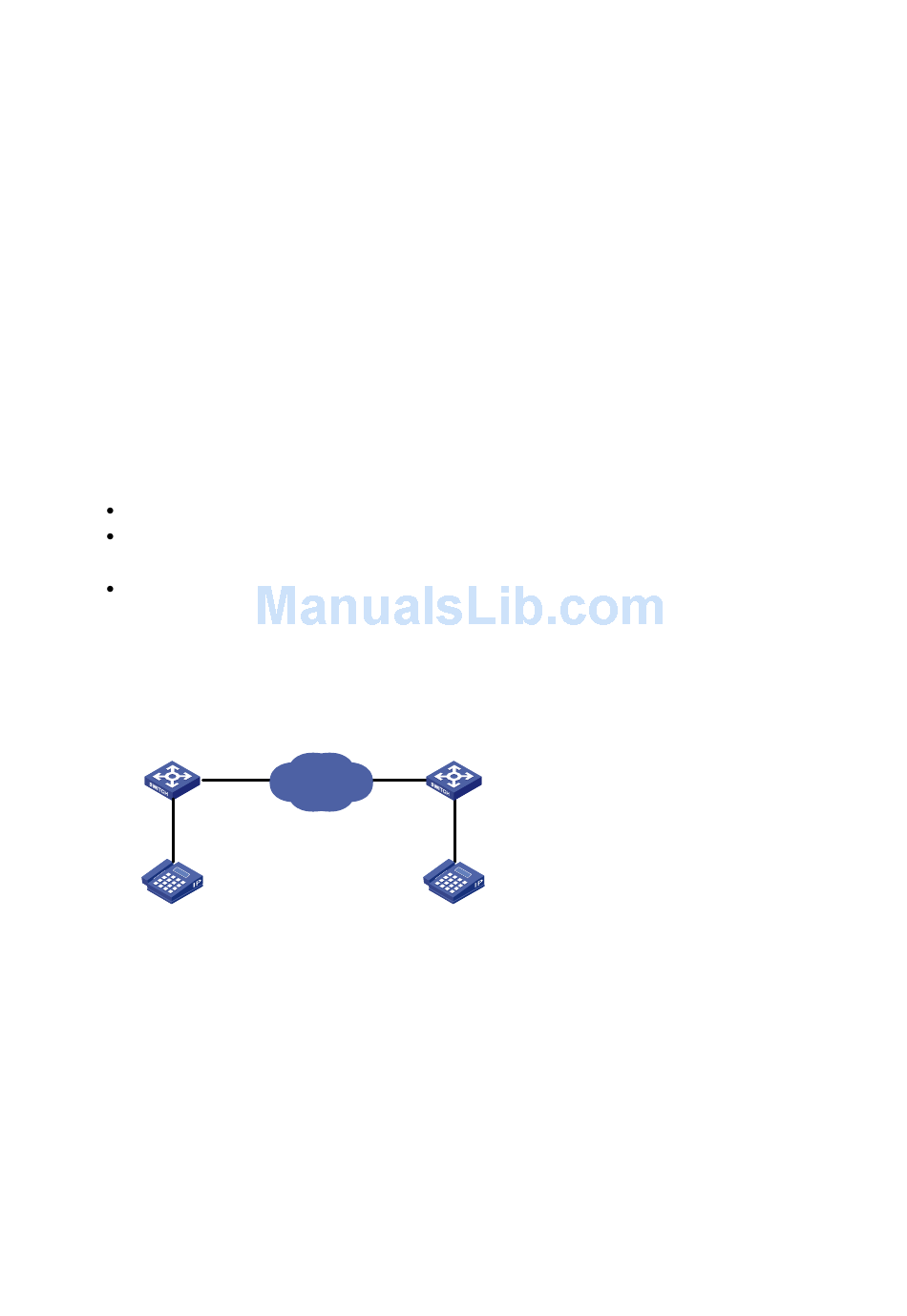

Figure 1-3 Network diagram for voice VLAN configuration (manual voice VLAN assignment mode)
Device A
VLAN2
Eth1/0/1
VLAN2
010-1001
OUI:0011-2200-0000
Mask:ffff-ff00-0000
Configuration procedure
# Enable the security mode for the voice VLAN so that the ports in the voice VLAN permit valid voice
packets only. This operation is optional. The security mode is enabled by default.
<DeviceA> system-view
[DeviceA] voice vlan security enable
# Add a user-defined OUI address 0011-2200-000 and set the description string to "test".
[DeviceA] voice vlan mac-address 0011-2200-0000 mask ffff-ff00-0000 description test
# Create VLAN 2 and configure it as a voice VLAN.
Device B
Internet
1-13
