3Com 4210 9-Port Configuration Manual page 609

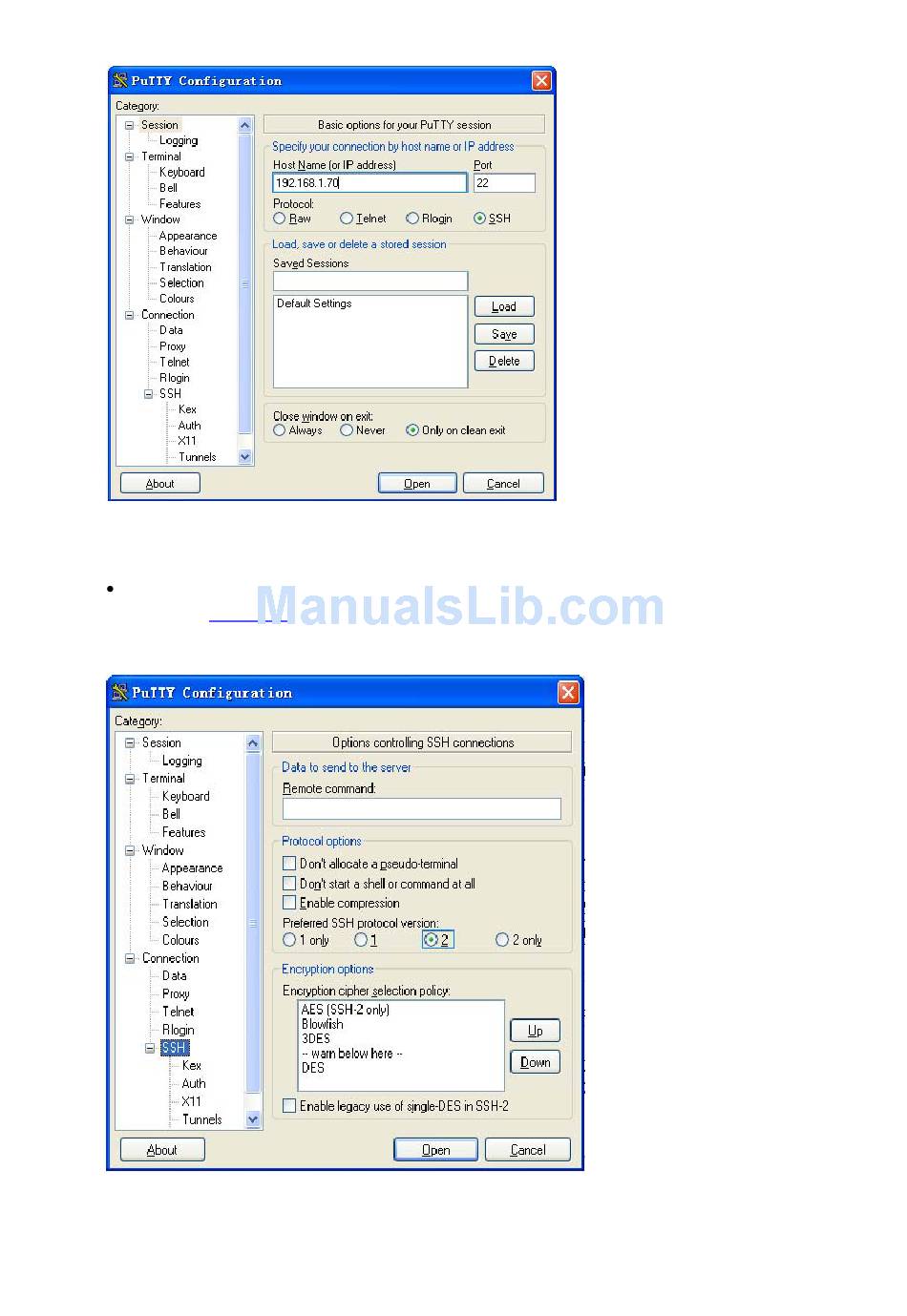

Figure 1-16 SSH client configuration interface (1)
In the Host Name (or IP address) text box, enter the IP address of the SSH server.
From the category on the left pane of the window, select Connection > SSH. The window as
shown in Figure 1-17
Figure 1-17 SSH client configuration interface (2)
Under Protocol options, select 2 from Preferred SSH protocol version. Then, click Open. If the
connection is normal, you will be prompted to enter the user name hello and the password. Once
appears.
1-28
