Remote Port Mirroring Configuration Example - 3Com 4210 9-Port Configuration Manual

Network diagram

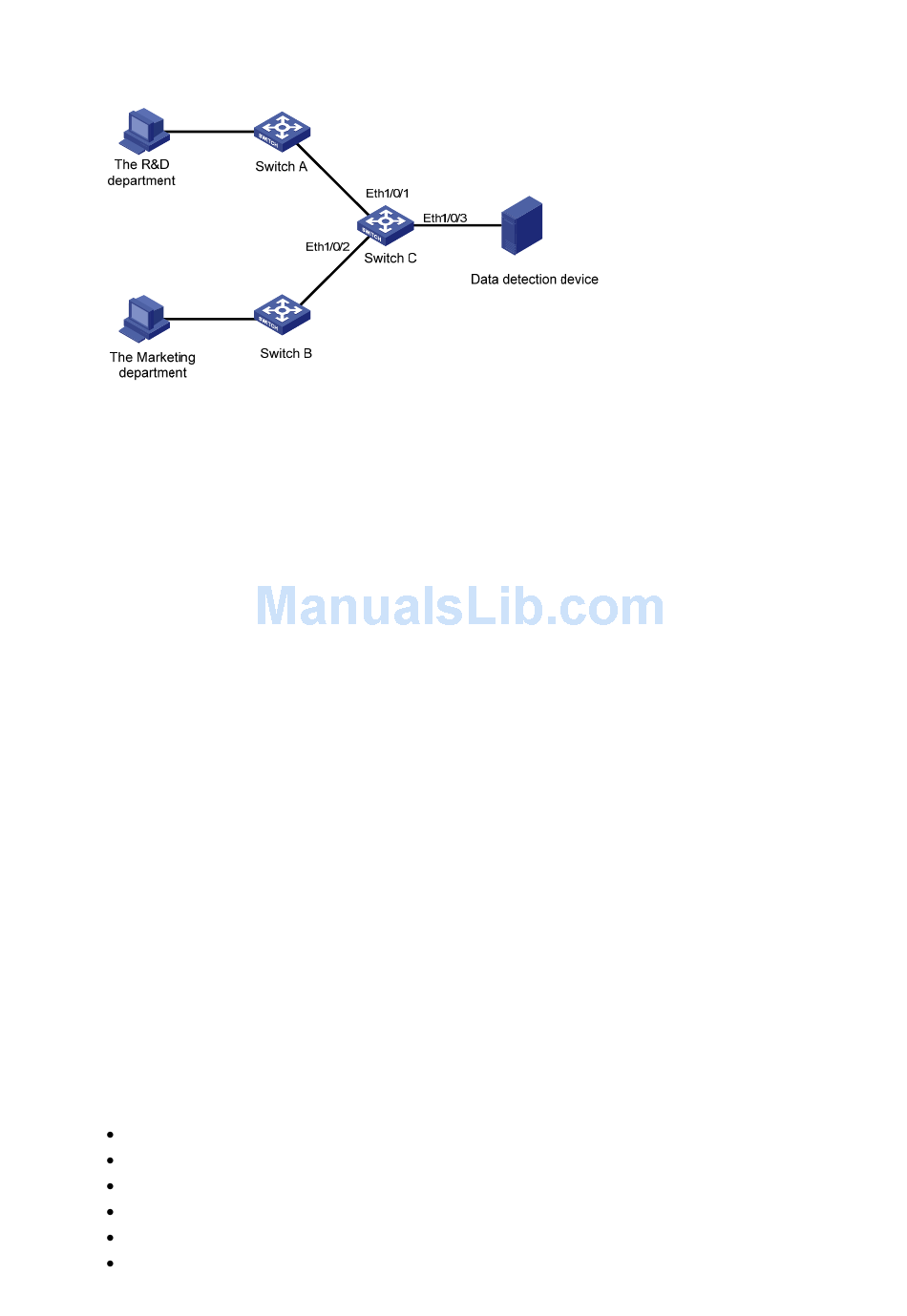

Figure 1-3 Network diagram for local port mirroring
Configuration procedure
Configure Switch C:
# Create a local mirroring group.
<Sysname> system-view
[Sysname] mirroring-group 1 local
# Configure the source ports and destination port for the local mirroring group.
[Sysname] mirroring-group 1 mirroring-port Ethernet 1/0/1 Ethernet 1/0/2 both
[Sysname] mirroring-group 1 monitor-port Ethernet 1/0/3
# Display configuration information about local mirroring group 1.
[Sysname] display mirroring-group 1
mirroring-group 1:
type: local
status: active
mirroring port:
Ethernet1/0/1
Ethernet1/0/2
monitor port: Ethernet1/0/3
After the configurations, you can monitor all packets received on and sent from the R&D department
and the marketing department on the data detection device.

Remote Port Mirroring Configuration Example

Network requirements
The departments of a company connect to each other through 3Com 4210 switches:
Switch A, Switch B, and Switch C are 3Com 4210 series switches.
Department 1 is connected to Ethernet 1/0/1 of Switch A.
Department 2 is connected to Ethernet 1/0/2 of Switch A.
Ethernet 1/0/3 of Switch A connects to Ethernet 1/0/1 of Switch B.
Ethernet 1/0/2 of Switch B connects to Ethernet 1/0/1 of Switch C.
The data detection device is connected to Ethernet 1/0/2 of Switch C.
