3Com 4210 9-Port Configuration Manual page 679

If you have chosen 19200 bps as the download baudrate, you need not modify the HyperTerminal's
baudrate, and therefore you can skip Step 4 and 5 below and proceed to Step 6 directly. In this case,
the system will not display the above information.
Following are configurations on PC. Take the HyperTerminal in Windows 2000 as an example.
Step 4: Choose [File/Properties] in HyperTerminal, click <Configure> in the pop-up dialog box, and then
select the baudrate of 115200 bps in the Console port configuration dialog box that appears, as shown
in Figure 1-1, Figure 1-2.

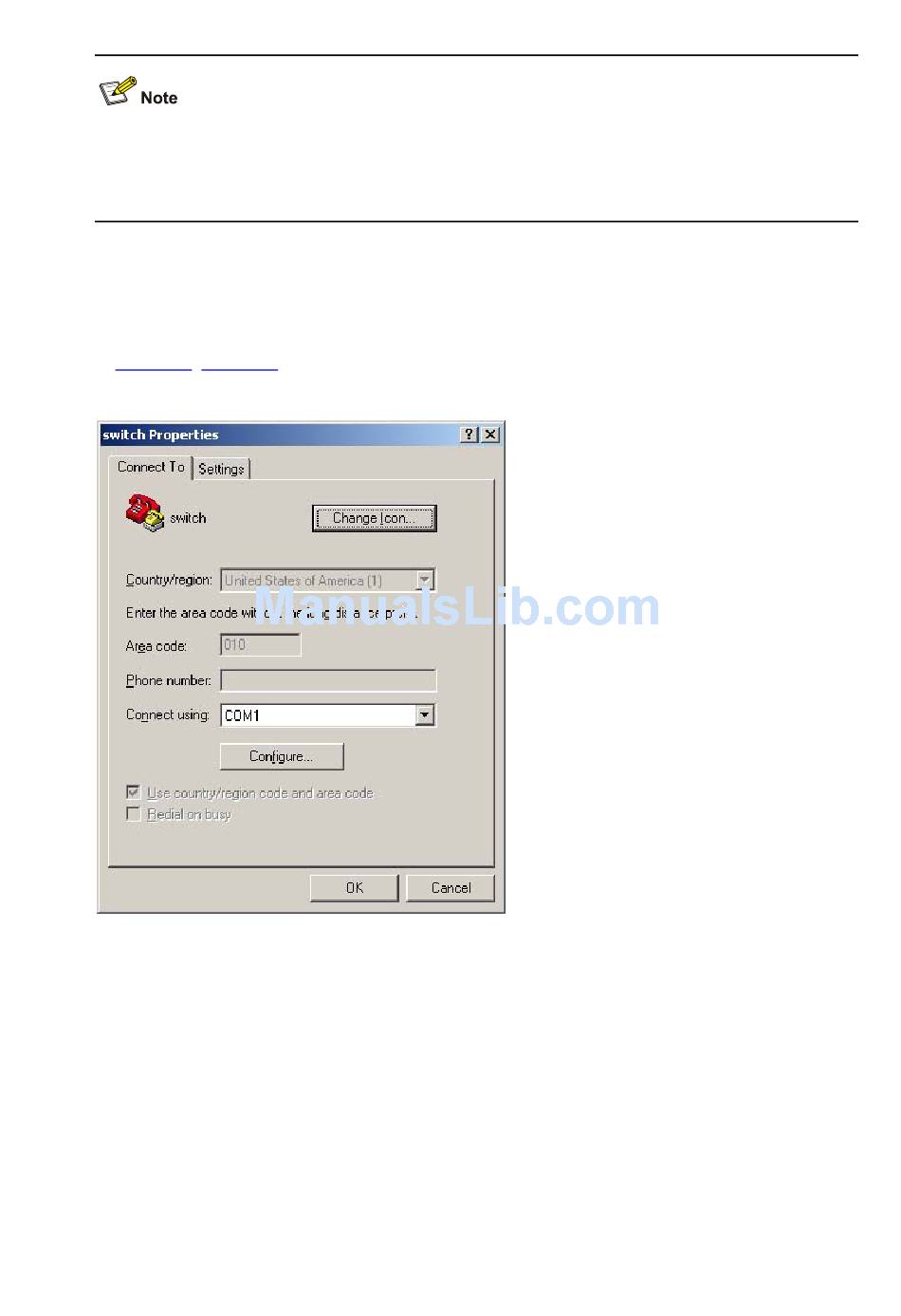

Figure 1-1 Properties dialog box
1-4
