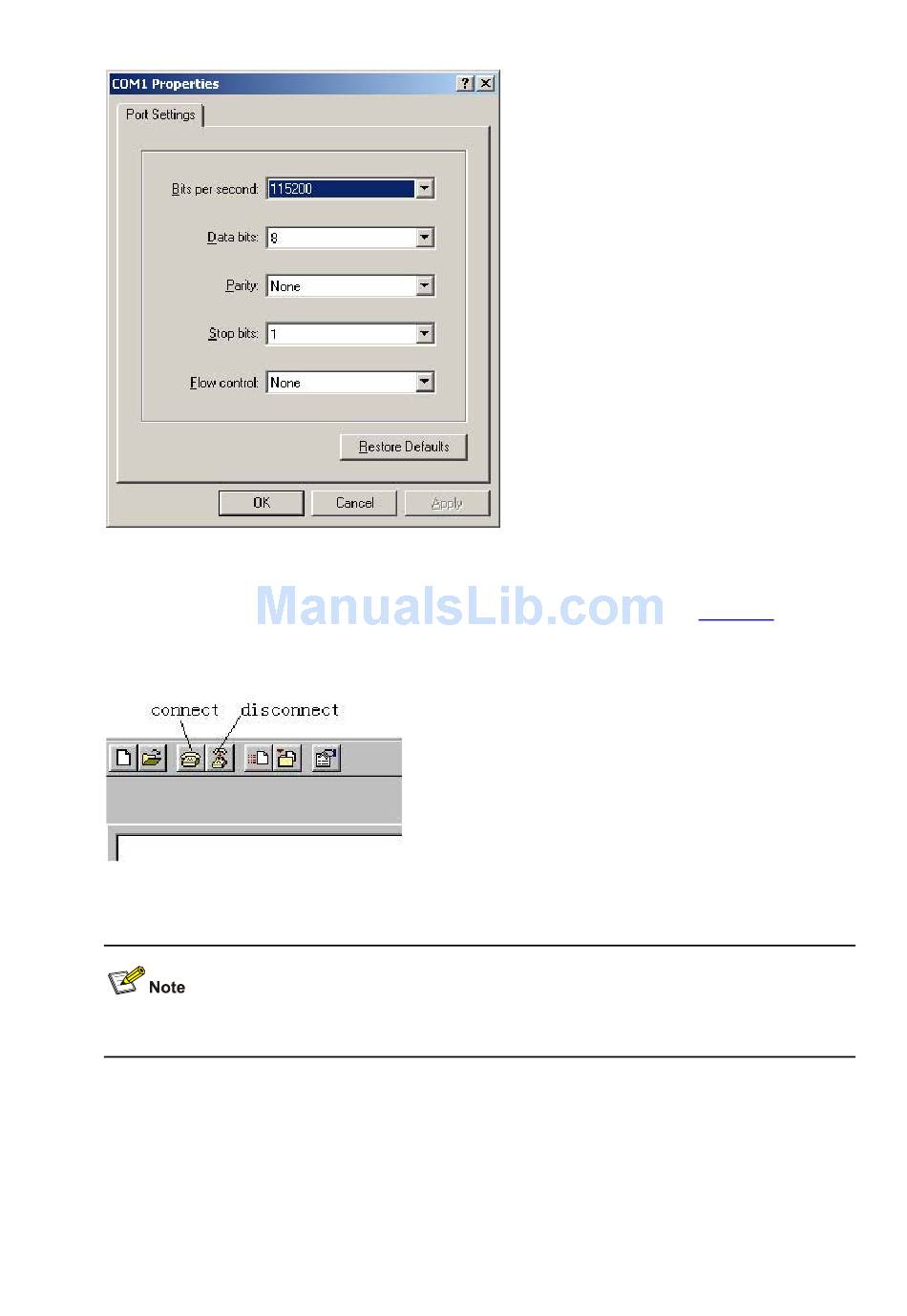

Figure 1-2 Console port configuration dialog box
Step 5: Click the <Disconnect> button to disconnect the HyperTerminal from the switch and then click
the <Connect> button to reconnect the HyperTerminal to the switch, as shown in Figure 1-3.
Figure 1-3 Connect and disconnect buttons
The new baudrate takes effect after you disconnect and reconnect the HyperTerminal program.
Step 6: Press <Enter> to start downloading the program. The system displays the following information:
Now please start transfer file with XMODEM protocol.
If you want to exit, Press <Ctrl+X>.
Loading ...CCCCCCCCCC
1-5
