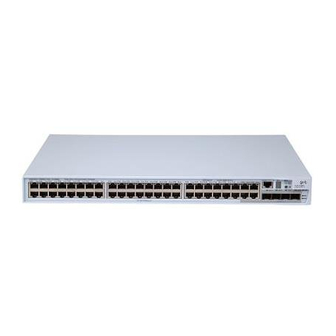

3Com 4200G Installation Manual

Switch 4200g 10g interface module

Hide thumbs Also See for 4200G:

1. XFP Interface Module

Figure 1 Appearance of an XFP interface module

Figure 2 Front panel an XFP interface module

Step 1: Put on an ESD-preventive wrist strap and verify it is properly

grounded. Then remove the XFP interface module from the package.

Step 2: Loosen the filler panel mounting screws on the rear panel of the

switch with a screwdriver and remove the filler panel.

Step 3: Hold the fastening screws on the front panel of the XFP interface

module, and gently push the module in along the slot guide rail until the

module is in close contact with the switch.

Step 4: Tighten the fastening screws with a screwdriver to secure the XFP

interface module.

3Com Switch 4200G

10G Interface Module

Installation Guide

Table of Contents

Do you have a question about the 4200G and is the answer not in the manual?

Page 1: Installation Guide
Step 4: Tighten the fastening screws with a screwdriver to secure the XFP interface module. 3Com Switch 4200G 10G Interface Module Installation Guide...
Page 2 (1): Switch (3): XFP interface module Figure 3 Installing an XFP interface module Note: (1) Store the filler panel for future use. (2) When tightening the fastening screws at both sides of the optional module with a screwdriver or an electric screwdriver, make sure that the torque is not bigger than 0.4 N-m.
Page 3: Xenpak Optical Module
2. XENPAK Optical Module 2.1 Appearance and front panel Figure 4 Appearance of a XENPAK optical module Figure 5 Front panel of a XENPAK optical module 2.2 Installation Step 1: Put on an ESD-preventive wrist strap and verify it is properly grounded.
Page 4 Figure 6 Installing a XENPAK optical module Note: (1) Retain the small cover plate for future use. (2) Do not tighten the module screws more than 0.4 Nm. (3) The switch 4200G supports hot swapping of XENPAK optical modules. 2.3 Removal Step 1: Put on an ESD-preventive wrist strap and verify it is properly grounded.
