# Configure the maximum number of ARP entries that can be learned by VLAN-interface 1 as 500.
[SwitchA-Vlan-interface1] arp max-learning-num 500
[SwitchA-Vlan-interface1] quit

ARP/IP Attack Defense Configuration Example III

Network Requirements

Host A is assigned with an IP address statically and installed with an 802.1x client.
A CAMS authentication, authorization and accounting server serves as the authentication server.
Enable ARP attack detection and IP filtering based on bindings of authenticated 802.1x clients on
the switch to prevent ARP attacks.

Network Diagram

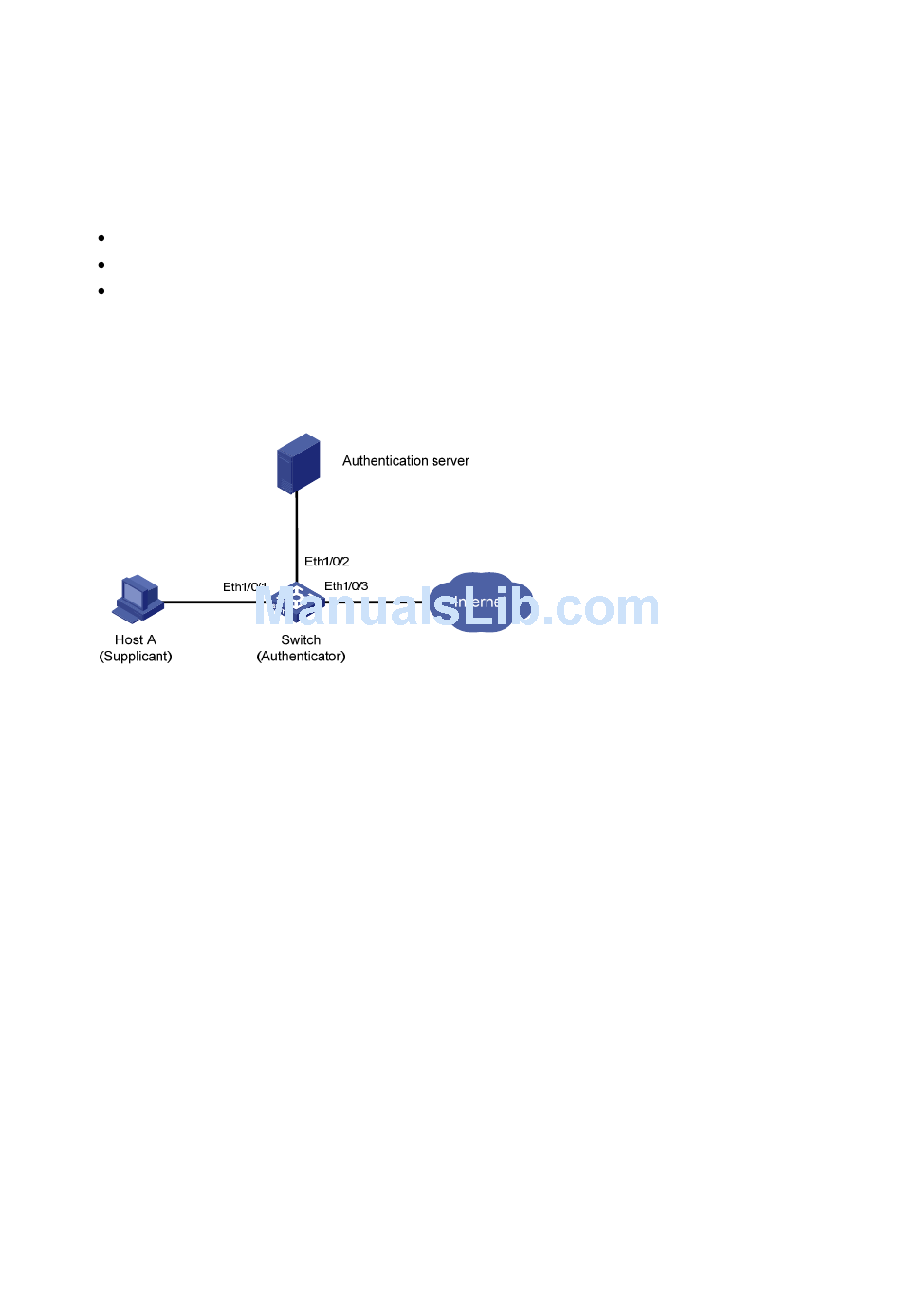

Figure 1-4 Network diagram for 802.1x based ARP/IP attack defense

Configuration Procedures

# Enter system view.
<Switch> system-view
# Enable 802.1x authentication globally.
[Switch] dot1x
# Enable ARP attack detection for VLAN 1.
[Switch] vlan 1
[Switch-vlan1] arp detection enable
[Switch-vlan1] quit
# Configure Ethernet 1/0/2 and Ethernet 1/0/3 as ARP trusted ports.
[Switch] interface Ethernet1/0/2
[Switch-Ethernet1/0/2] arp detection trust
[Switch-Ethernet1/0/2] quit
[Switch] interface Ethernet1/0/3
[Switch-Ethernet1/0/3] arp detection trust
[Switch-Ethernet1/0/3] quit
# Enable using IP-MAC bindings of authenticated 802.1x clients for ARP attack detection.
[Switch] ip source static import dot1x
