3Com 4210 9-Port Configuration Manual page 12

2) If you use a PC to connect to the console port, launch a terminal emulation utility (such as Terminal
in Windows 3.X or HyperTerminal in Windows 9X/Windows 2000/Windows XP. The following
assumes that you are running Windows XP) and perform the configuration shown in
through Figure 2-4
the PC and the console port of the switch) are configured as those listed in

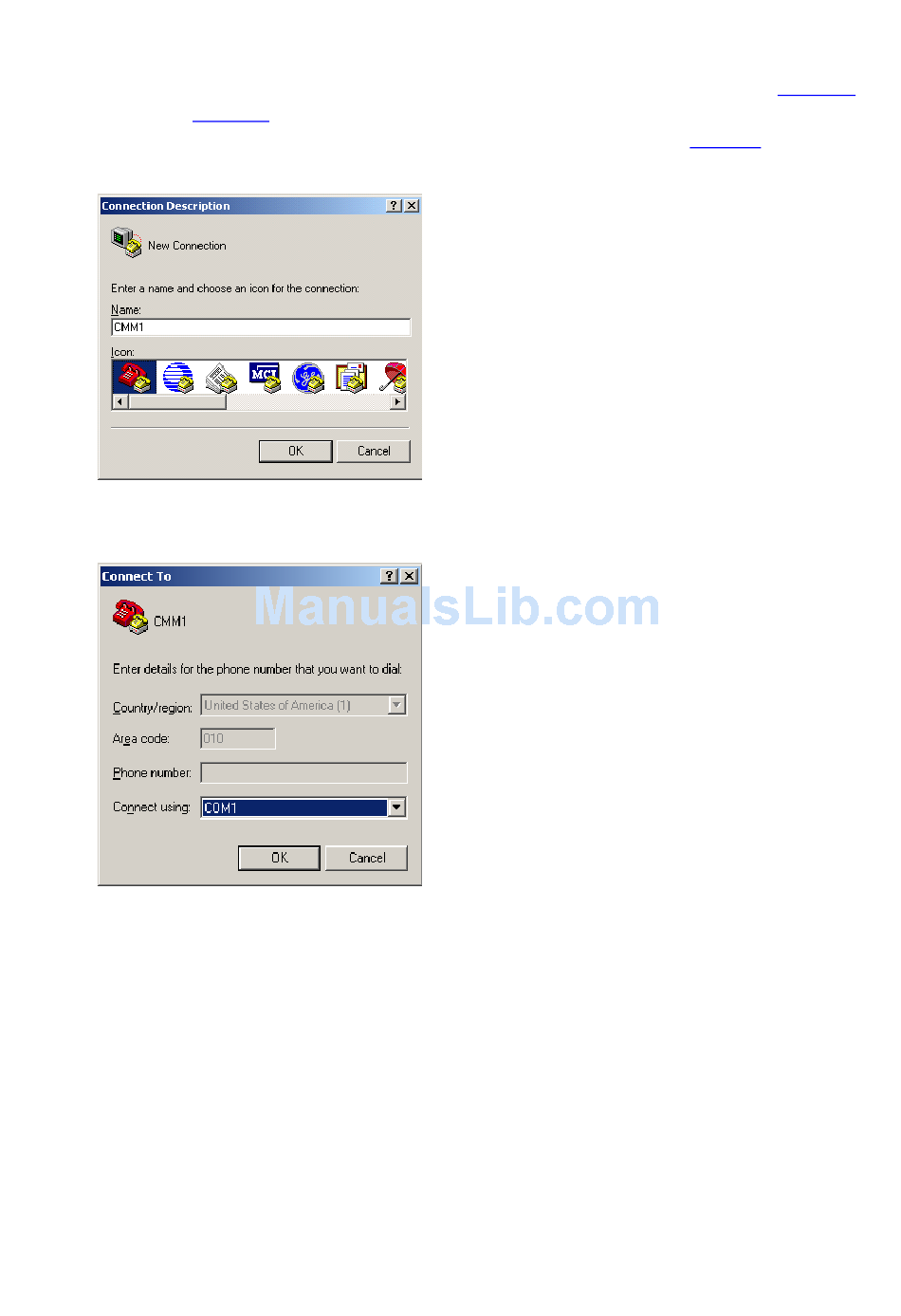

Figure 2-2 Create a connection
Figure 2-3 Specify the port used to establish the connection
for the connection to be created. Normally, both sides (that is, the serial port of
2-2
Figure 2-2
Table 2-1.
