Chapter 6 Label Slack Absorber

6.2 Dismantling

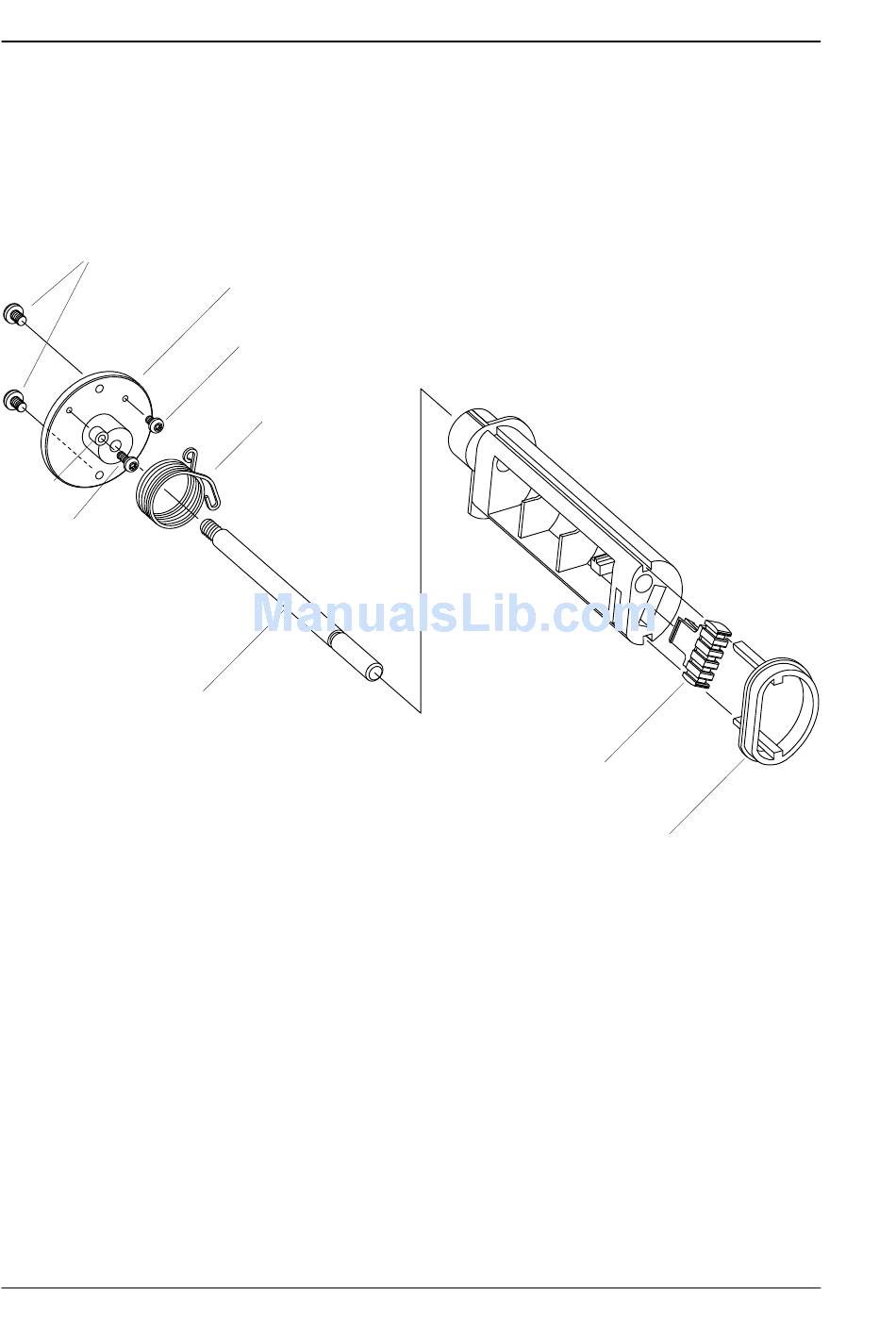

#T20 Torx Screw (2x)
Spacer
#T10 Torx Screw
Shaft
36
The label slack absorber unit is fi tted to the center section using
two #T20 Torx screws inserted from the electronics compartment.
The shaft should be screwed into the fl ange with a tightening
torque of 5 Nm.
Flange
#T10 Torx Screw
Torsion Spring
Grip
Edge Guide
Intermec EasyCoder 501 – Service Manual Ed. 7
