6.2 Dismantling

Spacer
#T10 Torx screw
EasyCoder PX4i and PX6i Service Manual
Downloaded from www.Manualslib.com

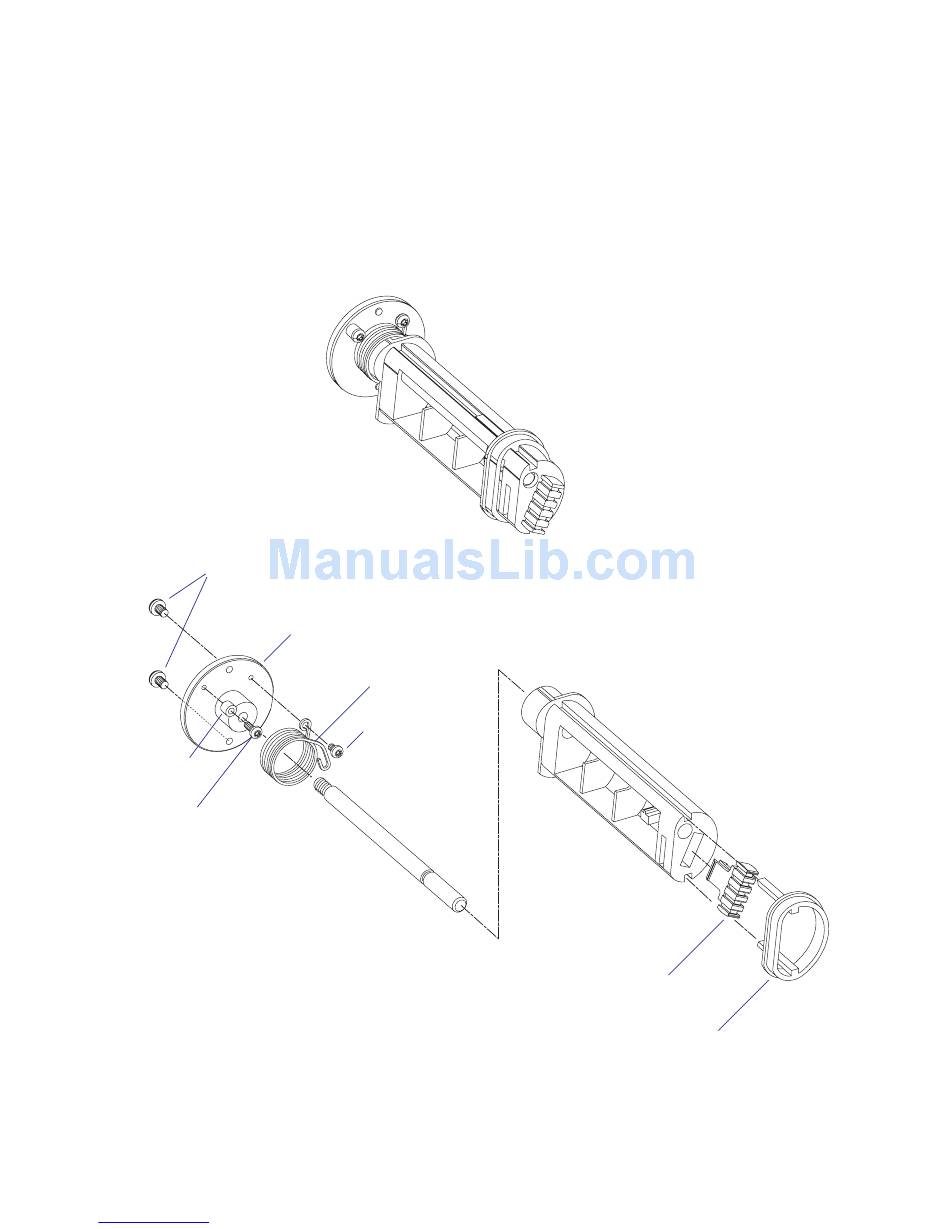

The label slack absorber unit is fi tted to the center section using two #T20
Torx screws inserted through the center section from the electronics com-
partment. The shaft should be screwed into the fl ange with a tightening
torque of 5 Nm.
EasyCoder PX4i
#T20 Torx screws (2x)
Flange
Torsion spring
#T10 Torx screw
manuals search engine
Chapter 6 — Label Slack Absorber
Grip (green)
Edge guide
(green)
47
