Chapter 5 — Media Supply

5.1 Internal Supply

Description
36
Downloaded from www.Manualslib.com

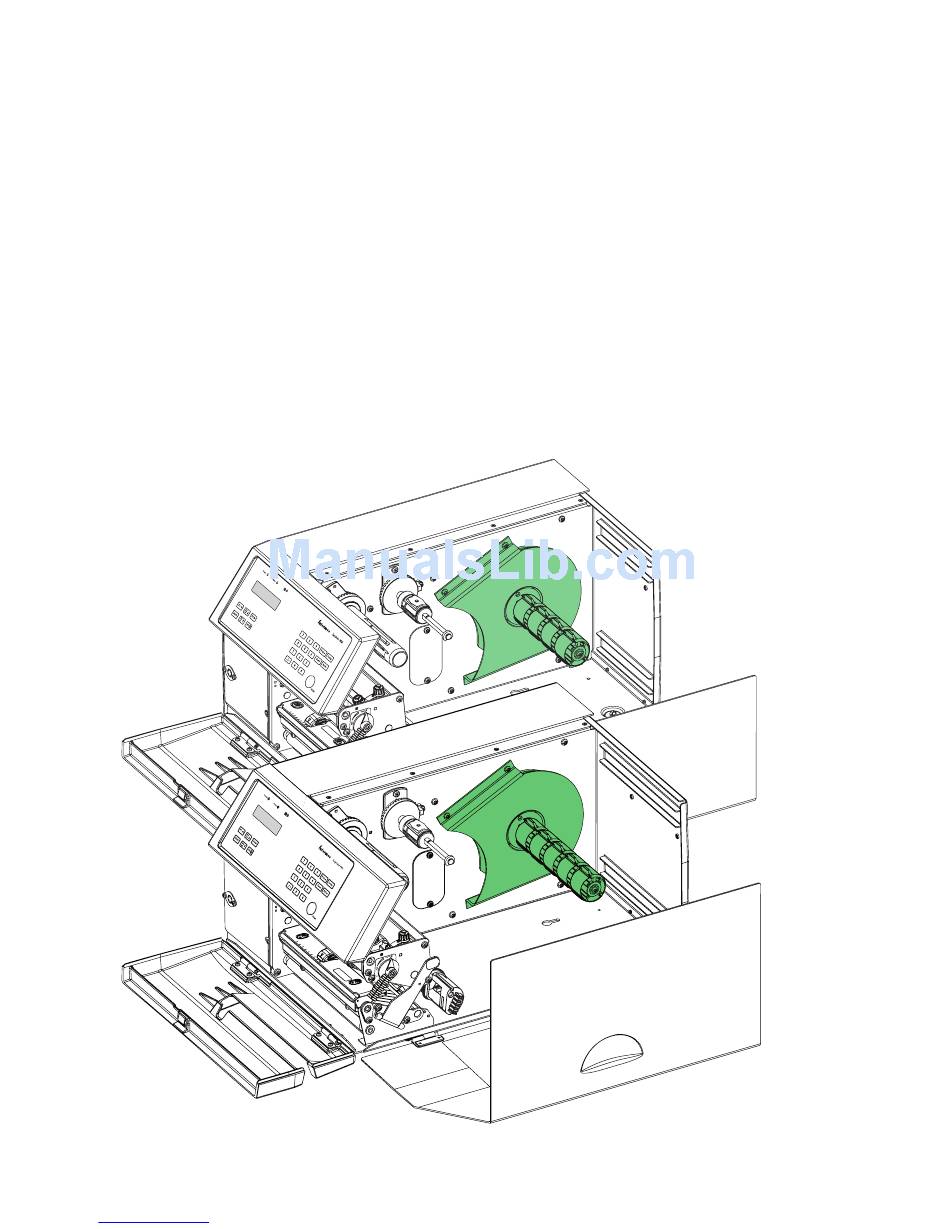

The internal media supply consists of a shaft with four or fi ve modular
hubs. The shaft is screwed into a fl ange fi tted to an almost circular plate
using two #T20 Torx screws. The plate is fi tted to the center section using
four #T20 Torx screws. The hub modules are spring-loaded in order to
fi t media roll cores with an inner diameter between 38 and 40 mm (1.5
inches).
A large crescent-shaped guide plate keeps the media roll aligned with the
print mechanism. Inside the guide plate and protruding through a slot in
the circular plate, the paper sensor is fi tted to the center section.
Maximum diameter of an internal media roll is 213 mm (8.38 inches),
except in the case of peel-off and batch takeup operation when the diam-
eter is restricted to 205 mm (8 inches). Maximum width is 120 mm (4.72
inches) for EasyCoder PX4i and 170 mm (6.69 inches) for EasyCoder
PX6i.
