Chapter 5

5. Media Supply

5.1 Internal Supply

EasyCoder 501 S, E, and SA
EasyCoder 501 LinerLess
26
The internal media supply consists of a shaft with four modular
bobbins on which a media roll can be fi tted. The shaft is fi tted to
the center section using two #T20 Torx screws inserted from the
electronics compartment. The bobbins are spring-loaded in order
to fi t paper roll cores with an inner diameter between 38 and 40
mm (1.5 to 1.6 inches).
A large crescent-shaped plate keeps the media roll aligned with the
print mechanism. In the EasyCoder 501 LinerLess the crescent-
shaped plate is replaced by a circular plate fi tted inside the inner-
most bobbin module.
Maximum diameter of an internal media roll is 205 mm (8 inches)
and maximum width is 120 mm (4.7 inches), except in Easy-
Coder 501 Linerless where the maximum width is 114 mm (4.49
inches).

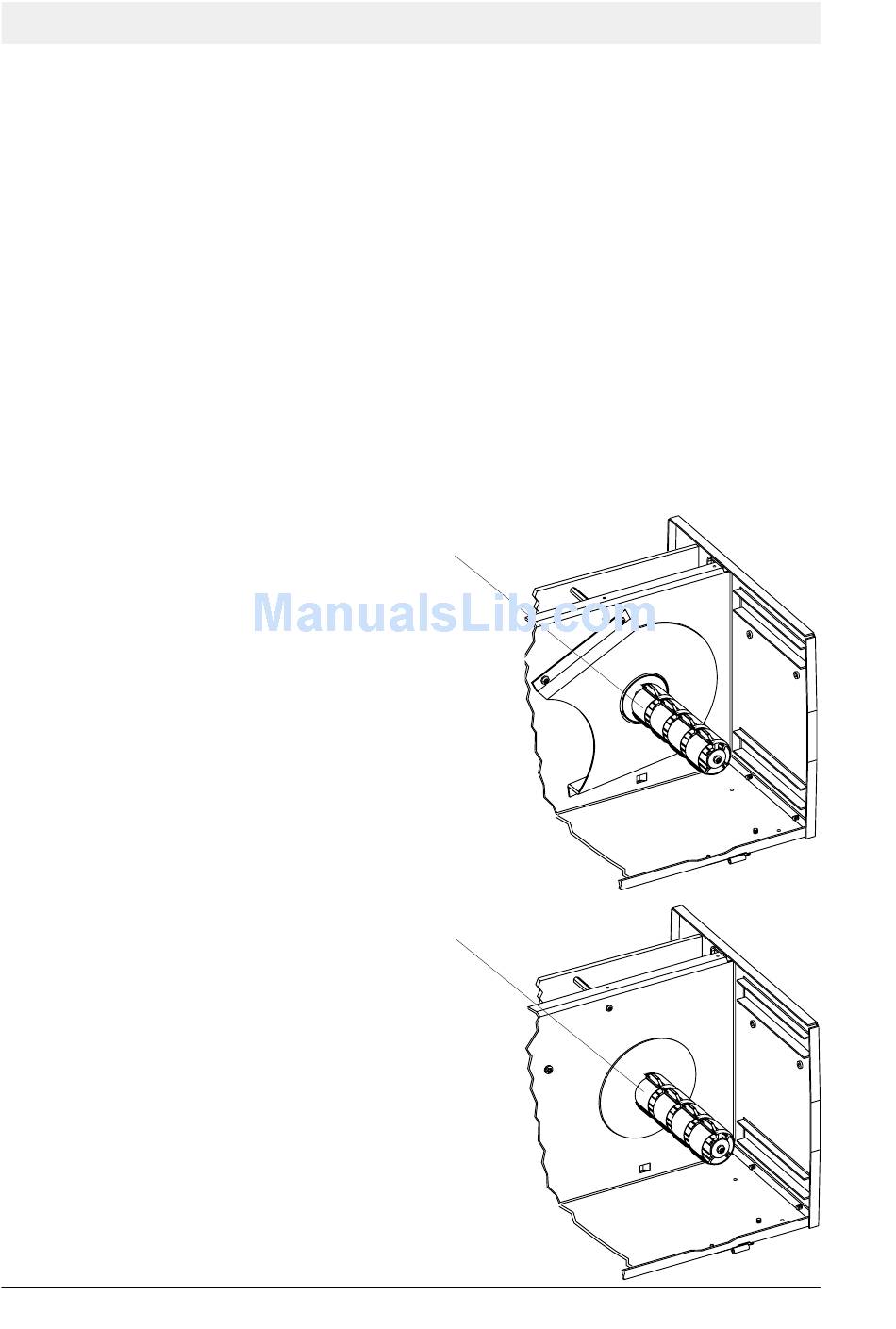

Media Supply Spool
Media Supply Spool
