Protected Port Configuration

Use the Protected Port Configuration page to prevent ports in the same
protected ports group from being able to see each other's traffic.
To display the Protected Port Configuration page, click Switching → Ports →
Protected Port Configuration in the navigation menu.

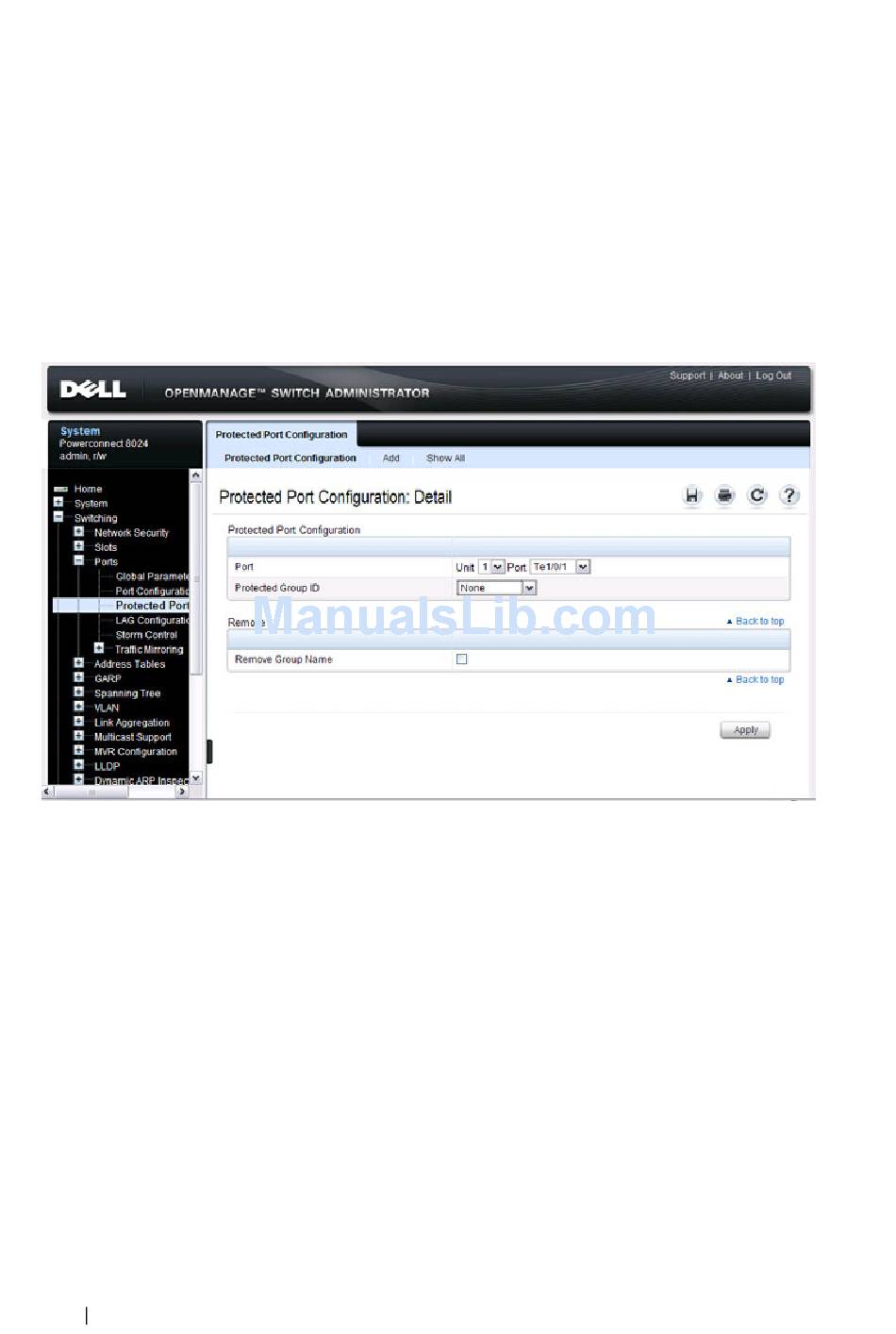

Figure 25-4. Protected Port Configuration
Configuring Protected Ports
To configure protected ports:
1 Open the Protected Ports page.
2 Click Add to display the Add Protected Group page.
3 Select a group (0–2).
4 Specify a name for the group.
672
Configuring Port-Based Traffic Control
