Rmon Event Control - Dell PowerConnect 8024 User Configuration Manual

RMON Event Control

Use the RMON Events Control page to define RMON events. Events are
used by RMON alarms to force some action when a threshold is crossed for a
particular RMON counter. The event information can be stored in a log
and/or sent as a trap to a trap receiver.
To display the page, click Statistics/RMON → RMON → Event Control in the
navigation panel.

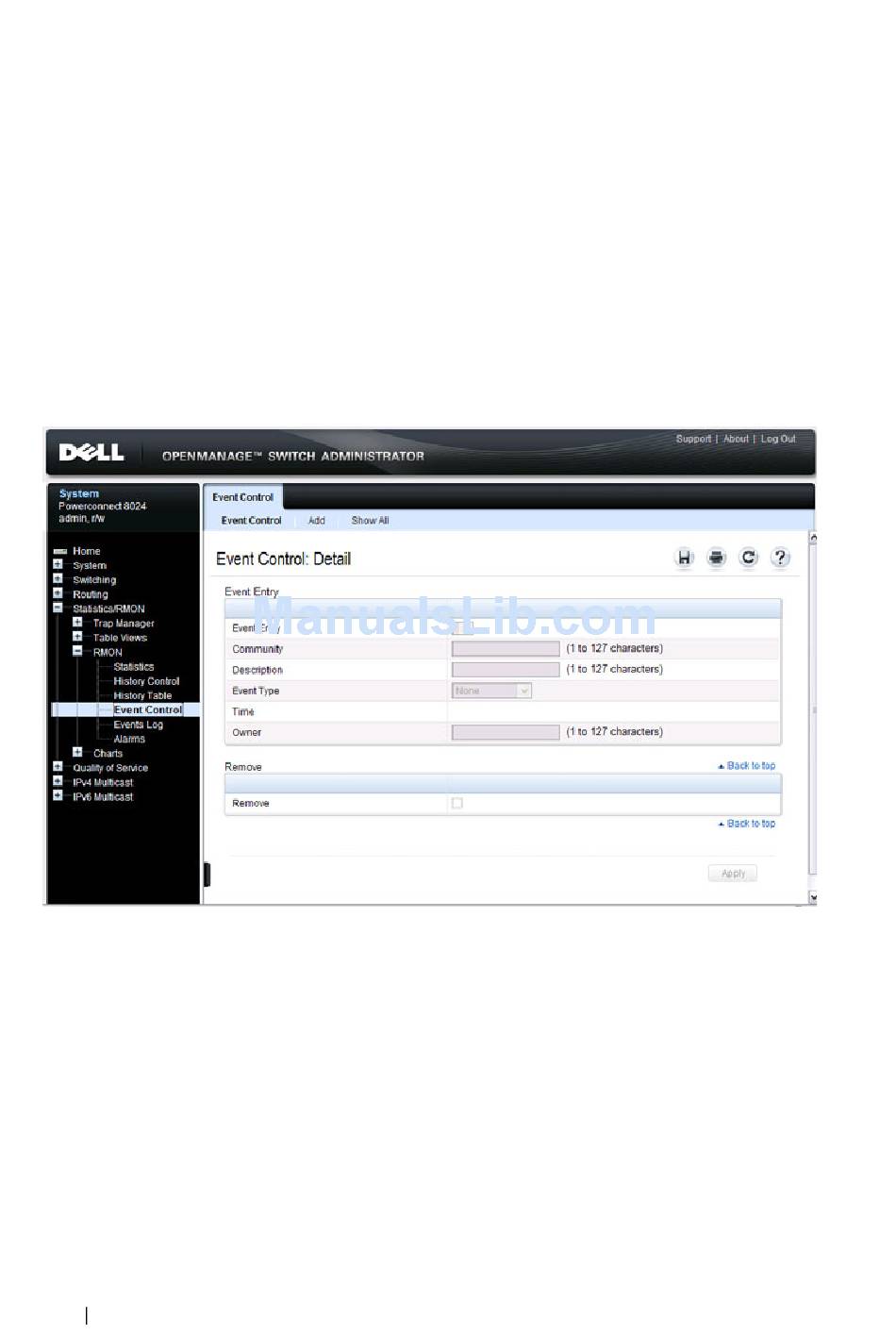

Figure 16-17. RMON Event Control
Adding an RMON Event
To add an event:
1 Open the RMON Event Control page.
2 Click Add.
The Add an Event Entry page displays.
368
Monitoring Switch Traffic
