Case Study on a Real-World Network Topology

Multicast Snooping Case Study

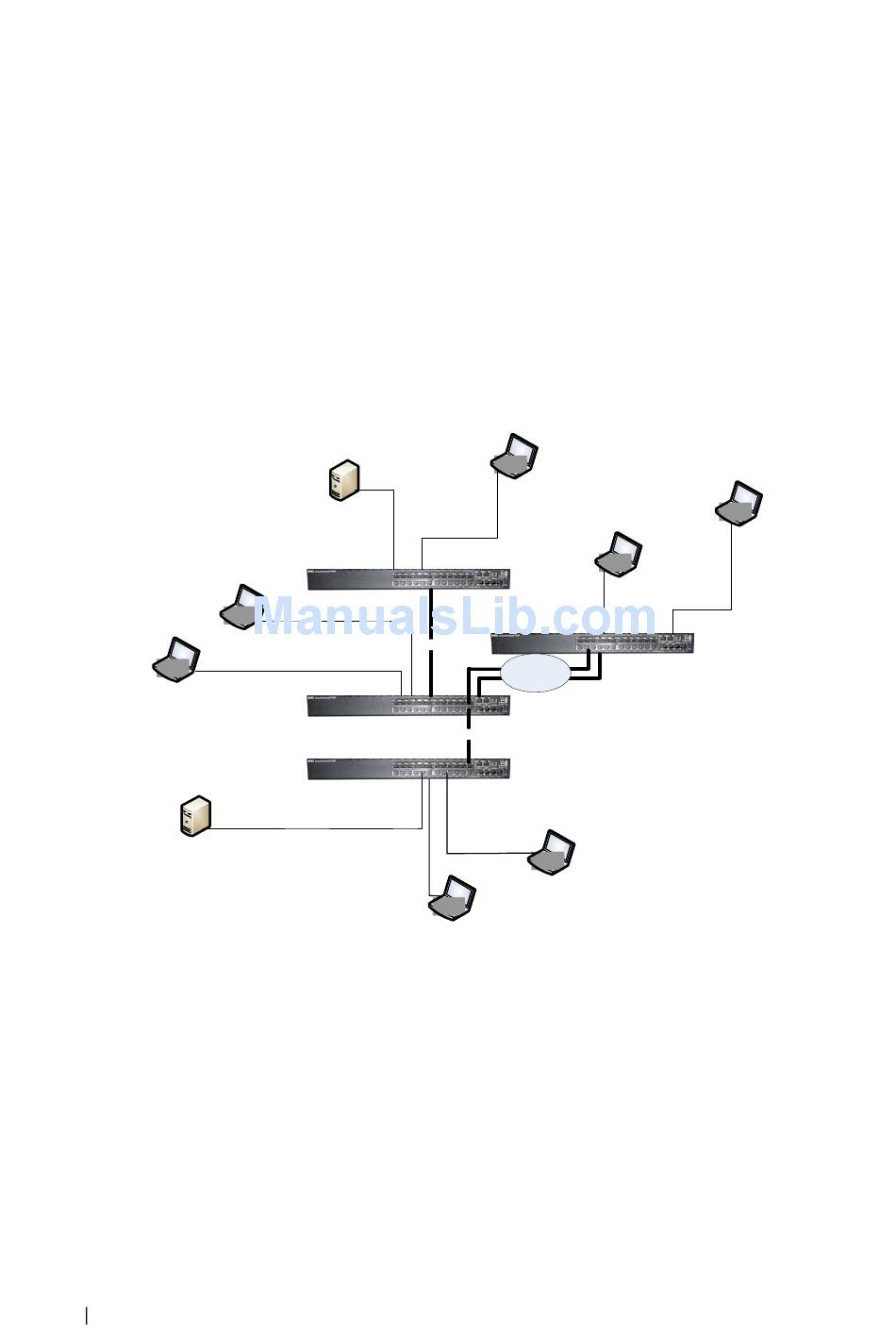

Figure 26-36 shows the topology that the scenarios in this case study use.
Figure 26-36. Case Study Topology
VLAN 20 192.168.20.x/24
Client RX 239.20.30.42
--or—
Client RX 239.20.30.40
VLAN 20 192.168.10.x/24
Client RX 239.20.30.40
CLIENT C
VLAN 20 192.168.10.x/24
Streaming 239.20.30.40
SERVER A
The topology in Figure 26-36 includes the following elements:
• Snooping Switches: D1, D2, D3 with snooping on VLANs 10, 20
• Multicast Router: D4 with PIM-SM and snooping on VLANs 10, 20
• Multicast Listeners: Client A-G
• Multicast Sources: Server A – 239.20.30.40, Server B – 239.20.30.42
• Subnets: VLAN 10 – 192.168.10.70, VLAN 20 – 192.168.10.70
