Dell PowerConnect 8024 User Configuration Manual page 673

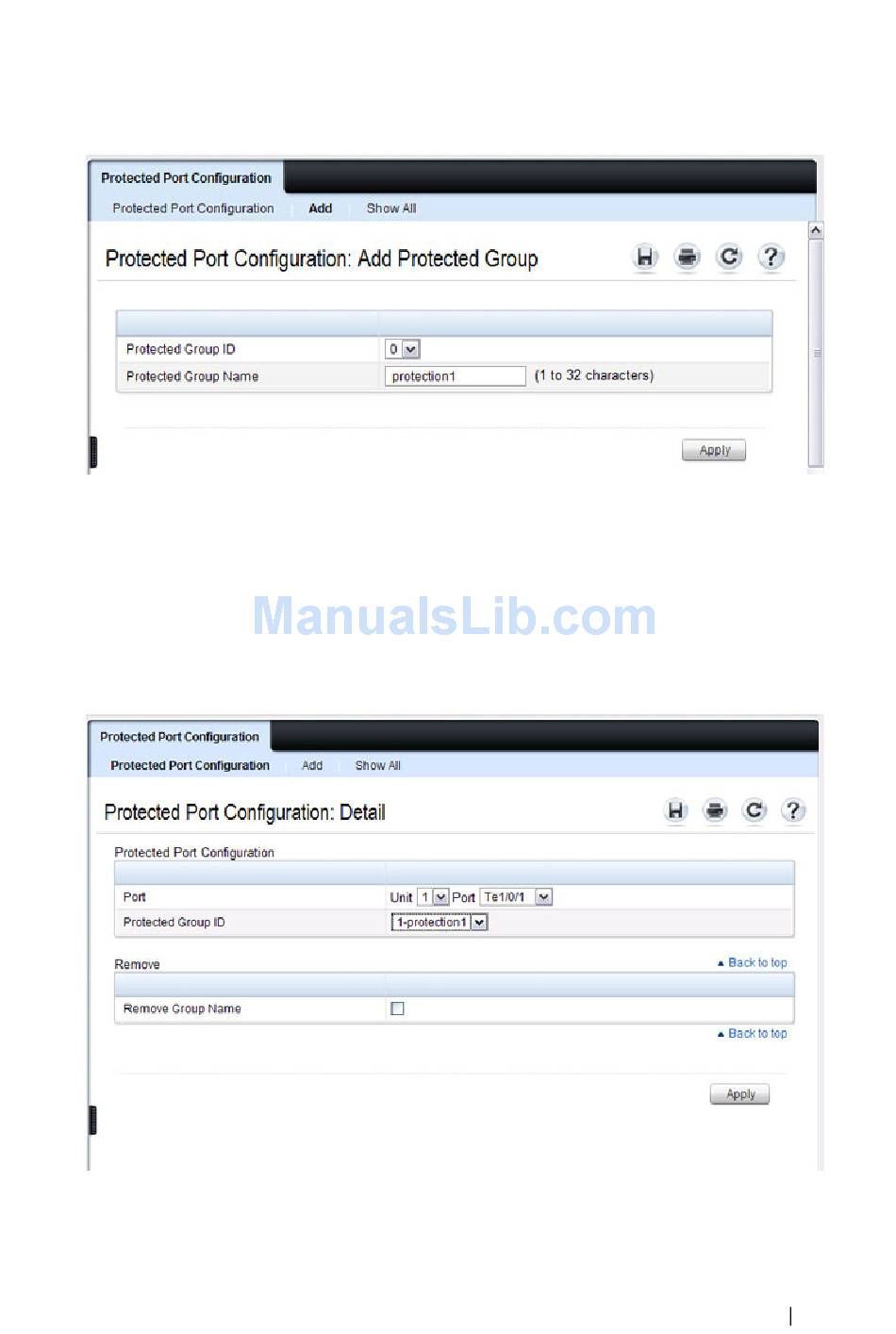

Figure 25-5. Add Protected Ports Group
5 Click Apply.
6 Click Protected Port Configuration to return to the main page.
7 Select the port to add to the group.
8 Select the protected port group ID.
Figure 25-6. Add Protected Ports
9 Click Apply.
10 To view protected port group membership information, click Show All.
Configuring Port-Based Traffic Control
673
