Managing Configuration Scripts

This example shows how to create a configuration script that adds three
hostname-to-IP address mappings to the host table.
To configure the switch:
1 Open a text editor on an administrative computer and type the commands
as if you were entering them by using the CLI.

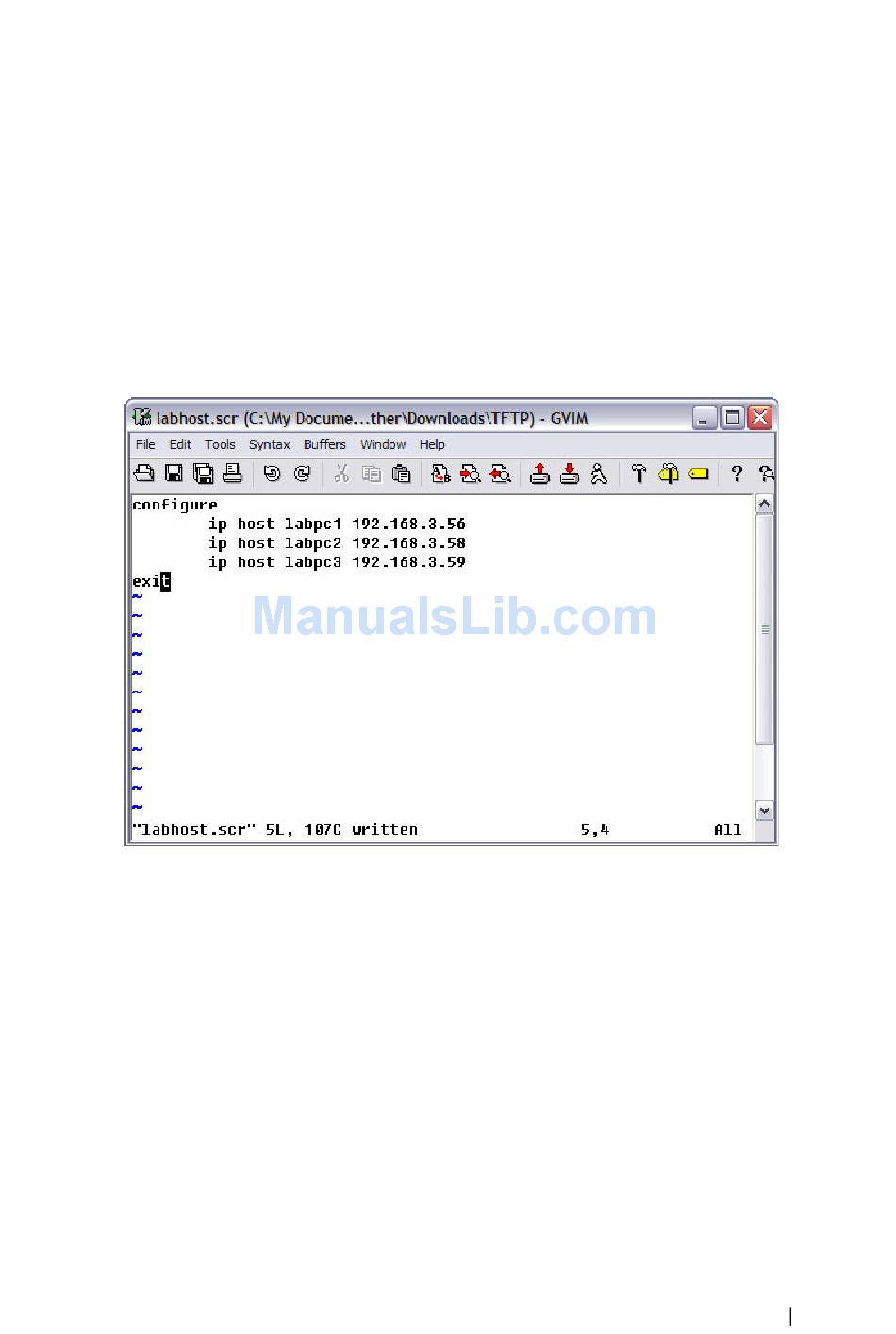

Figure 14-10. Create Config Script
2 Save the file with an *.scr extension and copy it to the appropriate
directory on your TFTP server.
3 Download the file from the TFTP server to the switch.
console#copy tftp://10.27.65.103/labhost.scr
script labhost.scr
Mode........................................... TFTP
Set TFTP Server IP............................. 10.27.65.103
TFTP Path...................................... ./
TFTP Filename.................................. labhost.scr
Data Type...................................... Config Script
Destination Filename........................... labhost.scr
