Powerconnect 8164 Front Panel - Dell PowerConnect 8024 User Configuration Manual

– 4 x SFP+ module
– 4 x 10GBaseT module.
See "Hot-Pluggable Interface Modules" on page 90 for details about these
modules.
Figure 3-4. PowerConnect 8132F Front Panel
PowerConnect 8132F switches can be stacked with other PowerConnect 81xx
switches using 10G or 40G SFP+ or QSFP modules in the module bay.

PowerConnect 8164 Front Panel

The PowerConnect 8164 front panel provides the following ports:
• 48 x 10GbE copper ports
• A USB port. See "USB Port (Power Connect 8100-series switches only)" on
page 92.
• Two fixed QSFP ports, each supporting 4 x 10G or 1 x 40G connections
• One module bay that supports the following modules:
– 2 x 40 Gig QSFP (each QSFP may be configured as 4 x 10 Gig ports)
– 4 x SFP+ module
– 4 x 10GBaseT module
See "Hot-Pluggable Interface Modules" on page 90 for more information.
88
Hardware Overview

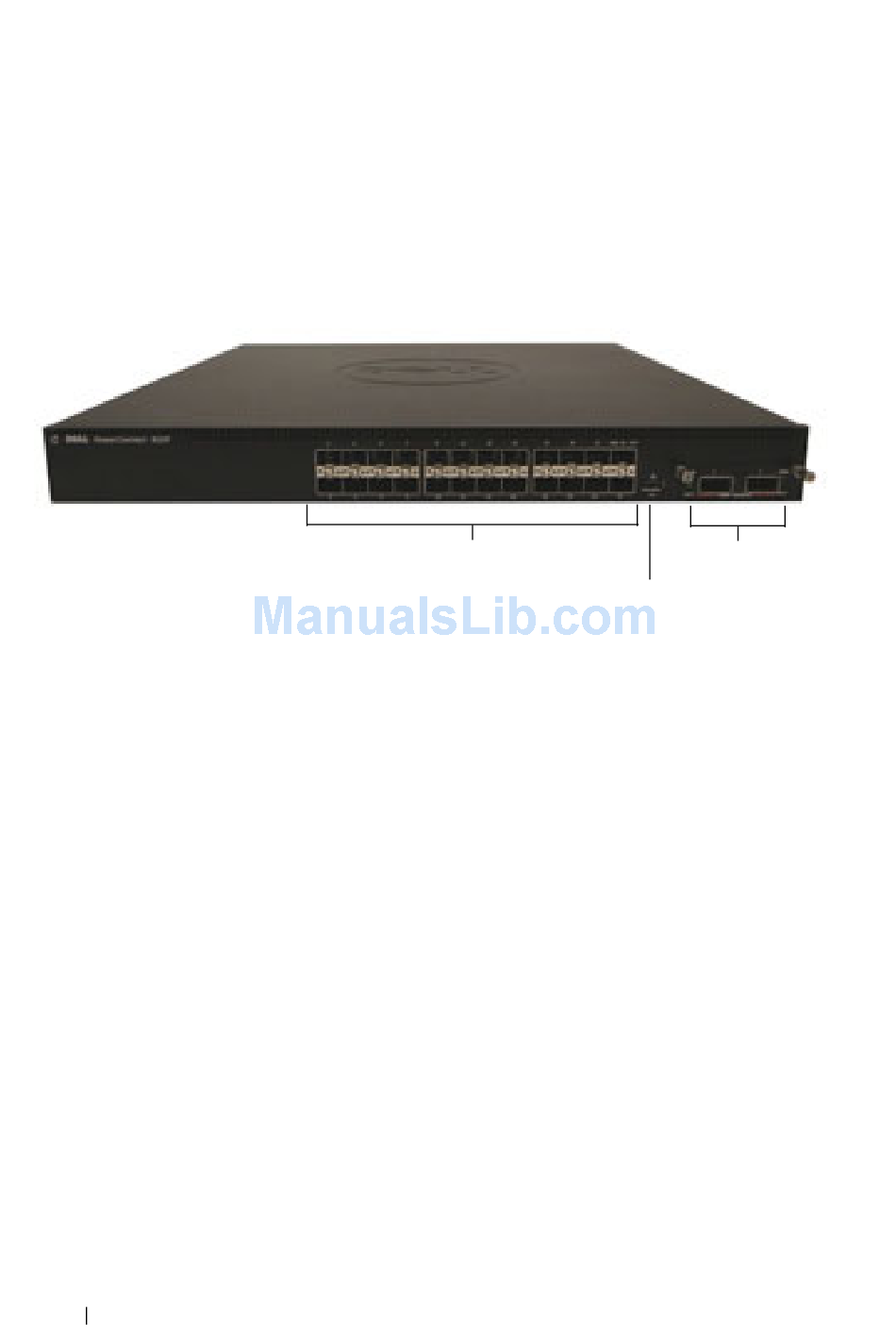

10GbE Fiber Ports Module bay
USB port
