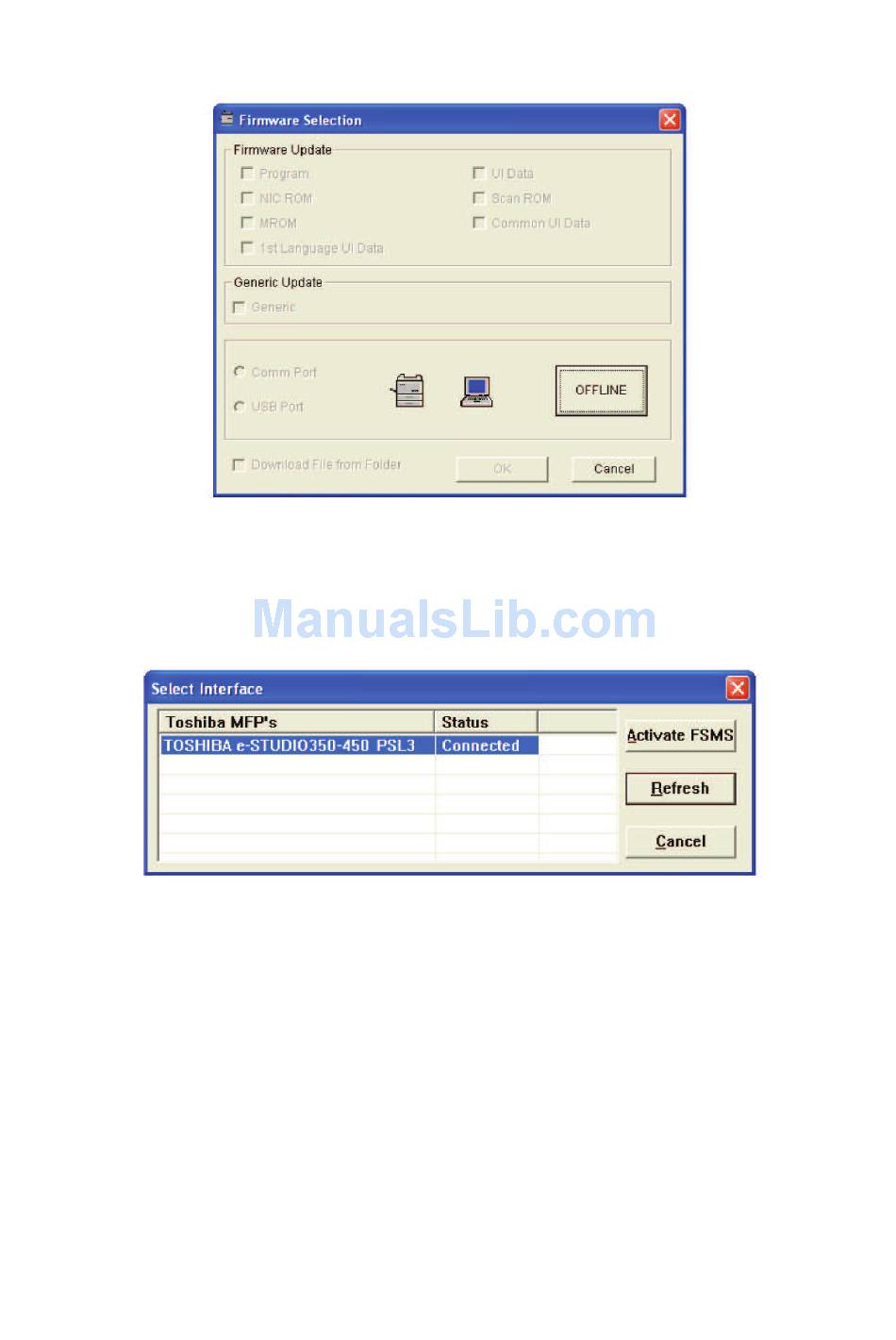

(8) Click the [OFFLINE] button.
(9) The connection status between the printer driver installed in the PC and the equipment to be
connected is displayed. Select the equipment to be updated and click the [Activate FSMS] but-
ton.
Remark:
The content of "Status" display can be renewed to the latest status by clicking the [Refresh] but-
ton. When the status is displayed as "Disconnected" because the start up of the equipment is
delayed, the status can be renewed to "Connected" by clicking this.
e-STUDIO200L/202L/230/232/280/282 FIRMWARE UPDATING
Fig.6-59
Fig.6-60
