Mon. tab input
AFL Direct Input Source L
AFL Direct Input Source R
Navigating to the Patching screen
You can access the Patching screen from various other screens in the GUI menu,
usually by clicking a source (source) or dest. (destination) button.
one of these buttons, not only will the Patching screen open, but the appropriate tab in
the From/To section will be open as well. For a full list of patching routing on the
PRO2, see "Navigating to the Patching screen" on page 16.

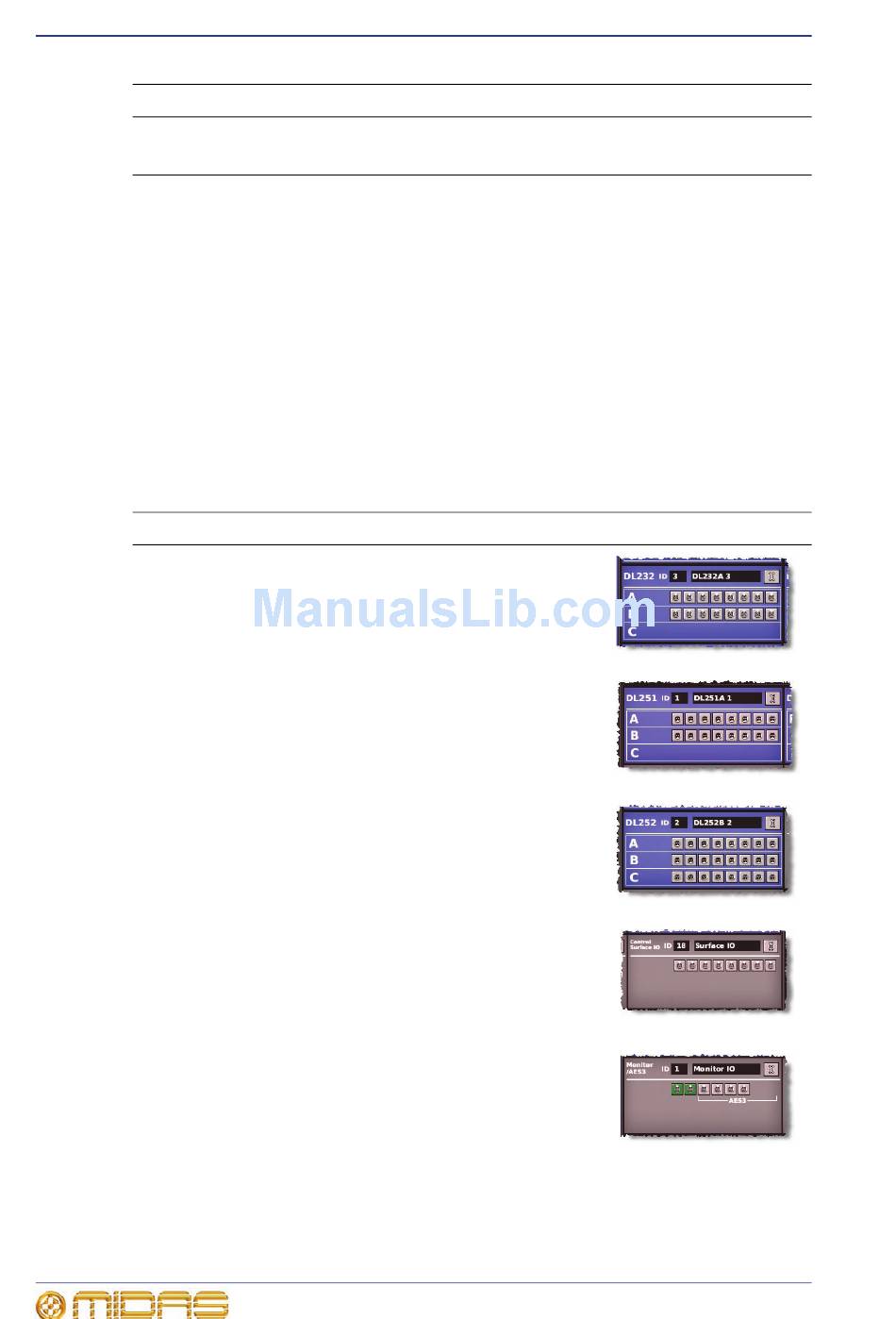

About the devices on the I/O tabs
The following devices will, if selected (see "Setting up the I/O rack device(s)" on
page 62), appear on the I/O tabs of the From/To sections of the Patching screen.
The device options in the following table are available for selection from the device
type drop-down list in the AES50 Device Configuration window (see Figure 3 "The
AES50 Device Configuration window" on page 62).
Device type
DL232A
DL251A
DL252A
N/A
N/A
Description
One of three devices that comprise
the DL232; the other two being
"DL232B" and "DL321C".
One of three devices that comprise
the DL251 Audio System I/O; the
other two being "DL251B" and
"DL251C".
One of three devices that comprise
the DL252 Audio System I/O; the
other two being "DL252B" and
"DL252C".
Control Surface IO — represents
the eight input and eight output
connectors on the rear panel of the
PRO2.
Monitor /AES3 — represents the
AES3 I/O connectors on the rear
panel of the PRO2.
Chapter 8: Patching
Equivalent on the Monitors screen
afl direct input left
afl direct input right
Diagram
