50

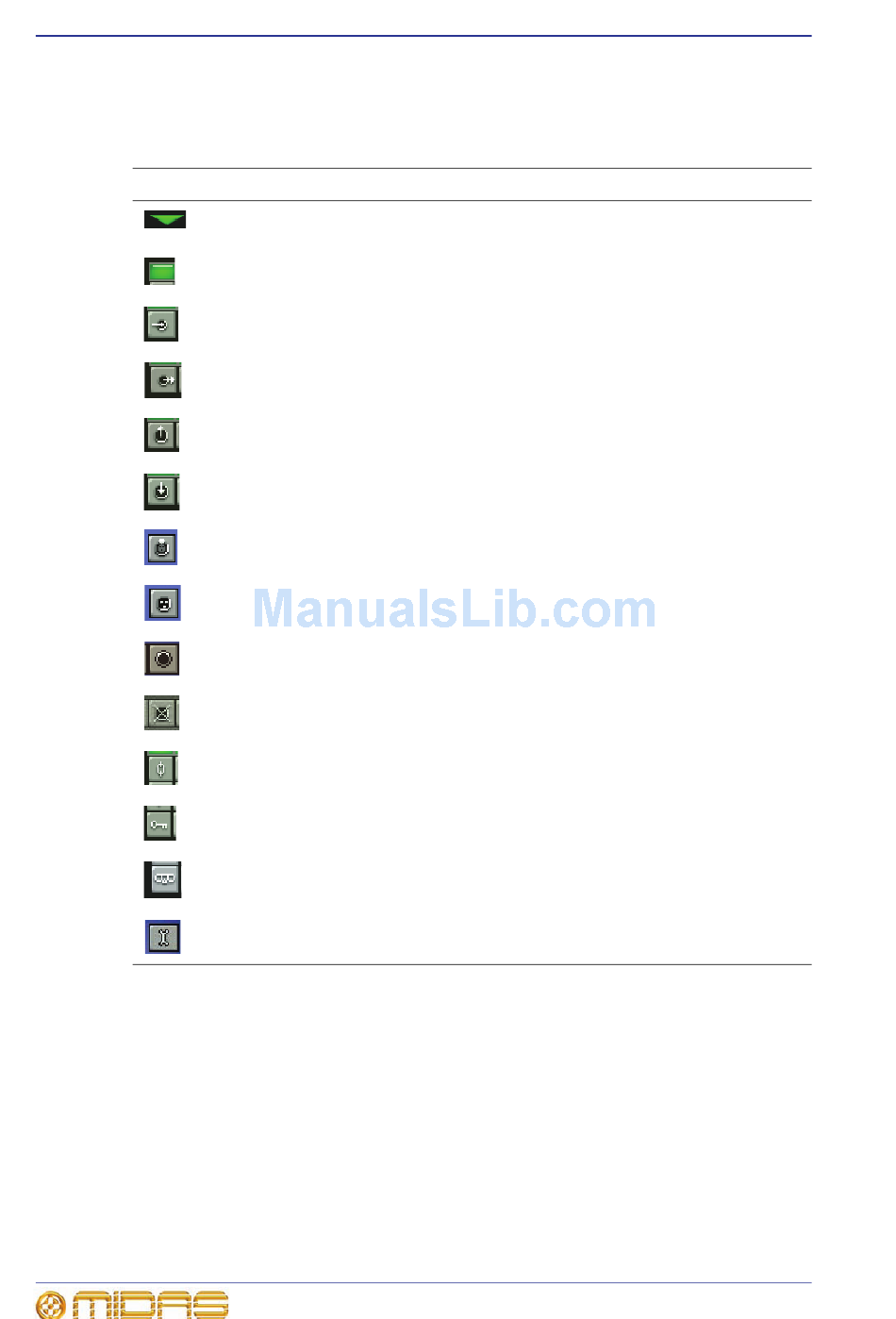

What the Patching screen symbols mean
The following table gives a description of all the symbols that appear on the Patching
screen tabs.
Symbol
About the tabs in the From and To sections
The From section (left side of Patching screen) contains all of the source patch
connectors on tabs, and the To section (right side of Patching screen) contains all of
the destination patch connectors on tabs.
Stage I/O tab — From
The Stage I/O tab contains the devices fitted in the stage racks. For a typical display,
see Figure 2 "A typical Patching screen display" on page 48.
Description
During patching, this triangle appears under a tab name when its tab
sheet contains a selected patch connector.
Shown at the top of the channel patch connectors, this box aids channel
identification by showing the channel's user-configured colour.
Insert return patch connector.
Insert send patch connector.
Bus or channel source patch connector.
Bus or channel destination patch connector.
Female XLR chassis patch connector (input).
Male XLR chassis patch connector (output).
Jack patch connector.
Non-functional patch connector, that is, one that cannot be patched.
Compressor sidechain input patch connector.
Gate input patch connector.
DN9696 recorder patch connector.
Set-up button, which opens the device configuration window (see
"Configuring the devices" on page 60 for details).
