230

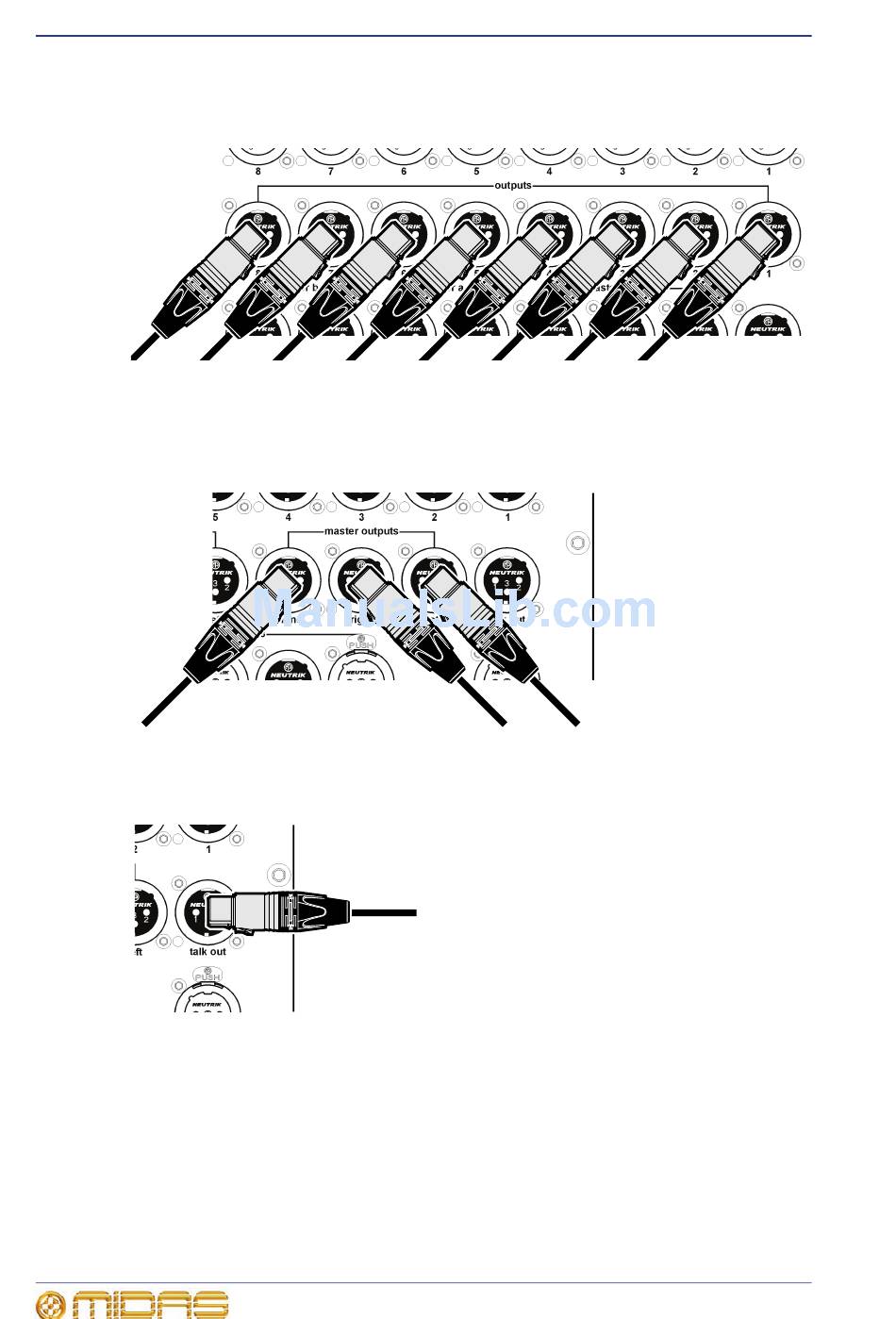

Chapter 29: Panel Connections
Outputs
The outputs section has eight output connectors for XLR analogue outputs.
Master outputs
The master outputs section has a mono and left and right output connectors for XLR
analogue outputs.
mono
right
left
Talk out
The talk out output connector for a male output XLR.
PRO2 Live Audio System
Owner's Manual
