Delay effect

The delay effect provides simple delay line based effects. Delay times can be specified
manually or by means of a 'tempo-tap' button. Three-mode delay algorithm:
• Single — one delay tap (mono or stereo processing).
• Dual — two delay lines (stereo insert only).
• Ping-pong — two delay lines with cross feedback.
1
20 19

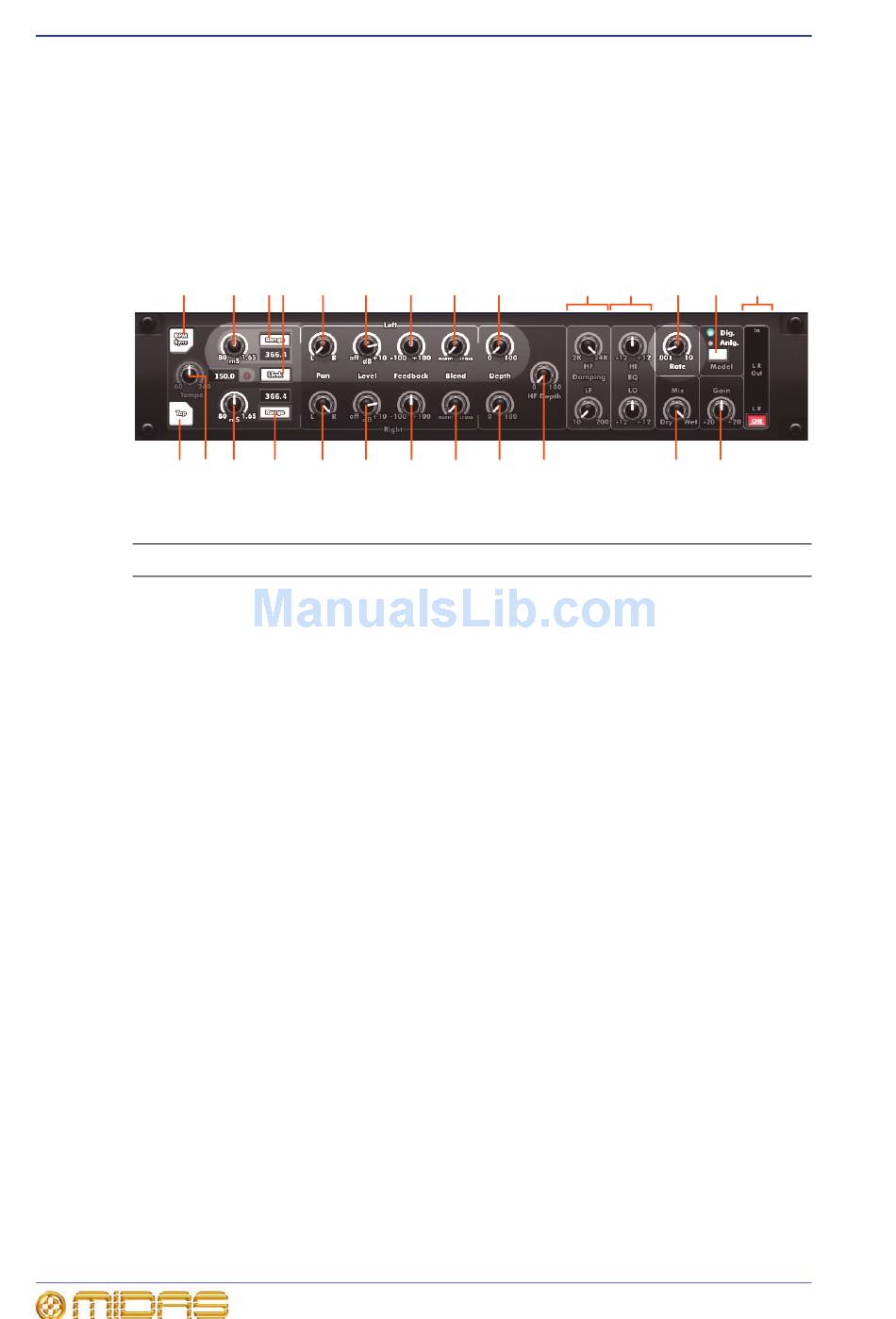

Front panel of the delay effect
Item
1
2
3
4
5
6
7
8
9
10
11
12
2 3 4 5 6
18 5 5 6
Control
BPM Sync button
Left channel delay
time control knob
Range button
Link button
Pan control knob
Level control knob
Feedback control
knob
Blend control
knob
Depth control
knob
Damping section
EQ section
Rate control knob
Chapter 16: Internal Effects
7 8 9
7 8 9 17
Function
Activates BPM (TAP TEMPO) mode.
For entering the desired delay time. Value is shown
immediately below, in ms or note duration.
Selects one of three delay time ranges (1-25ms,
10-200ms or 80-1600ms). Value is displayed
immediately below/above button.
Links delay time of left and right channels.
Pans channel between L (left) and R (right) outputs.
Adjusts the output level. Range is from off to +10dB.
Adjusts the amount of negative/positive feedback
applied to delay. Controls the number of repeats.
Range is from -100% to +100%.
Adjusts the feedback blend from norm to cross.
Adjusts depth of delay modulation. Range is from
0 to 100.
Contains a HF control knob that adjusts the HF
attenuation of delay repeats and an LF control knob
that adjusts the LF attenuation of delay repeats.
Contains a HI control knob that adjusts the amount
of HF (high EQ) cut or boost applied to the output.
LO control knob adjusts the amount of LF (low EQ)
cut or boost applied to the output. Range of both is
-12 to +12, with 0 at top dead centre.
Adjusts rate of delay modulation. Range is between
0.001Hz and 10Hz, with 0.7Hz at top dead centre.
10 11 12 13
16 15
