Signal generator

The signal generator section can output to pink noise (pink noise generator) or sine
wave tone (sinusoidal oscillator), and connect to the internal and external talk buses.

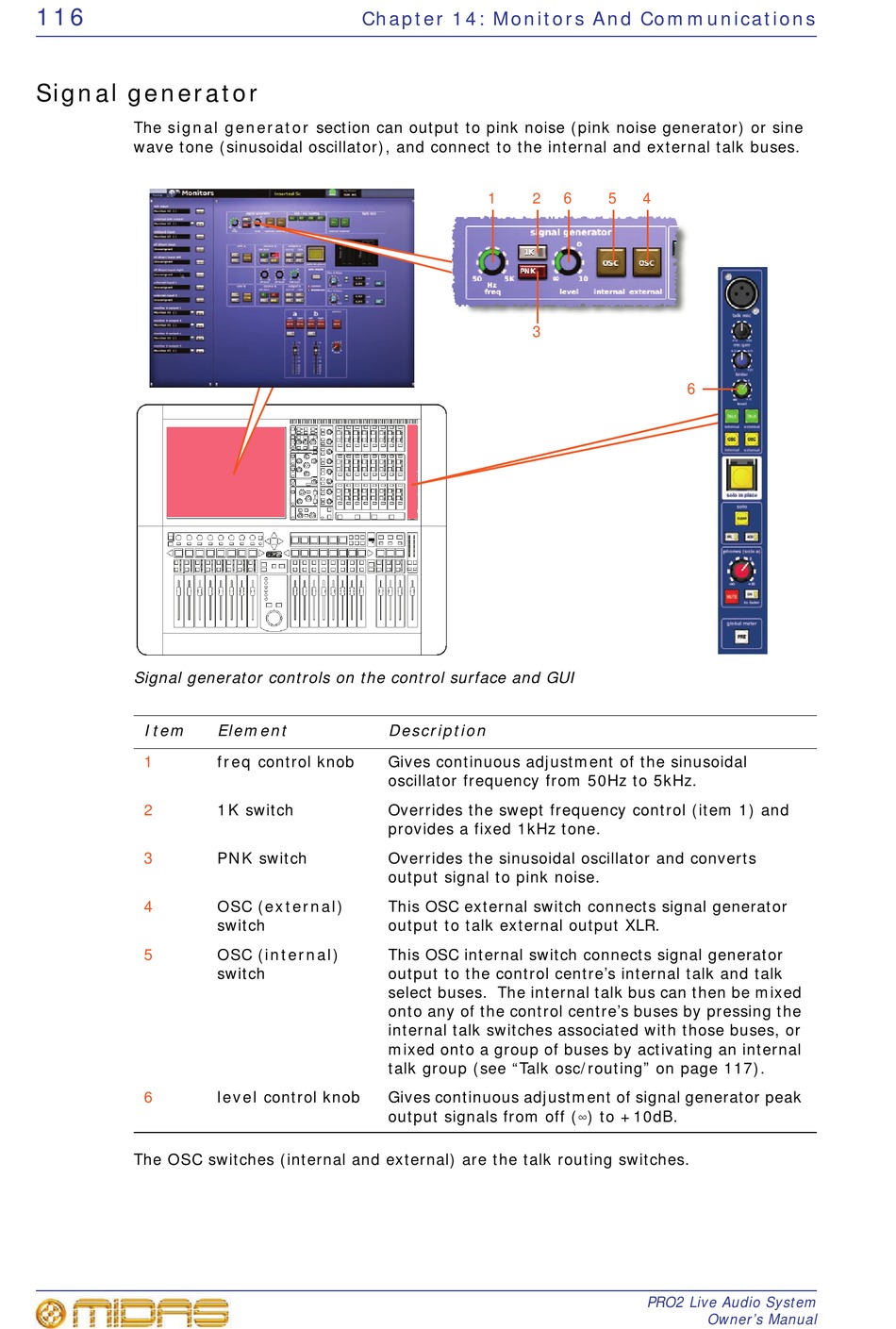

Signal generator controls on the control surface and GUI
Item
1
2
3
4
5
6
The OSC switches (internal and external) are the talk routing switches.
Chapter 14: Monitors And Communications
Element
freq control knob
1K switch
PNK switch
OSC (external)
switch
OSC (internal)
switch
level control knob
1 2
3
Description
Gives continuous adjustment of the sinusoidal
oscillator frequency from 50Hz to 5kHz.
Overrides the swept frequency control (item 1) and
provides a fixed 1kHz tone.
Overrides the sinusoidal oscillator and converts
output signal to pink noise.
This OSC external switch connects signal generator
output to talk external output XLR.
This OSC internal switch connects signal generator
output to the control centre's internal talk and talk
select buses. The internal talk bus can then be mixed
onto any of the control centre's buses by pressing the
internal talk switches associated with those buses, or
mixed onto a group of buses by activating an internal
talk group (see "Talk osc/routing" on page 117).
Gives continuous adjustment of signal generator peak
output signals from off (4) to +10dB.
