228
Connectors in area A
Area A houses the connectors for audio, networking, synchronising, etc.
15

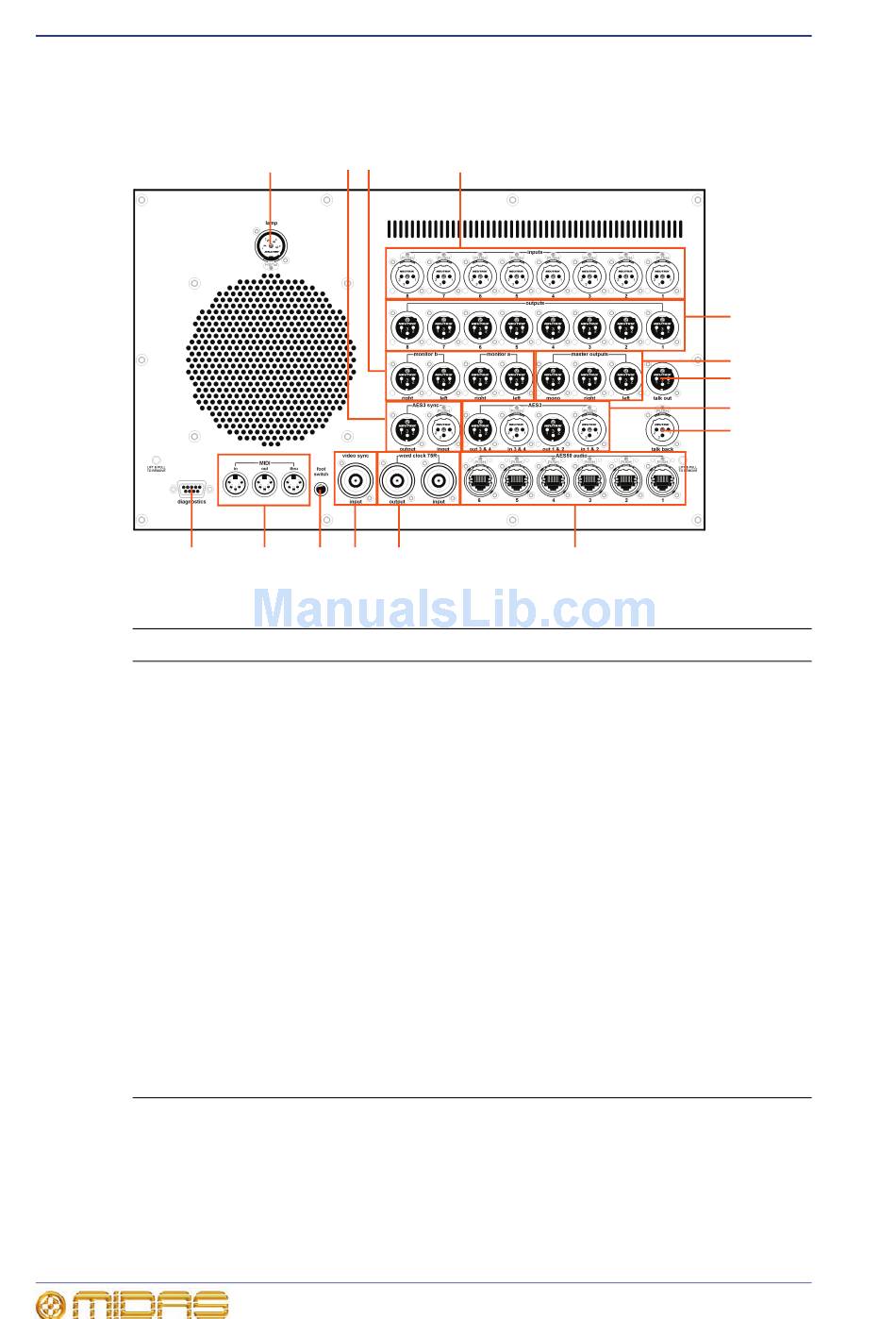

External connections on the left rear panel of the control centre
Item
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2 3
14
13
12
Description
Lamp connector (see "Other connections" on page 29).
AES3 sync connectors (see "AES3 sync" on page 229).
Monitor a and b connectors (see "Monitor a and b outputs" on page 229).
Input connectors (see "Inputs" on page 229).
Output connectors (see "Outputs" on page 230).
Master outputs (see "Master outputs" on page 230).
Talk out connector (see "Talk out" on page 230).
AES3 inputs and outputs (see "AES3" on page 231).
Talk back connector (see "Talk out" on page 230).
AES50 audio connectors (see "AES50 audio" on page 231).
Word clock connectors (see "Word clock" on page 232).
Video sync connector (see "Video sync" on page 232).
Foot switch connector (see "Other connections" on page 29).
MIDI connectors (see "MIDI" on page 232).
Diagnostics connector. This is for service personnel use only.
Chapter 29: Panel Connections
4
11
10
PRO2 Live Audio System
Owner's Manual
5
6
7
8
9
