Configuring the number of GEQs (and effects)
GEQ (and effects) configuration is a GUI-only operation. We recommend that you
configure the number of GEQs and effects before you start using the PRO2 Control
Centre.
>> To configure the PRO2 Control Centre with the number of GEQs and effects
1
At the GUI, choose home
2
Click the Show tab to open the Preferences Show window.
3

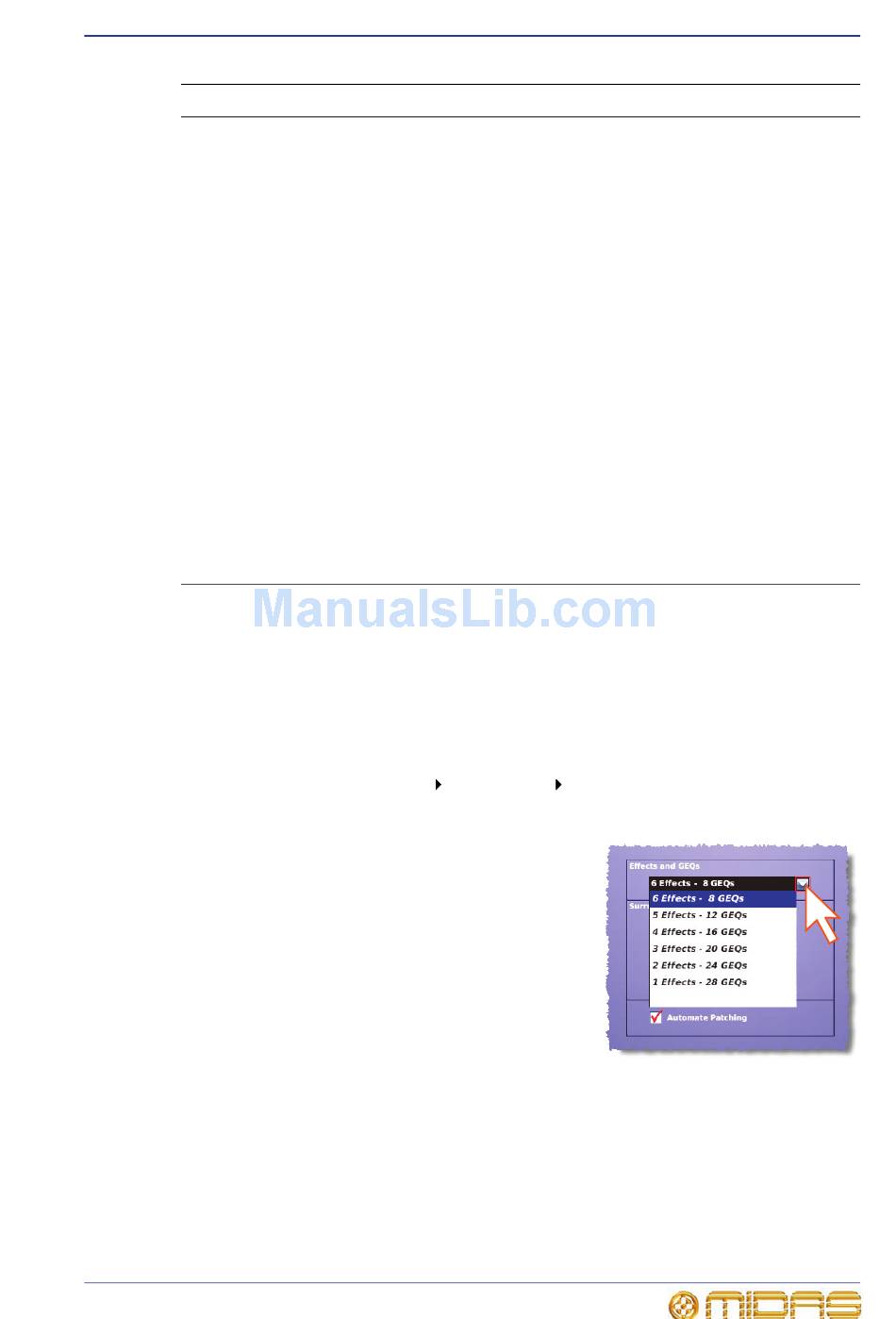

In the Effects and GEQs section, open the
drop-down list (as shown right).
4
Click on your desired option to select it. For
example, click the 3 Effects - 20 GEQs option
to have three internal effects and 28 GEQs.
PRO2 Live Audio System
Owner's Manual
Control
EQ button
10-segment meter
Q button
Notch filter control
knob
IN button
Notch filter control
knob
Fader group ID
number
Function
Selects the EQ. The adjacent green IN LED shows
the EQ is on (illuminated) or is being bypassed
(extinguished).
Shows the incoming signal level and is pre-EQ (but
post-gain control). The LED functions are: two red
LEDs illuminate when signal has exceeded +20dBu;
two yellow LEDs illuminate when signal level exceeds
0dB (range is between 0dB to +20dB); and the top
five green LEDs encompass the signal level range of
between 0dB and -40dB, while the bottom one
illuminates when the signal has exceeded -40dB.
Selects proportional Q (PROP.) or constant Q (CON.)
modes.
Adjusts the position of the notch filter within the
range 200Hz to 20kHz.
Switches the respective high pass/low pass/notch
filter in/out.
Adjusts the position of the notch filter within the
range 20Hz to 2kHz.
See "Controlling a GEQ via the I zone" on page 194.
Preferences General.
