48
1
2

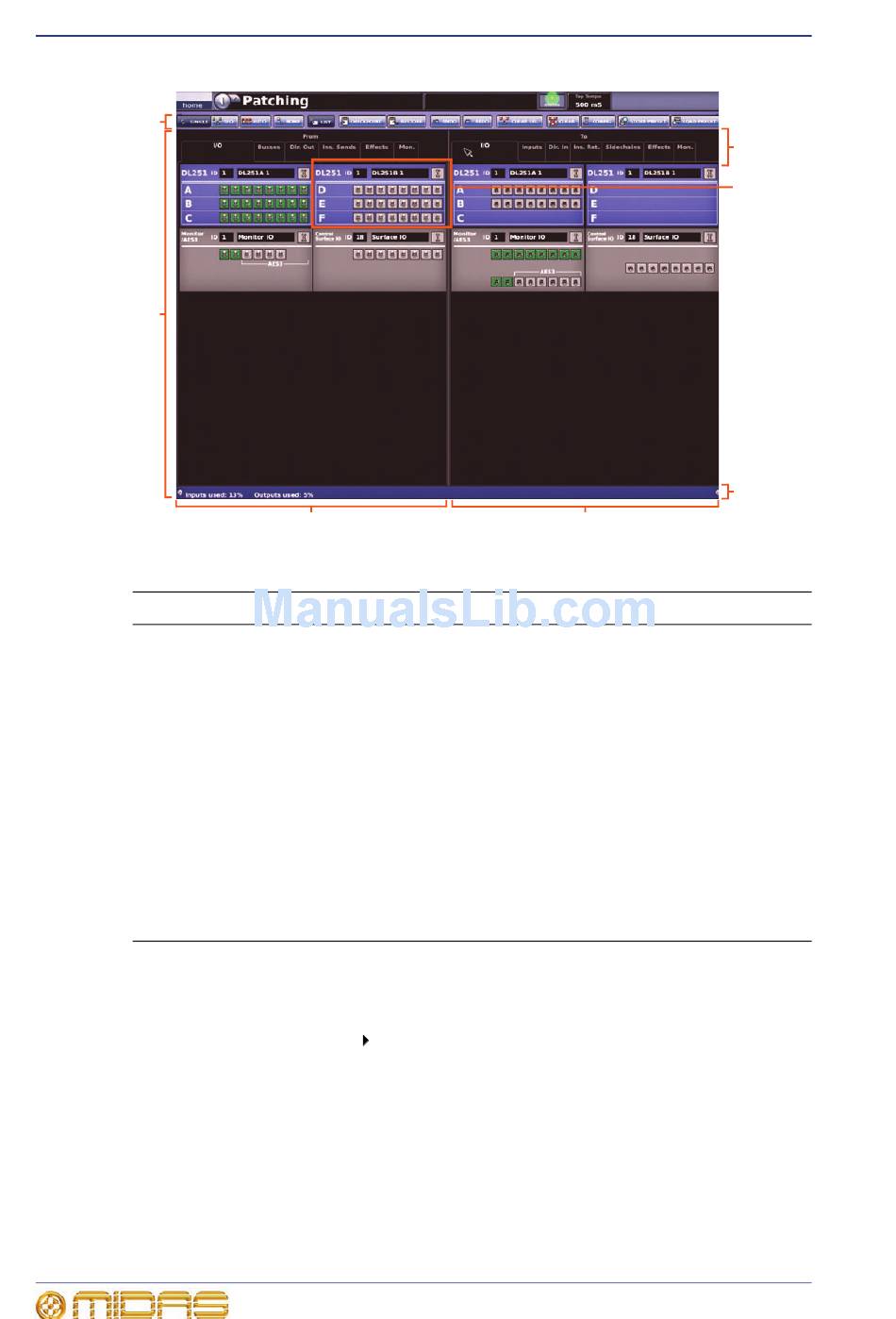

Figure 2: A typical Patching screen display
Item
1
2
3
4
5
6
7
>> To open the Patching screen
Do one of the following:
• At the GUI, choose home
• Press the routing / metering button in the navigation zone.
• At the appropriate GUI screen, click the src (source) or dest (destination) button.
The Patching screen will open at the appropriate tab/configuration window.
3
Description
Function button panel, contains the function buttons that enable patching
and device configuration (see "Patching screen function buttons" on
page 49).
Patching area, contains all of the patch connectors on tabs.
From section, contains a number of tabs that house all of the patch
connector sources (see "About the tabs in the From and To sections" on
page 50).
To section, contains a number of tabs that house all of the patch connector
destinations (see "About the tabs in the From and To sections" on page 50).
Status bar that shows the patching status of the inputs and outputs as a
percentage.
A pictorial representation of a physical device.
Section titles and tab names.
Patching.
Chapter 8: Patching
7
6
5
4
