Connecting up

Connect your system according to your requirements. For examples of system
configuration, see "System configurations" on page 8.
To ensure the correct and reliable operation of your equipment, only high quality,
balanced, screened, twisted pair audio cable should be used.
XLR connector shells should be of metal construction so that they provide a screen
when connected to the console and, where appropriate, they should have Pin 1
connected to the cable screen.
All Jack connector shells should be connected to the cable screen.
For more information, see the PRO2 Live Audio System - Set Up Guide (part number
DOC04-DL2SUG1).
Audio connections
This section gives details of the audio connections of the PRO2 Control Centre.

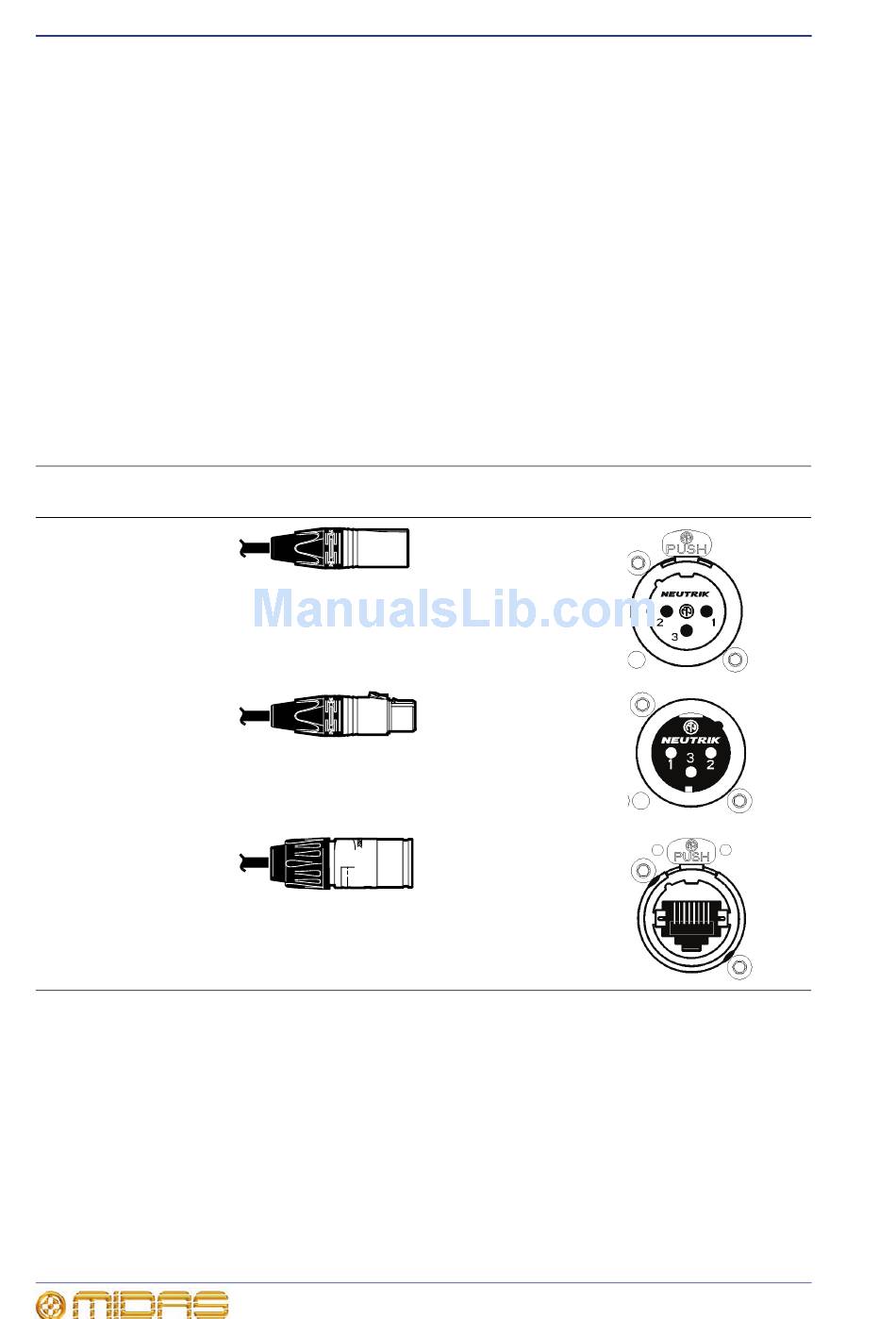

Table 1: Connector pinouts
Connector on rear
panel
Male XLR chassis
connector (output)
Female XLR chassis
connector (mic input)
Ethernet EtherCon®
connector
Example of plug
Chapter 4: Setting Up The System
Pinouts
1 = ground
2 = hot
3 = cold
1 = ground
2 = hot
3 = cold
N/A
Example of socket
