VLAN-VPN Configuration Example

Transmitting User Packets through a Tunnel in the Public Network by Using
VLAN-VPN
Network requirements
As shown in
the users to the servers through the public network.
PC users and PC servers are in VLAN 100 created in the private network, while terminal users and
terminal servers are in VLAN 200, which is also created in the private network. The VLAN VPN
connection is established in VLAN 1040 of the public network.
Switches of other vendors are used in the public network. They use the TPID value 0x9200.
Employ VLAN-VPN on Switch A and Switch B to enable the PC users and PC servers to
communicate with each through a VPN, and employ VLAN-VPN on Switch A and Switch B to
enable the Terminal users and Terminal servers to communicate with each other through a VPN.

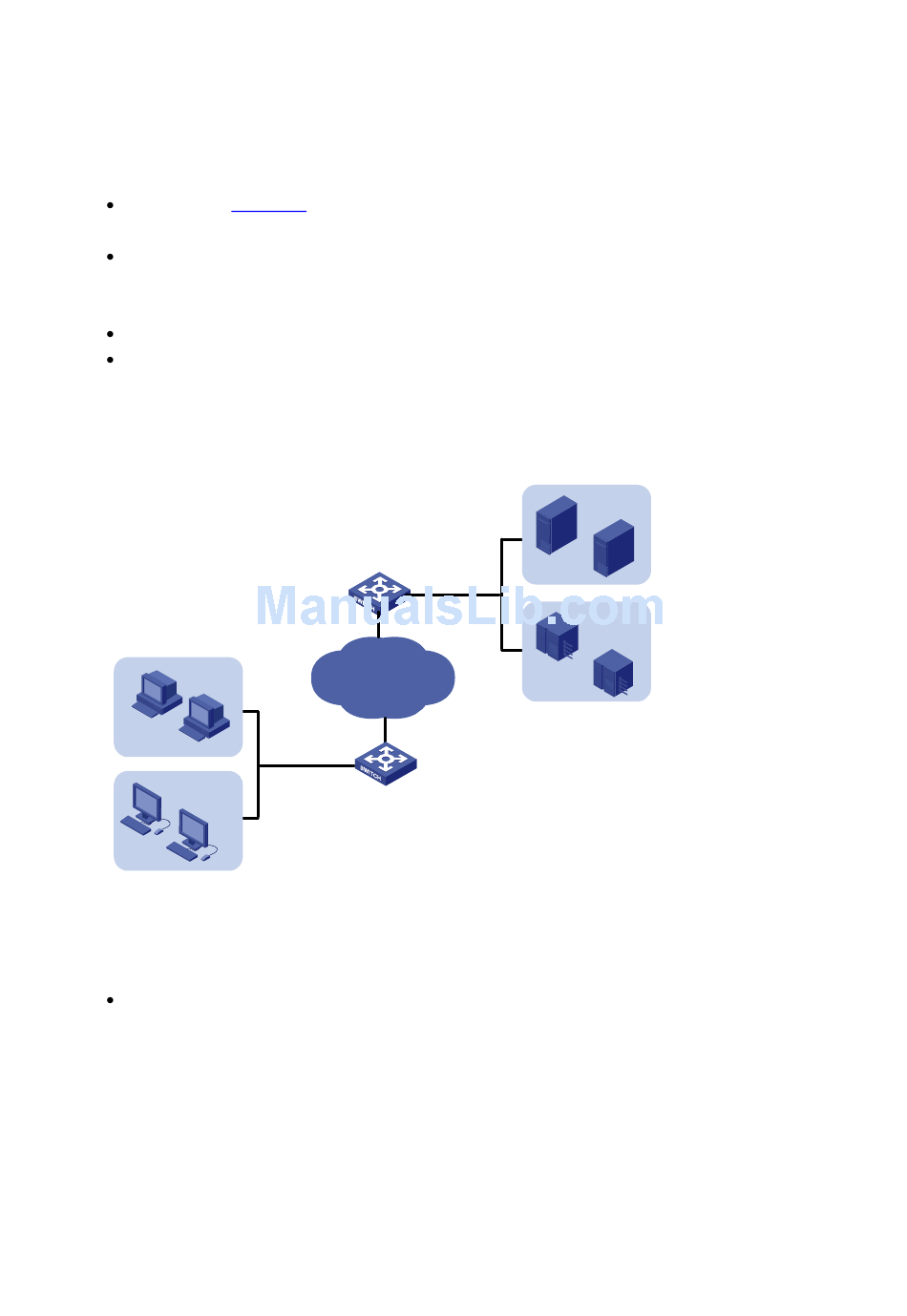

Figure 1-4 Network diagram for VLAN-VPN configuration
PC User
VLAN 100
VLAN 200
Terminal User
Configuration procedure
Configure Switch A.
# Enable the VLAN-VPN feature on GigabitEthernet 1/0/11 of Switch A and tag the packets received on
this port with the tag of VLAN 1040 as the outer VLAN tag.
<SwitchA> system-view
[SwitchA] vlan 1040
[SwitchA-vlan1040] port GigabitEthernet 1/0/11
[SwitchA-vlan1040] quit
[SwitchA] interface GigabitEthernet 1/0/11
[SwitchA-GigabitEthernet1/0/11] vlan-vpn enable
[SwitchA-GigabitEthernet1/0/11] quit
Figure 1-4, both Switch A and Switch B are the WX3000 series devices. They connect
SwitchB
GEth1/0/22
TPID=0x9200
VLAN 1040
GEth1/0/12
GEth1/0/11
SwitchA
PC Server
GEth1/0/21
Terminal Server
1-5
VLAN 100
VLAN 200
