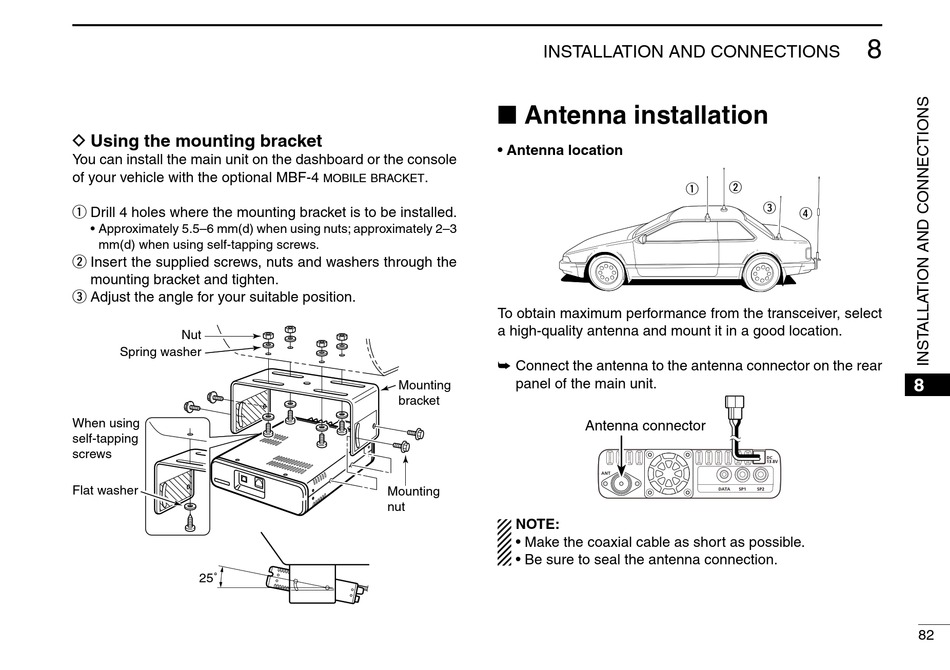

D Using the mounting bracket
You can install the main unit on the dashboard or the console
of your vehicle with the optional MBF-4
Drill 4 holes where the mounting bracket is to be installed.
q
• Approximately 5.5–6 mm(d) when using nuts; approximately 2–3
mm(d) when using self-tapping screws.
Insert the supplied screws, nuts and washers through the
w
mounting bracket and tighten.
Adjust the angle for your suitable position.
e
Nut
Spring washer
When using
self-tapping
screws
Flat washer
25˚

■ Antenna installation

• Antenna location
.
mobile bracket
To obtain maximum performance from the transceiver, select
a high-quality antenna and mount it in a good location.
➥
Mounting
bracket
Mounting
nut
INSTALLATION AND CONNECTIONS
q
Connect the antenna to the antenna connector on the rear
panel of the main unit.
Antenna connector
NOTE:
• Make the coaxial cable as short as possible.
• Be sure to seal the antenna connection.
8
w
e
r
