7.2 Supplementary Information About the 144-Pin RFP PowerPAD™ Package
7.2.1 Standoff Height
This section highlights a few important details about the 144-pin RFP PowerPAD™ package. Texas
Instruments' PowerPAD Thermally Enhanced Package Technical Brief
should be consulted before designing a PCB for this device.
As illustrated in
0.150 mm) is measured from the seating plane established by the three lowest package pins to the lowest
point on the package body. Due to warpage, the lowest point on the package body is located in the center
of the package at the exposed thermal pad.
Using this definition of standoff height provides the correct result for determining the correct solder paste
thickness. According to TI's
SLMA002), the recommended range of solder paste thickness for this package is between 0.152 mm and
0.178 mm.
Standoff Height

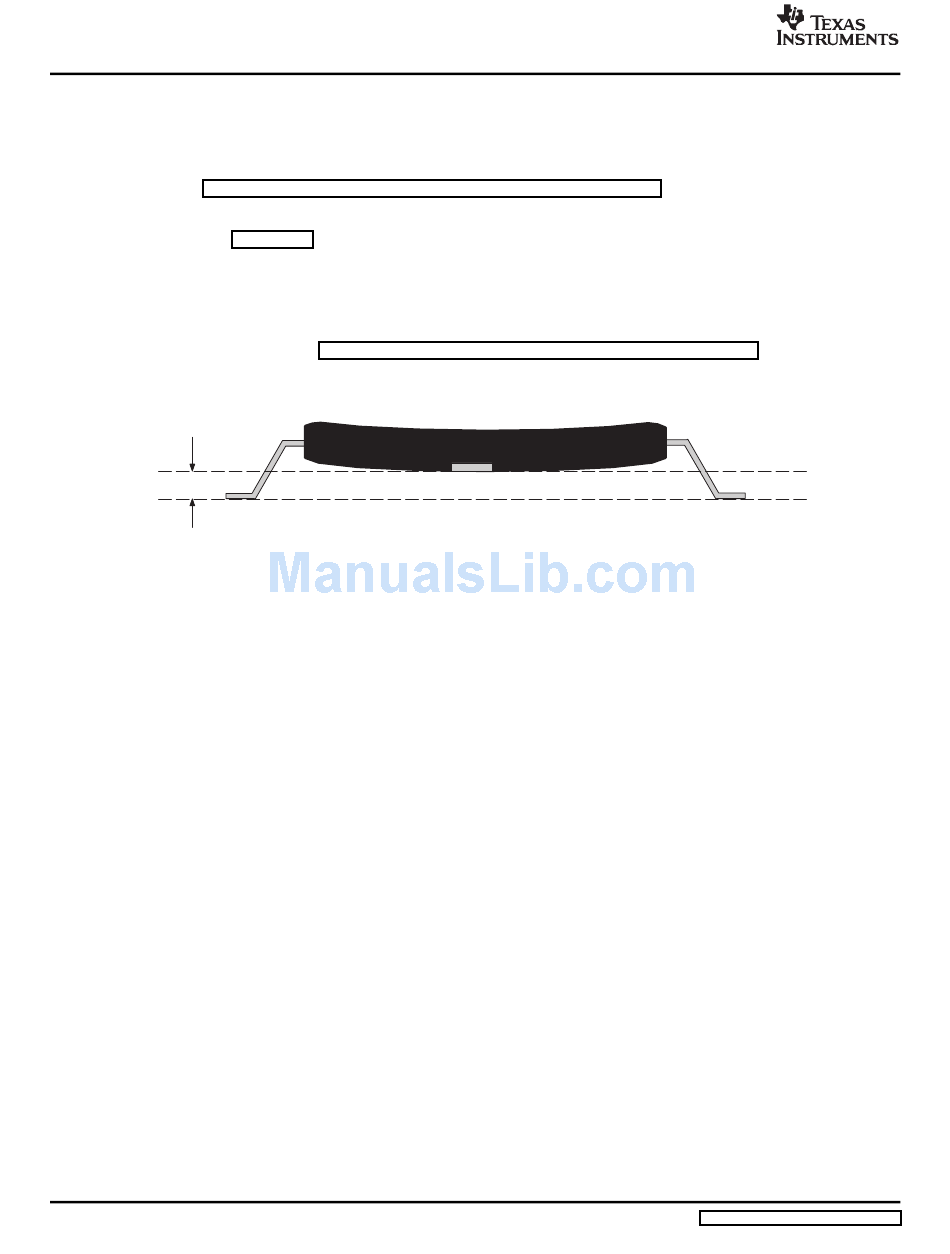

Figure 7-1. Standoff Height Measurement on 144-Pin RFP Package
