Bottom Range - Simrad ES70 - REFERENCE MANUAL REV A Reference Manual

Bottom Range

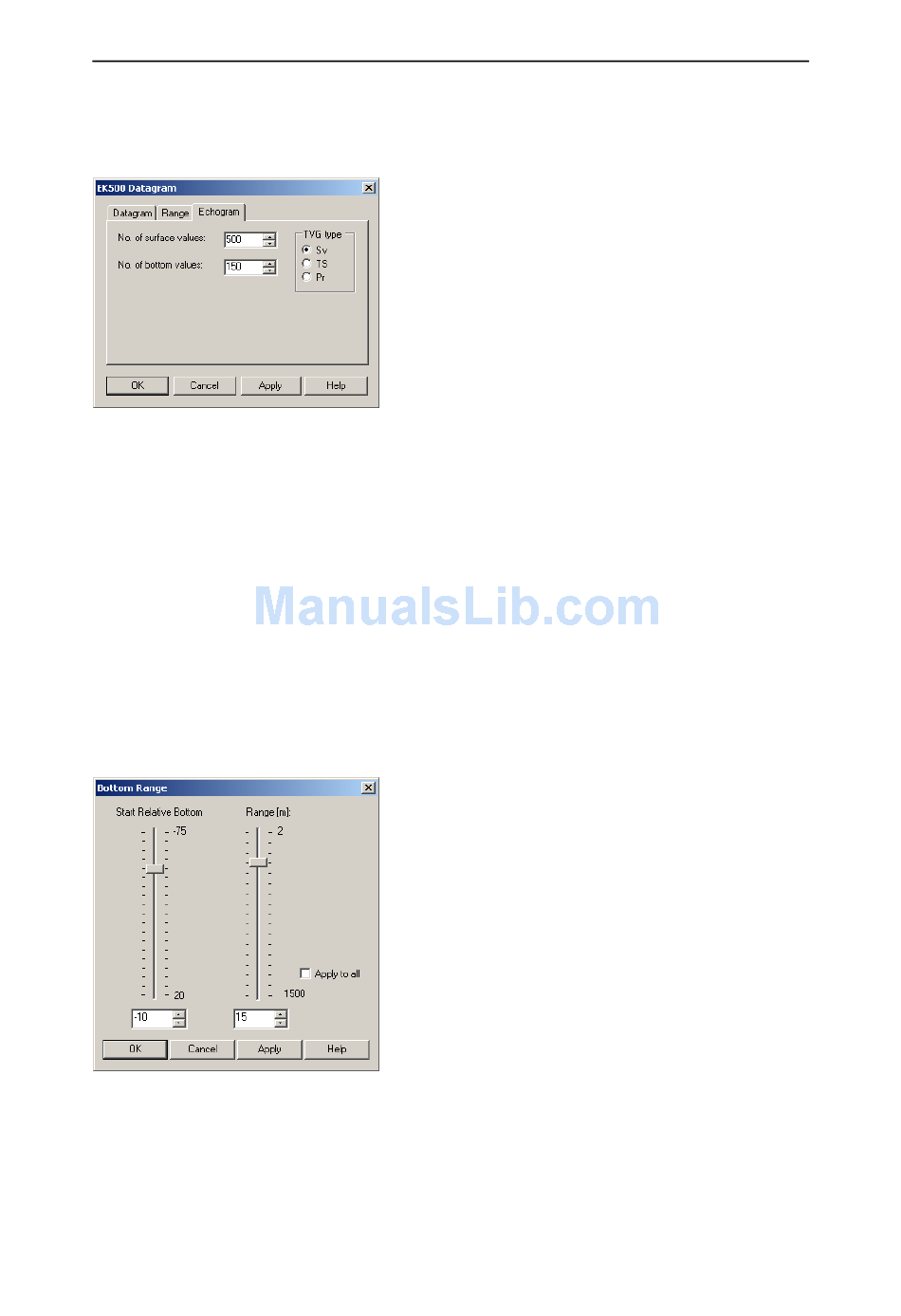

The dialog is opened from the
Bottom Range
dialog.
Purpose
This dialog is used to specify the vertical depth range for bottom related echogram data
exported to peripheral devices, or saved to file.
338106/A
Parameters
•
No. of Surface Values
echogram samples to export in the pelagic part
of the datagram.
For correct output to the
parameter to 500.
•
No. of Bottom Values
echogram samples to export in the bottom part
of the echogram.
For correct output to the
parameter to 200.
• : Specify the TVG type for the data
TVG Type
in the datagram.
Echogram
button in the
Bottom Range
Description
The parameters defined in this dialog are only
implemented for bottom related echogram data
exported by the ES70. Similar parameters for the
echogram view are defined by the
buttons on the
Range
Functions and dialogs
: Select the number of
system, set this
Olex
: Select the number of
system, set this
Olex
EK500 Datagram
and
Range
menu.
Main
Start
