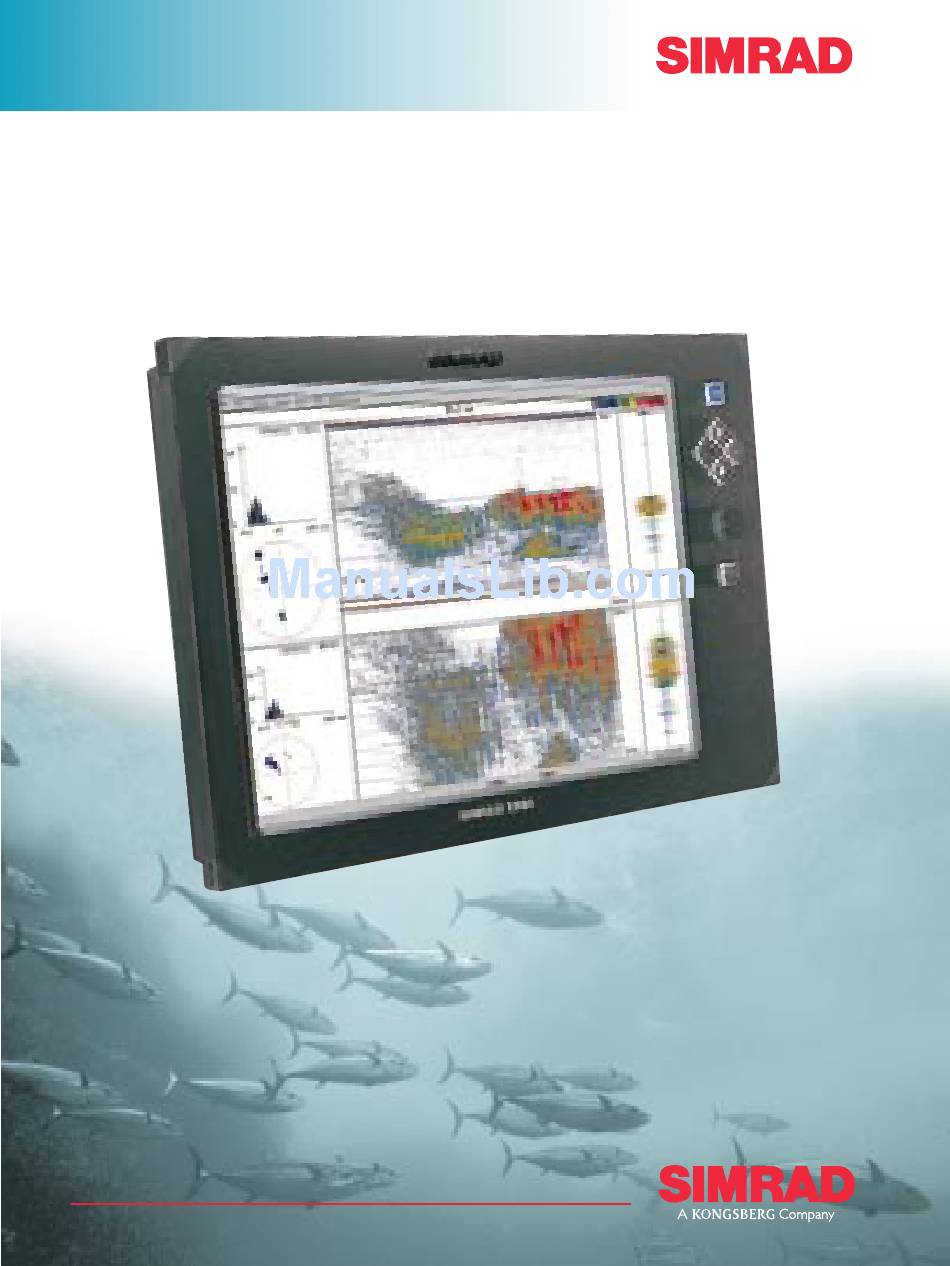

- Page 1 ECHOSOUNDER Simrad ES60 Series Advanced multipurpose Echosounder with single, dual or split beam A L W A Y S T H E F O R E F R O N T T E C H N O L O G Y...
- Page 2 New features are introduced into the high performance Simrad ES60 range of professional fish finders. The Simrad ES60 is designed for the fishermen, using the latest technology available. High performance at any depth, easy operation and remote control are key elements in our design.
- Page 3 Depth, transducer coverage area and Gain Large echogram memory The large memory capacity in the Simrad ES60 allows many hours of echograms to be stored. The recorded data can be replayed at high speed and presented in a few minutes.
- Page 4 True fish size with split beam technology The Simrad ES60 Split Beam is a calibrated sounder that shows echo colors in true fish sizes. The fish plot shows single fish targets for distinguishing fish from bait. 1. Fish Plot 4. Echogram Fish Size histogram The fish plot presentation is a single fish...
- Page 5 A Simrad 1kW transducer compares often to transducers needing up to 3kW to perform equally. The importance is how much energy is transmitted into the water from the transducer and not how much energy is pumped into the transducer for there to be converted mostly to heat.
- Page 6 Gain dialog/color threshold Operation dialog box Main menu 15” high resolution, non-flickering color LCD Range dialog monitor Split beam gives color bars with Echogram dialog true fish size Echo trace Fish loupe/A-Scope diagram Rugged housing The LCD display designed for can be bulkhead the marine mounted or flush...
- Page 7 Simrad CM60 - New Automatic seabed mapping system with chart plotting function and bottom discrimination The Simrad CM60 is a 2 and 3 dimensional chart mapping system. Connected to the ES60 you can make detailed seabed maps with bottom data. It will give you a full overview that provides more accurate, effective, profitable and responsible fishing.
- Page 8 Min. 5 meter. Max 5,000 meters 18kHz:Variable up to 2kW Bottom discrimination data to Manual, auto start, auto range 27kHz:Variable up to 3kW Simrad CM60 chartplotter Phasing: Manual or auto. 38kHz:Variable up to 4kW Data input (NMEA 0183) 50kHz:Variable up to 2kW...
