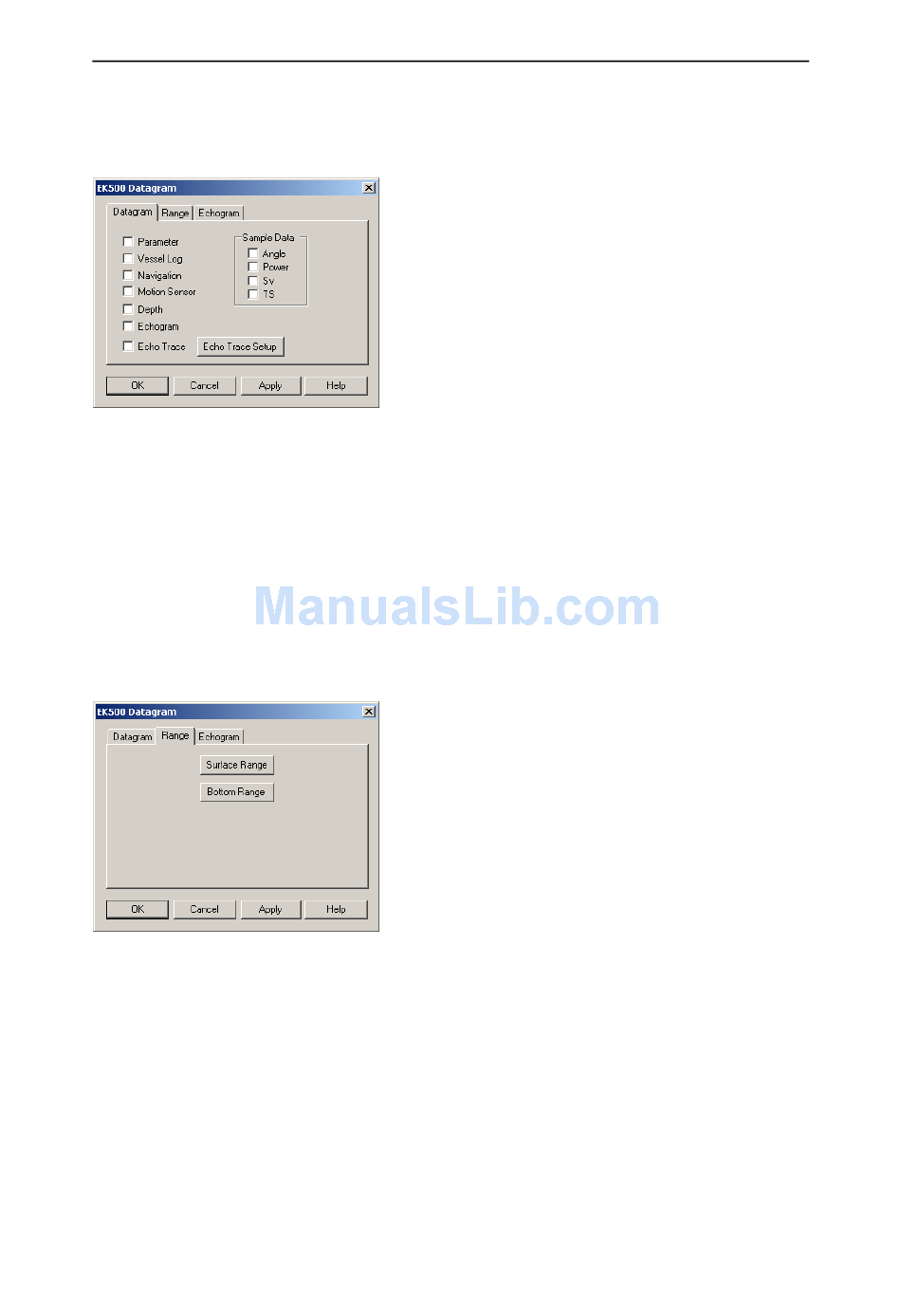

EK500 Datagram; Range
Use this tab to specify the range for the
datagrams.
EK500 Datagram; Echogram
Use this tab to specify the number of surface and bottom values for the Echogram
datagrams.
182
Parameters
• : A list of all available output
Datagram
datagrams are listed. Click to enable individual
outputs.
For correct output to the
following datagrams must be enabled:
– Parameter
– Echogram
• : Click to include angle, power,
Sample Data
sound velocity and target strength data.
• : Click this button to specify
Echo Trace Setup
parameters for the
button opens the
Single Target Detection
→ Single Target Detection on page 185.
,
Echogram Echo Trace
Parameters
• : Click this button to choose the
Surface Range
surface range for the datagrams. The button
opens the
Surface Range
→ Surface Range on page 184.
• : Click this button to choose the
Bottom Range
bottom range for the datagrams. The button
opens the
Bottom Range
→ Bottom Range on page 183.
system, the
Olex
datagram. The
Echo Trace
dialog.
and
Sample Data
dialog.
dialog.
