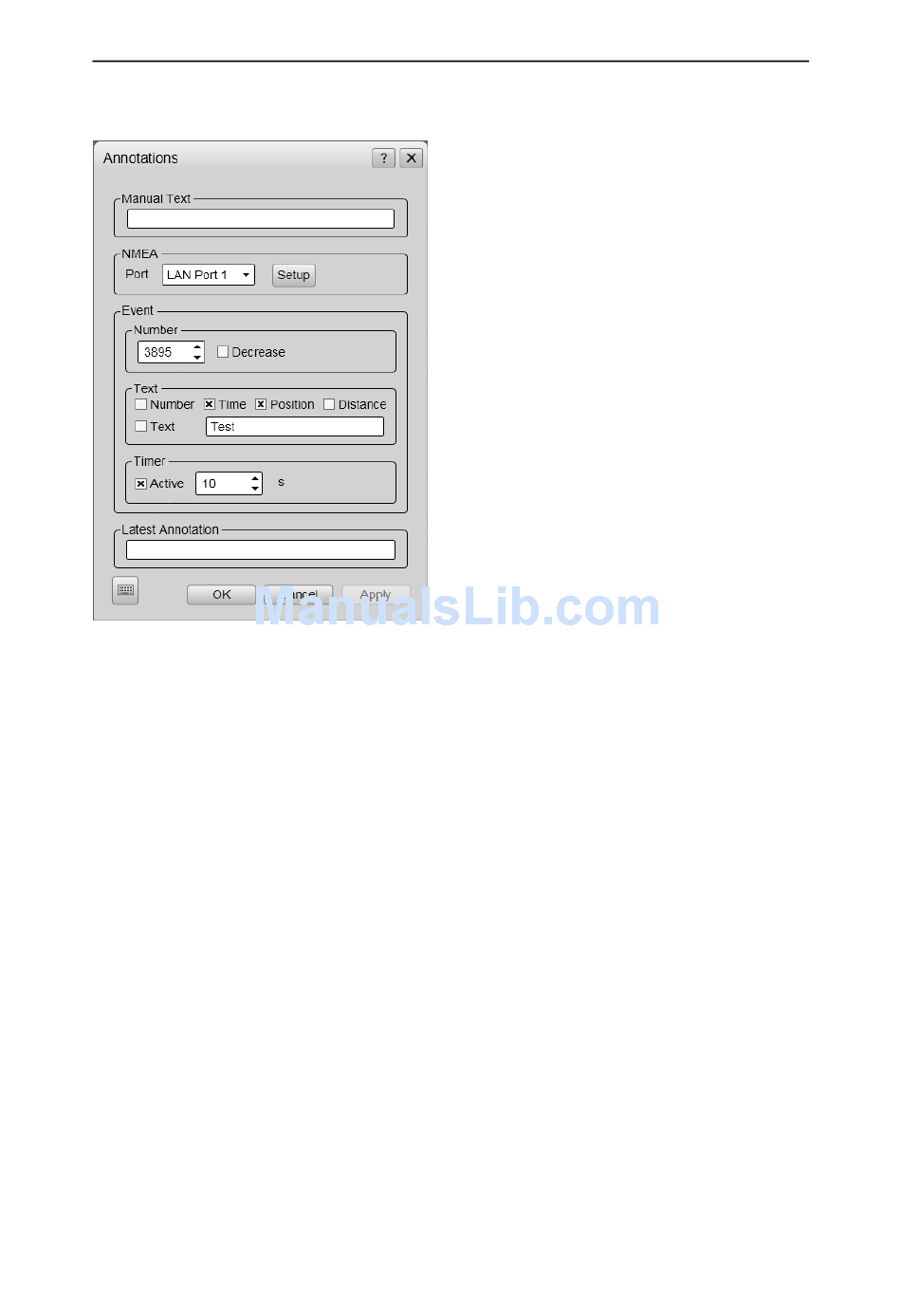

Parameters
• : Enter a free text string. The text is written to the echogram once you
Manual Text
click or
Ok Apply
If you do have a keyboard connected to your ES70 system, click the
at the bottom of the dialog to open an on-screen keyboard.
• : This function enables NMEA Annotation datagrams to be imported on the
NMEA
chosen port.
In the box, select interface port for the datagrams. Note that this selection must
Port
match the actual wiring made during the system installation.
Click to set up the communication parameters for the chosen port. Depending
Setup
on the port you have chosen, the
For information on port setup, see LAN Port Setup on page 169 and Serial Port Setup
on page 170.
138
at the bottom of the dialog.
LAN Port Setup
Description
Several different annotation types may be
added to the echogram. The annotations
defined are stored with the raw data as
annotation datagrams. They are displayed
on the echogram if this feature is enabled
in the dialog. Annotations can
Echogram
only be added during normal operation.
See Echogram on page 158 for more
information.
or
Serial Port Setup
button
Keyboard
dialog will open.
