Bottom Range - Simrad ES60 - REFERENCE MANUAL REV H Reference Manual

Fish finding echo sounder

Table of Contents

Simrad ES60

Bottom Range

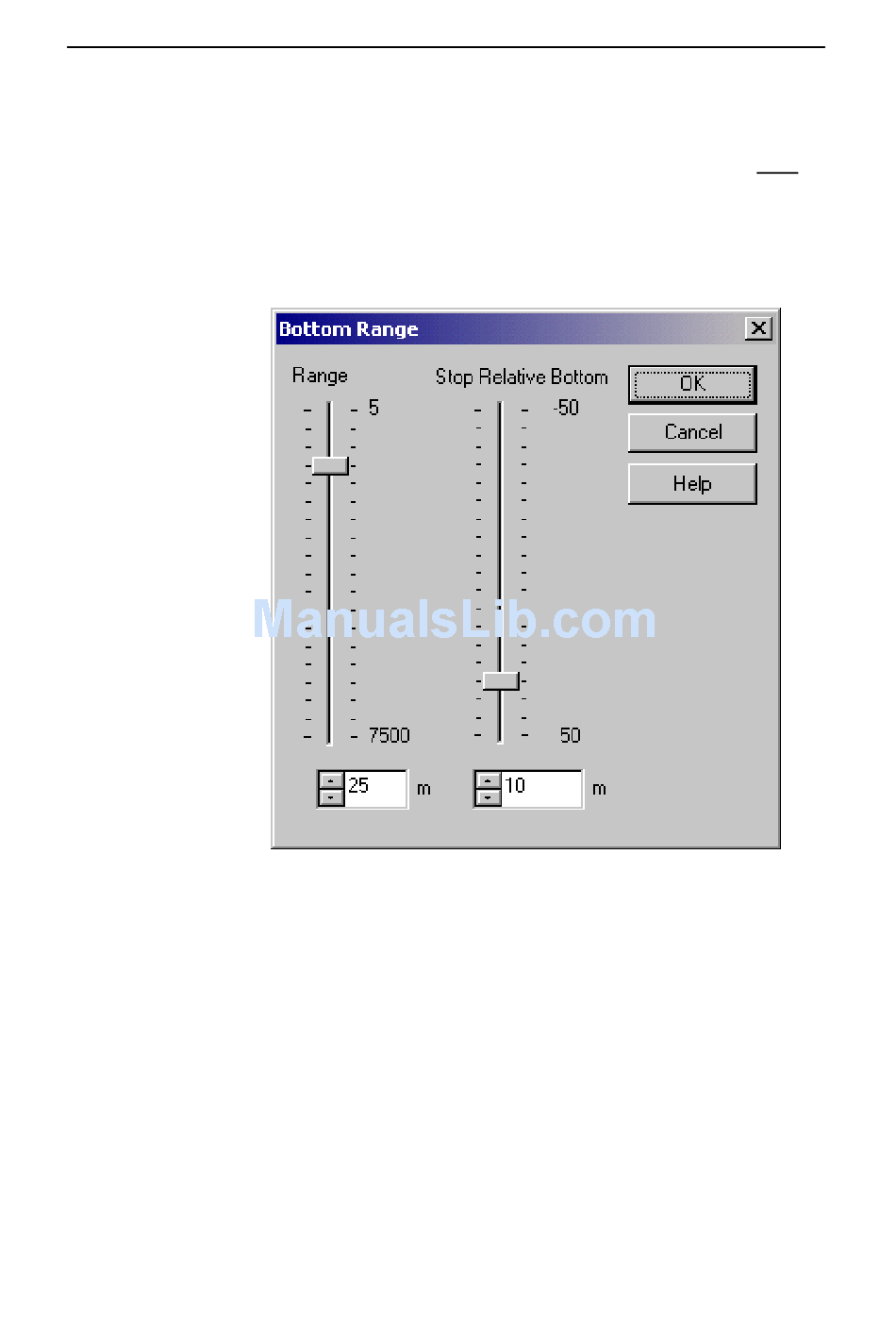

The Bottom Range dialogue box opens if you click the right

mouse button in the range field in the Echogram and Range

view while operating with a Bottom Range echogram.

The different echograms are explained in the Echogram

dialogue box.

Range - This parameter controls the vertical depth range across

the echogram.

Stop Relative Bottom - This parameter controls the depth offset

at the lower boundary of the echogram relative to the detected

bottom; positive values downwards.

Note that you can also change the range using the mouse wheel.

This is described in the Echo frames chapter.
