Simrad ES70

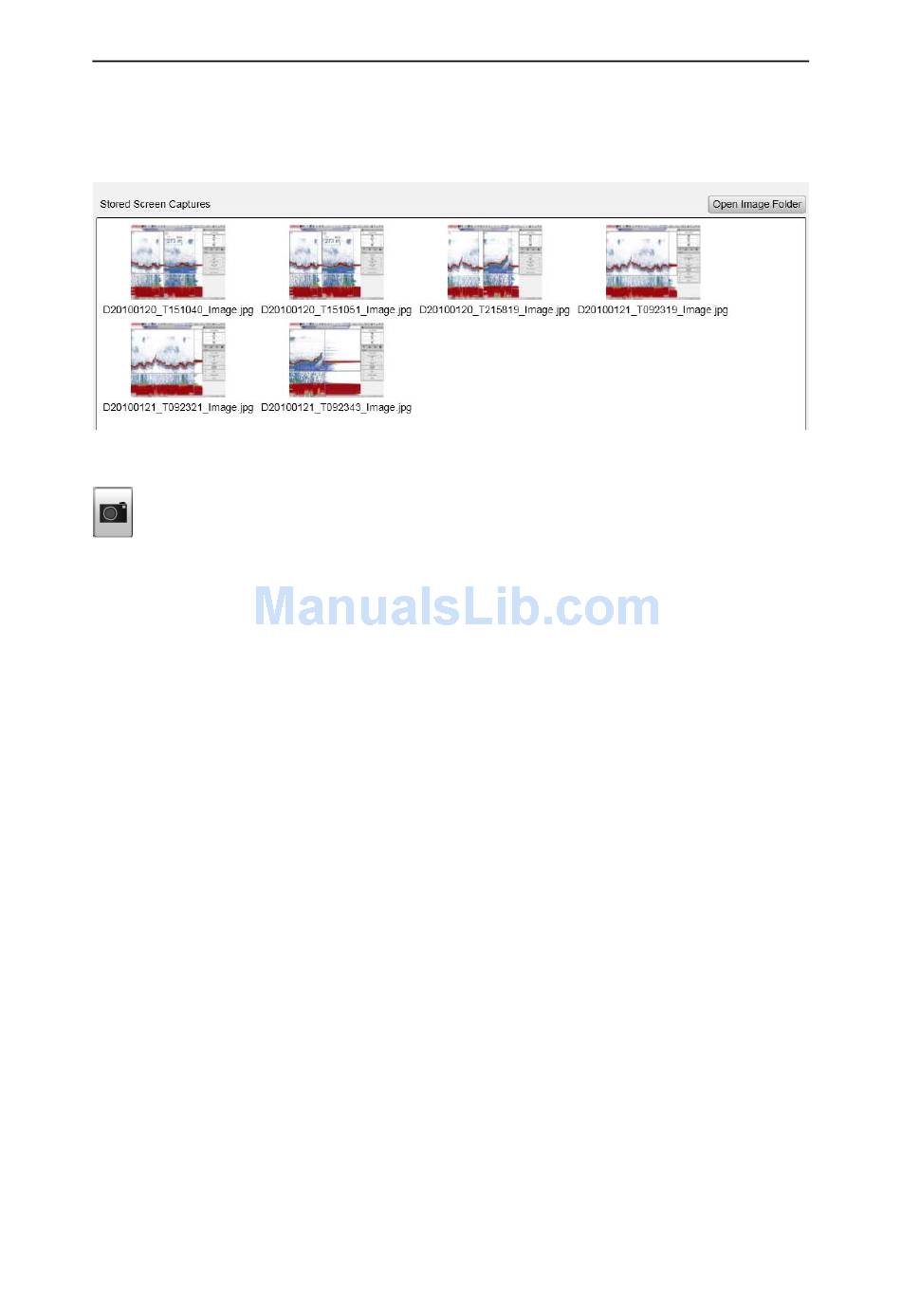

Figure 12 Screen capture browser
To save an echogram, click the
button on the
.
Screen Capture
Title Bar
To view the recorded image, click
on the
to open the image
Screen Capture
Taskbar
browser.
Click
to open the operating system folder containing the files. This
Open Image Folder
folder offers operating system functionality to provide renaming, copying, printing
and deleting files.
60
338106/A
