Add Serial Port; Port Monitor - Simrad ES70 - REFERENCE MANUAL REV A Reference Manual

Parameters
• : This text fields identifies the current communication port on the computer.
COM port
You can not change this information.
• : Specify the baudrate for the serial communication. Standard baudrate
Baud rate
defined for NMEA communication is 4800 baud.
• : Specify the number of data bits for the serial communication. Standard
Data bits
number of data bits defined for NMEA communication is 8.
• : Specify the parity for the serial communication. Standard parity defined for
Parity
NMEA communication is None.

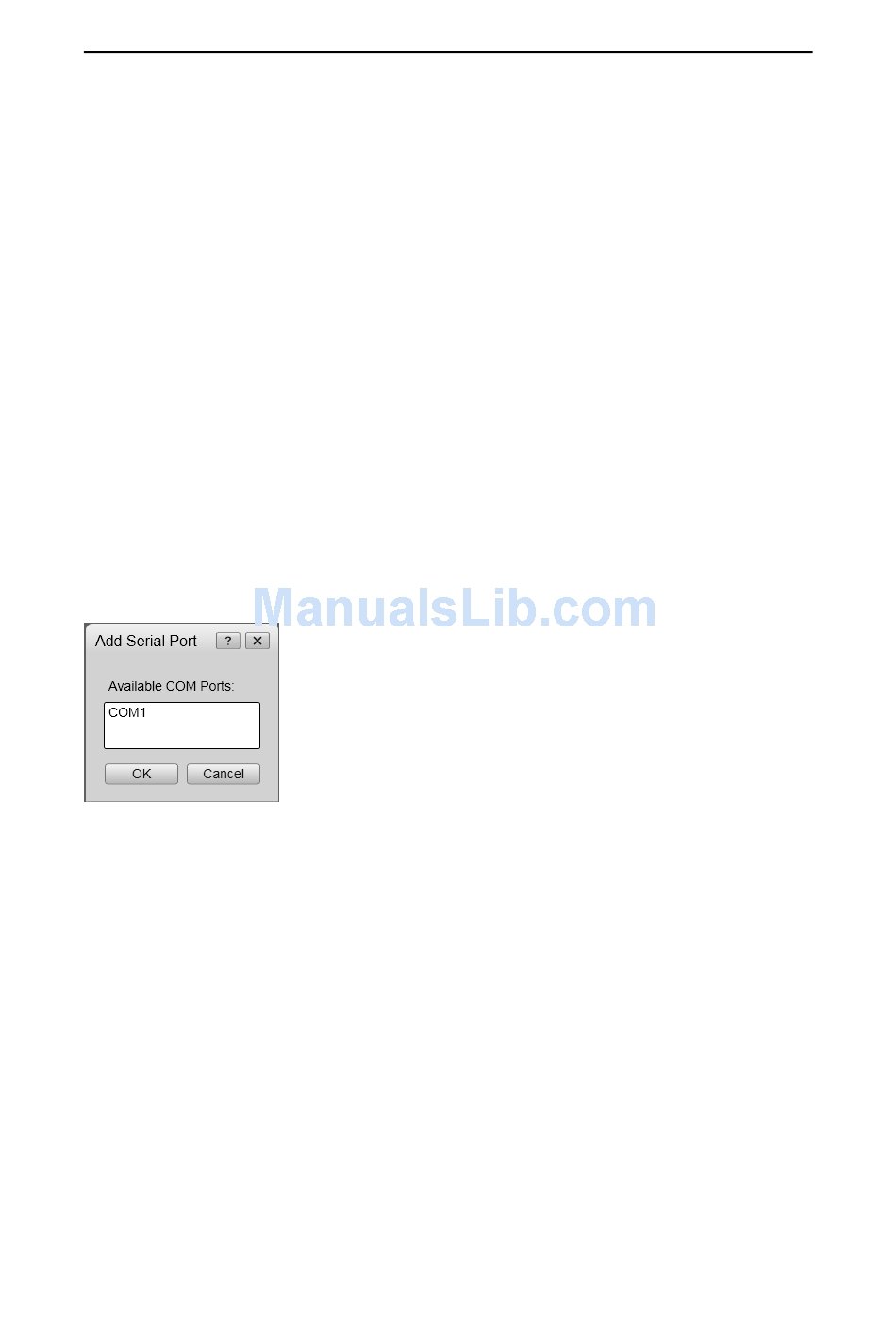

Add Serial Port

The dialog is opened from the
Add Serial Port
Purpose
The purpose of the
Add Serial Port
port) on the ES70 computer to use for interface purposes.
Related topics
• I/O Setup on page 150

Port Monitor

The dialog is opened from the
Port Monitor
dialog.
Purpose
The dialog allows you to study the communication stream on the chosen
Port Monitor
serial or LAN port.
338106/A
Add
dialog is to allow you to put a free serial port (COM
Description
The automatically searches the ES70 computer
Add Serial Port
to find available serial ports. Those found are listed. To select
a port, click once on its name, and then click
Port Monitor
Functions and dialogs
button in the
Port Management
button in the
Port Management
dialog.
.
OK
171
