Simrad ES70
a Click

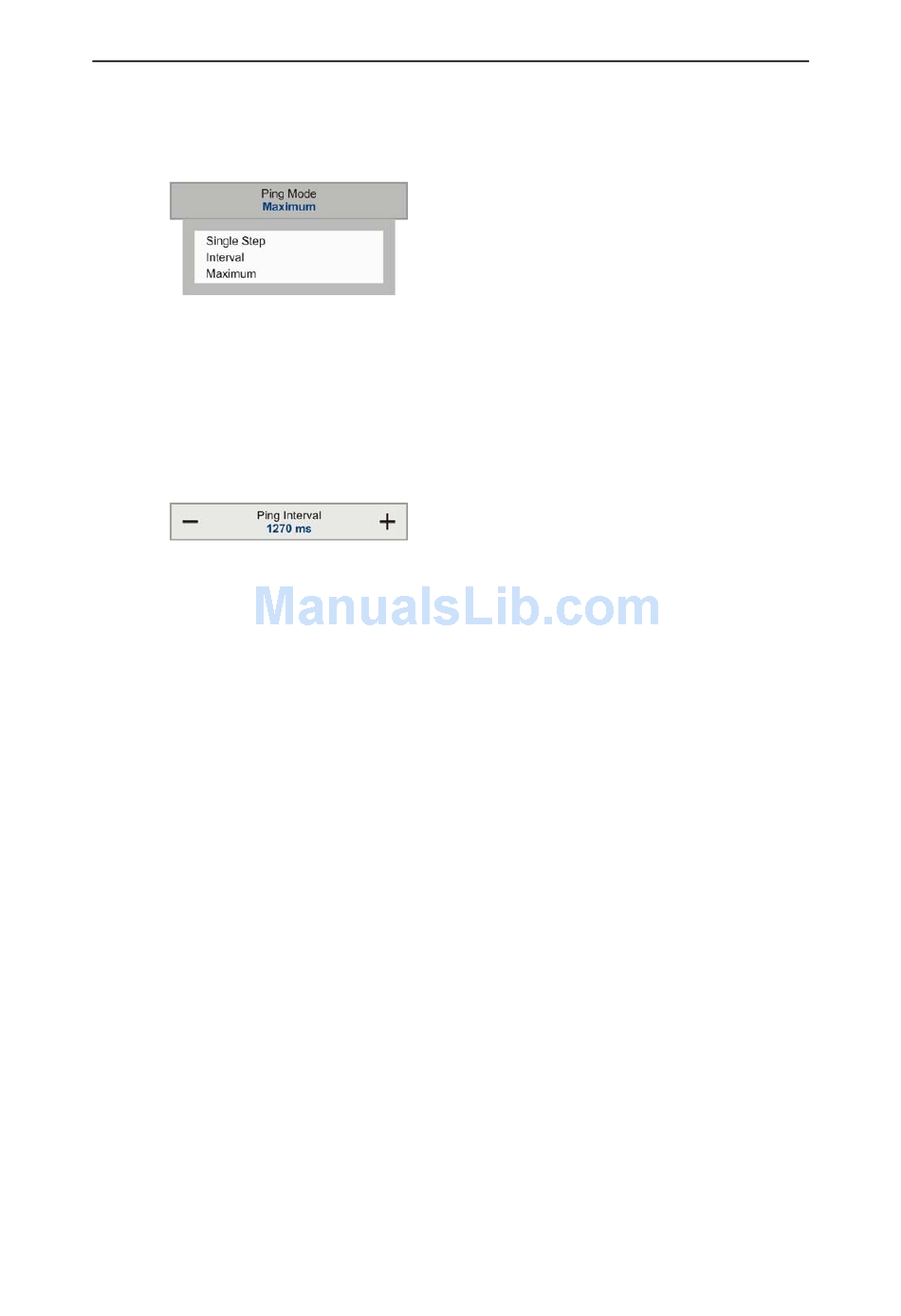

Ping Mode
This will make the ES70 ping with maximum speed. The time between each
ping is automatically determined by the current depth and pulse duration.
→ Ping Mode on page 119
4 How to define a ping interval:
a Click
Ping Mode
b Click
Ping Interval
→ Ping Interval on page 120
5 How to transmit single pings:
Click
a
Ping Mode
To initiate a single ping, click once on the right hand icon on the
b

How to save an echogram

Two ways to save echograms
• You can use the
Screen Capture
button the current echogram is saved as a JPG file.
The advantage with this method is that the files are small individual images and easy
to scroll through. However, the images are fixed, what was recorded in the first place
can not be altered.
• You can use the
Record
data sequences.
Every time you initiate this function you start a recording process which saves the
sequence of raw data from the transceiver. This sequence can be replayed later.
The advantage with this function – saving raw data sequences – is that all the
information presented during the recording are saved. This means that you can change
parameters like TVG, range, etc. during the playback. However, the files are large,
and playback may be a time consuming task.
→ How to save raw echogram data on page 66
How to save single echograms
Click the
1
Screen Capture
64
, and select Maximum.
, and select Interval.
, and select the time (in milliseconds) between each ping.
, and select Single Step.
button on the
button on the
Title Bar
button on the
Title Bar
. Every time you click this
Title Bar
, or on the menu, to save raw
Display
to save the current echogram.
button.
Ping
