White line

The white line is an extra thick white line that is added to just below the bottom. The
white line will not remove information, it will simply "push" the information further
down in order to make the bottom easier to see.
Most users find it practical to use the white line all the time. If the echo sounder should
loose bottom track – for example due to the appearance of a large school of fish – you
will immediately see this on the white line.
The white line is enabled in the
→ Echogram; Lines tab on page 159

Hardness line

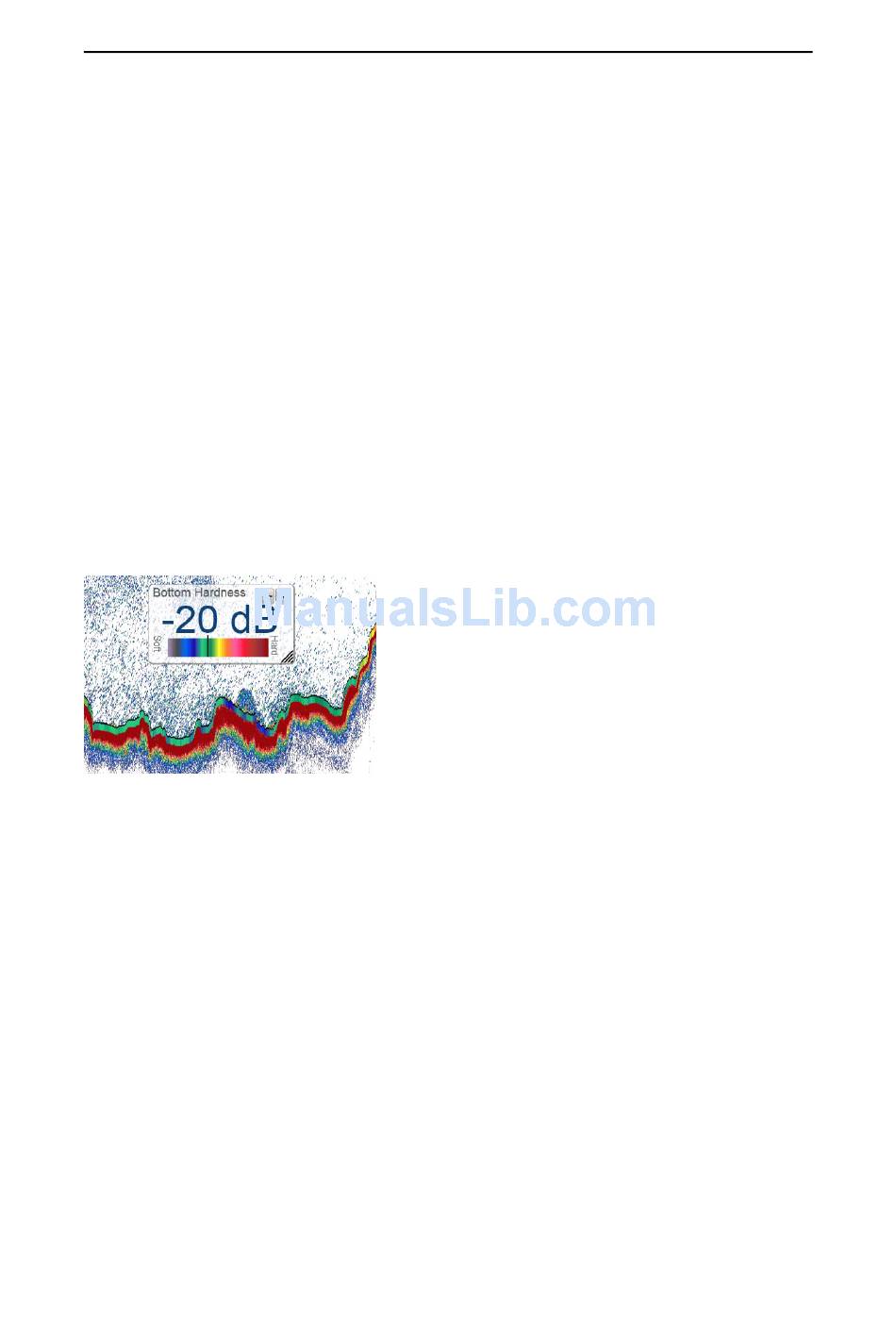

The hardness line is an extra thick colour coded line that is added to just below the
bottom. The line will not remove information, it will simply "push" the information
further down in order to make the bottom easier to see.
212
dialog.
Echogram
The colour coding contains the information about
the bottom hardness. The colour scale used is the
same as in the
→ Bottom Hardness information pane on page 52
The white line is enabled in the
→ Echogram; Lines tab on page 159
information pane.
Bottom Hardness
Echogram
dialog.
