Note
It is very important that you set up the ES70 to operate with the correct transducer(s).
Related topics
• How to install a frequency channel on page 82
• How to modify an IP address on page 84
Frequency channels
Each transceiver contains one or more frequency channels. The phrase is used to
identify the combination of a transceiver, transducers and the frequencies offered. Split
beam transceivers contain only one channel each. The upper part of the
dialog displays a list of frequency channels which either are, or have been,
Installation
installed on the ES70. For each channel, a status label is provided.
• : The frequency channel is already in use, probably by another echo sounder on
Busy
the same network. You can not connect to this channel.
• : This frequency channel is connected to you ES70 system.
Installed
• : This frequency channel can not be used.
Lost

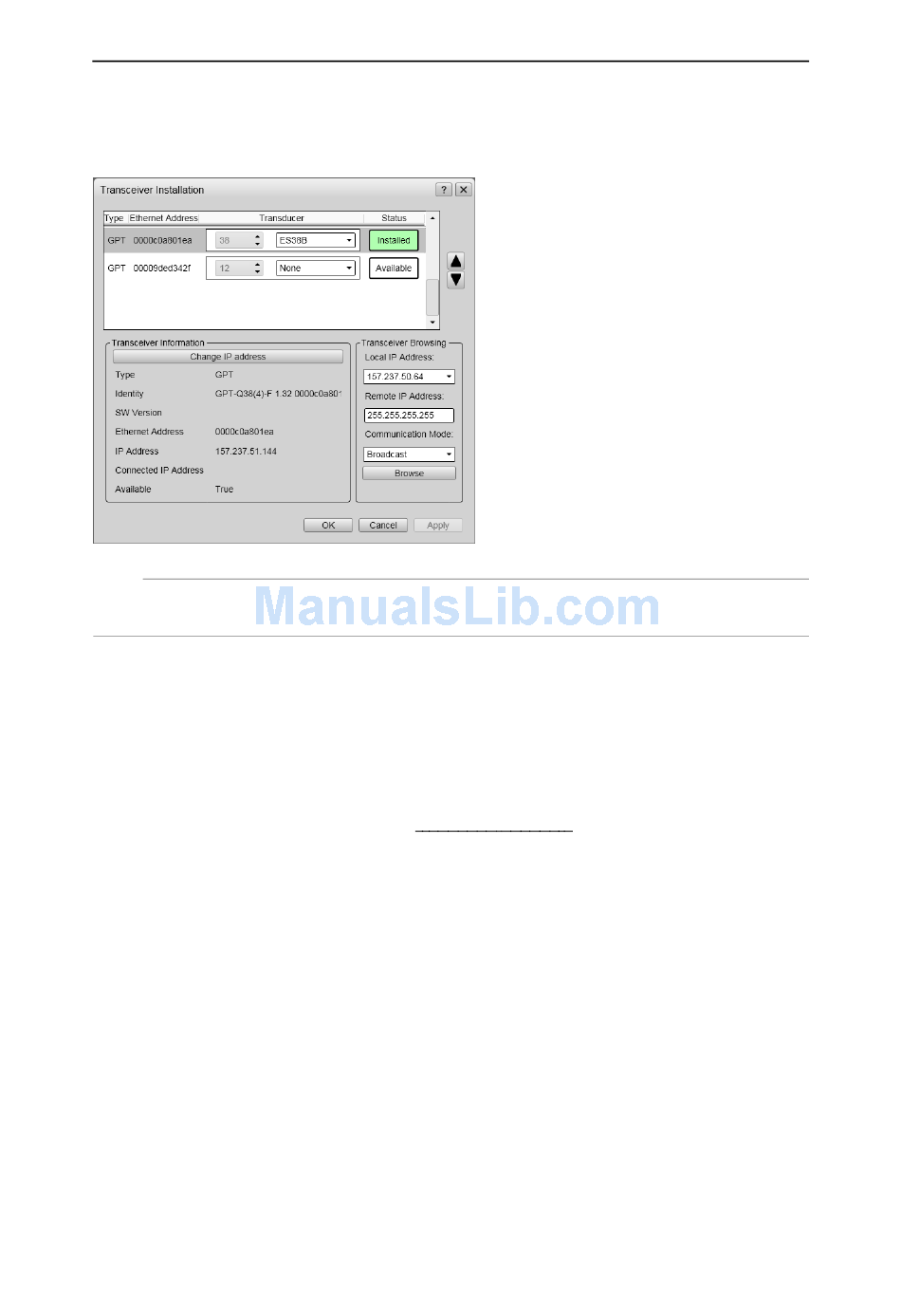

Transceiver Installation; Channel list
• : This is the type of transceiver currently available on the network.
Type
means General Purpose Transceiver.
GPT
If you click on a frequency channel to select it, additional information about the
channel and the transceiver is provided in the
the channel list.
154
Description
This dialog controls installation and
disconnection of transceivers. Every
time this dialog is opened, the ES70
software automatically performs a
search on the Ethernet network for
transceivers. You can also initiate a
search by clicking the
To connect to an available frequency
channel, select the correct transducer
on an available channel.
Transceiver Information
button.
Browse
Transceiver
field below
